Denon AVR-X7200W Quick Start Guide

3
Important: External Antennas
The removable external antennas are required for both
Bluetooth and Wireless network connectivity. Please make
sure to connect the antennas before attempting to use the
Bluetooth or Wi-Fi features of the AVR-X7200W.

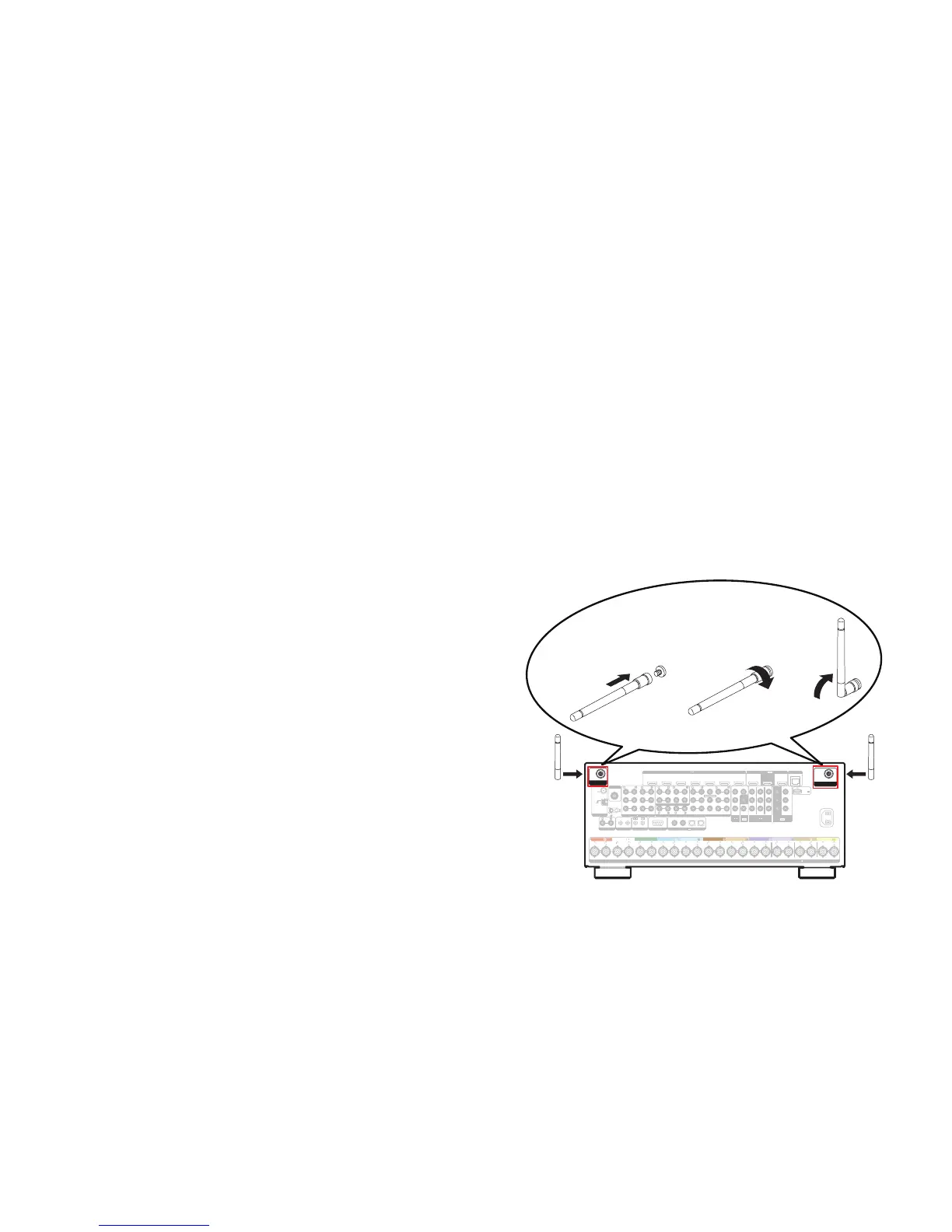

n Connecting the external antennas for
Bluetooth/Wireless connectivity
For each of the two antennas:
1) Place the antenna evenly over the antenna terminal
located at the upper left or right corner of the rear panel.
2) Turn the antenna clockwise until it is fully connected. Do
not over tighten.
3) Rotate the antenna upwards for the best possible
reception.
1 CBL/SAT
PHONO
2 DVD
2 DVD 1 CBL/SAT
3 Blu-ray 6 AUX2 7 CD
2 CD 1
TV
AUDIO
6 MEDIA PLAYER
4 GAME
5 MEDIA PLAYER
2 DVD
12
3 Blu-ray
5 CD
4 GAME
1 CBL/SAT 1 CBL/SAT
2 DVD
2 DVD3
Blu-ray 4 GAME
RS-232C
7.1CH IN
REMOTE CONTROL TRIGGER OUT
PRE OUT
(ASSIGNABLE) (ASSIGNABLE)
VIDEO COMPONENT VIDEO VIDEO COMPONENT VIDEO
ARC
MONITOR1
MONITOR/ZONE3 ZONE2
MONITOR/ZONE3
ZONE2
ZONE23 Blu-ray
MONITOR2
COAXIALOPTICAL
STRAIGHT CABLE
IR
DC12V 150mA MAX.
ZONE2ZONE3
FRONT
FRONT
SURROUND SURROUND CENTER SUBWOOFER
SURROUND BACK FRONT WIDE CENTER
HEIGHT1
SURROUND BACKHEIGHT2
1
SUBWOOFER
AUDIO
(ASSIGNABLE)
(ASSIGNABLE)
HDMI HDMI
AUDIO
DIGITAL AUDIO
(ASSIGNABLE)
2
ASSIGNABLE ASSIGNABLE ASSIGNABLE
SPEAKERS
IMPEDANCE : 4㹼16 Ȑ
1 CBL/SAT
AC IN
NETWORK
Y
P
B/
C
B
PR/
C
R
5V/1A
Bluetooth
/
Wi-Fi
ANTENNA
Bluetooth
/
Wi-Fi
ANTENNA
CENTER SURROUND SURROUND BACK SURROUNDFRONT SURROUND BACK FRONT WIDE/HEIGHT2FRONT WIDE/HEIGHT2 HEIGHT1 HEIGHT1 FRONT
SIGNAL
GND
ANTENNA
FM
AM
Denon Link HD
qwe

Denon AVR-X7200W Specifications

General

Receiver type	Surround
Input sensitivity	200 mV
Audio output channels	11.2 channels
Signal-to-Noise Ratio (SNR)	102 dB
Power output per channel (1KHz@6 Ohm)	190 W
Power output per channel (20-20KHz@8 Ohm)	210 W
HDMI in	8
Audio (L/R) in	7
Composite video in	5
Digital audio optical in	2
Ethernet LAN (RJ-45) ports	1
Component video (YPbPr/YCbCr) in	3
12V trigger	Yes
Speakers connectivity type	-
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Optical drive included	No
Display	LCD
Product color	Black
Audio decoders	Dolby TrueHD, DTS 96/24, DTS-ES, DTS-HD Master Audio
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	780 W

Weight and Dimensions

Depth	427 mm
Width	434 mm
Height	196 mm
Weight	17800 g
