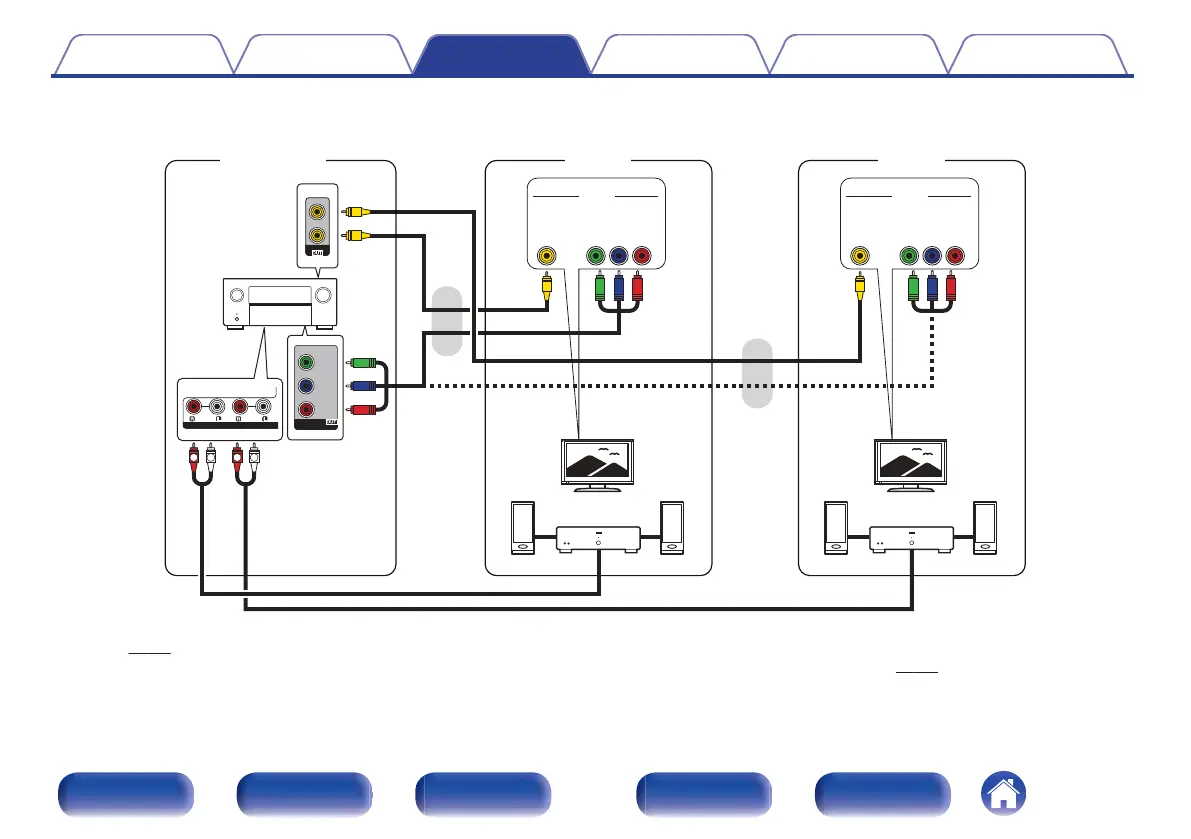

Connection 3 : Connection through the video output connector and external power amplifiers
The audio signals of this unit’s ZONE2 and ZONE3 audio output connectors are played on the ZONE2 and ZONE3 power amplifiers.
R
L
R
L
IN
VIDEO
VIDEO
COMPONENT VIDEO
YP
B PR
IN IN
VIDEO
VIDEO
COMPONENT VIDEO
YP
B PR
IN
AUX IN AUX IN
Power amplifier Power amplifier
PRE OUT
ZONE2 ZONE3
(ASSIGNABLE)
COMPONENT VIDEO
MONITOR
Y
P
B/
C
B
PR/
C
R
VIDEO
MONITOR/ZONE3
ZONE2
z
1
z
2
ZONE3
ZONE2
or
This unit
MAIN ZONE
or
z1
Set “ZONE2” or “ZONE3” for “Analog Video Out” - “Component” in the menu to enable use of the MAIN ZONE component video output terminal for ZONE2 or ZONE3.
(v
p. 204)
z2 Set “ZONE3” for “Analog Video Out” - “Video” in the menu to enable use of the MAIN ZONE video output terminal for ZONE3. (v
p. 204)
