RCD-M37 / RCD-M37DAB / D-E500 / D-M37

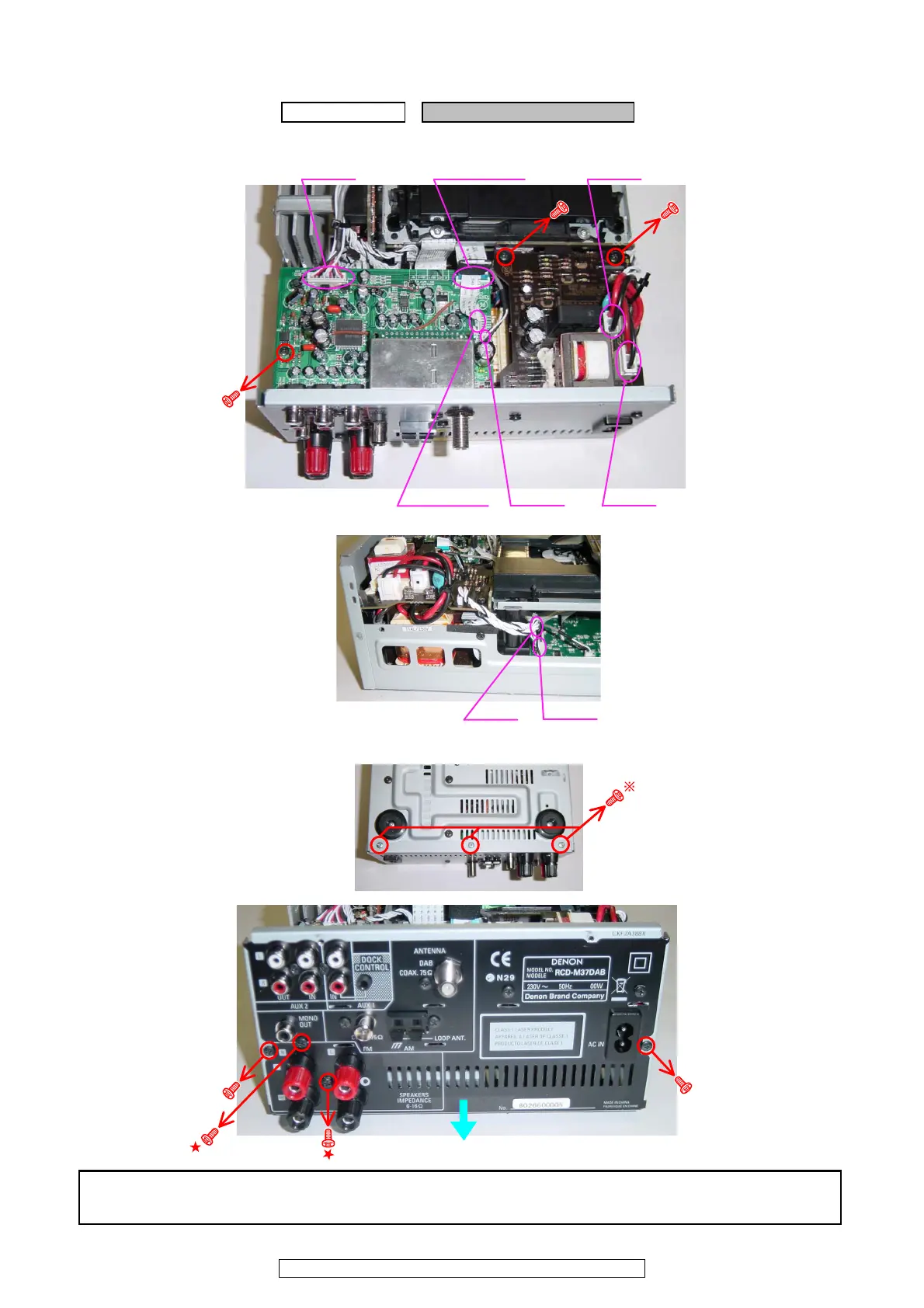

6. REAR PANEL SUB ASSY
(1) Disconnect the connector wires, FFC Cables and screws.（コネクタワイヤー、FFC ケーブルとねじをはずす。）
(2) Remove the screws.（ねじをはずす。）
Please refer to "EXPLODED VIEW " for the disassembly method of each P.W.B included in REAR PANEL SUB ASSY.
REARPANELSUBASSY の各基板のはずしかたは "EXPLODEDVIEW" を参照してください。
proceeding (手順): TOP CABINET → REAR PANEL SUB ASSY
CN72 FFC CABLE CN91
CN93CN12FFC CABLE
Picture B
CN96
CN98
Picture D
Bottom view
Picture B
ً
ً
