Denon D-E500 - T5 Cc1 (Ic24)

40
RCD-M37 / RCD-M37DAB / D-E500 / D-M37
T5CC1 (IC24)
T5CC1 Terminal Function
Pin
No
Port Name Description I/O Use
Status
Note
Pull-up NoUse Init Stby Act.
1VREF ADC power
2 AVSS ADC_GND
3 AVCC MCU +3.3V MCU power
4 P70/TA0IN NC I/O O X OPEN I
5 P71/TA1OUT NC I/O O X OPEN I
6 P72/TA3OUT PORTABLE_IN I/O I O I O L Portable_input
7 P73/TA4IN LED_ST I/O O X I L L ST LED Control
8 P74/TA5OUT LED_PON I/O O X I H L Power LED Control
9 P75/TA7OUT P_DOWN I/O I O I - L P_down port
10 P80/TB0IN0/INT5 PROTECT_IN I/O I O I - L AMP protect detect
11 P81/TB0IN1/INT6 HEADPHONE_IN I/O I O I O L headphone in detect
P65
DVCC
P64/SCOUT
P66 P63/INT0
DVSS P62/SI/SCL
P50/AN0 P61/SO/SDA
P51/AN1 P60/SCK
P52/AN2 P43/CS3
P53/AN3/ADTRG P42/CS2
P54/AN4 P41/CS1
P55/AN5 P40/CS0
P56/AN6 P37/BOOT
P57/AN7 P36/R/W
VREFH P35/BUSAK
VREF P34/BUSRQ
AVSS P33/WAIT
AVCC P32/HWR
P70/TA0IN P31/WR
P71/TA1OUT P30/RD
P72/TA3OUT P27/A7/A23
P73/TA4IN P26/A6/A22
P74/TA5OUT P25/A5/A21
P75/TA7OUT P24/A4/A20
P80/TB0IN0/INT5 P23/A3/A19
P81/TB0IN1/INT6 P22/A2/A18
P82/TB0OUT0
DVCC
P83/TB0OUT1 NMI
P84/TB1IN0/INT7 DVSS
P85/TB1IN1/INT8 P21/A1/A17
P86/TB1OUT0 P20/A0/A16
P87/TB1OUT1 P17/AD15/A15
P90/TXD0 P16/AD14/A14
P91/RXD0 P15/AD13/A13
P92/SCLK0/CTS0 P14/AD12/A12
P93/TXD1 P13/AD11/A11
P94/RXD1 P12/AD10/A10
P95/SCLK1/CTS1 P11/AD9/A9
AM0 P10/AD8/A8
DVCC P07/AD7
X2 P06/AD6
DVSS P05/AD5
X1 P04/AD4
AM1 P03/AD3
RESET P02/AD2
P96/XT1 P01/AD1
P97/XT2 P00/AD0
EMU0 ALE
EMU1 PA7
PA0/INT1
PA6
PA1/INT2 PA5
PA2/INT3 PA4
PA3/INT4

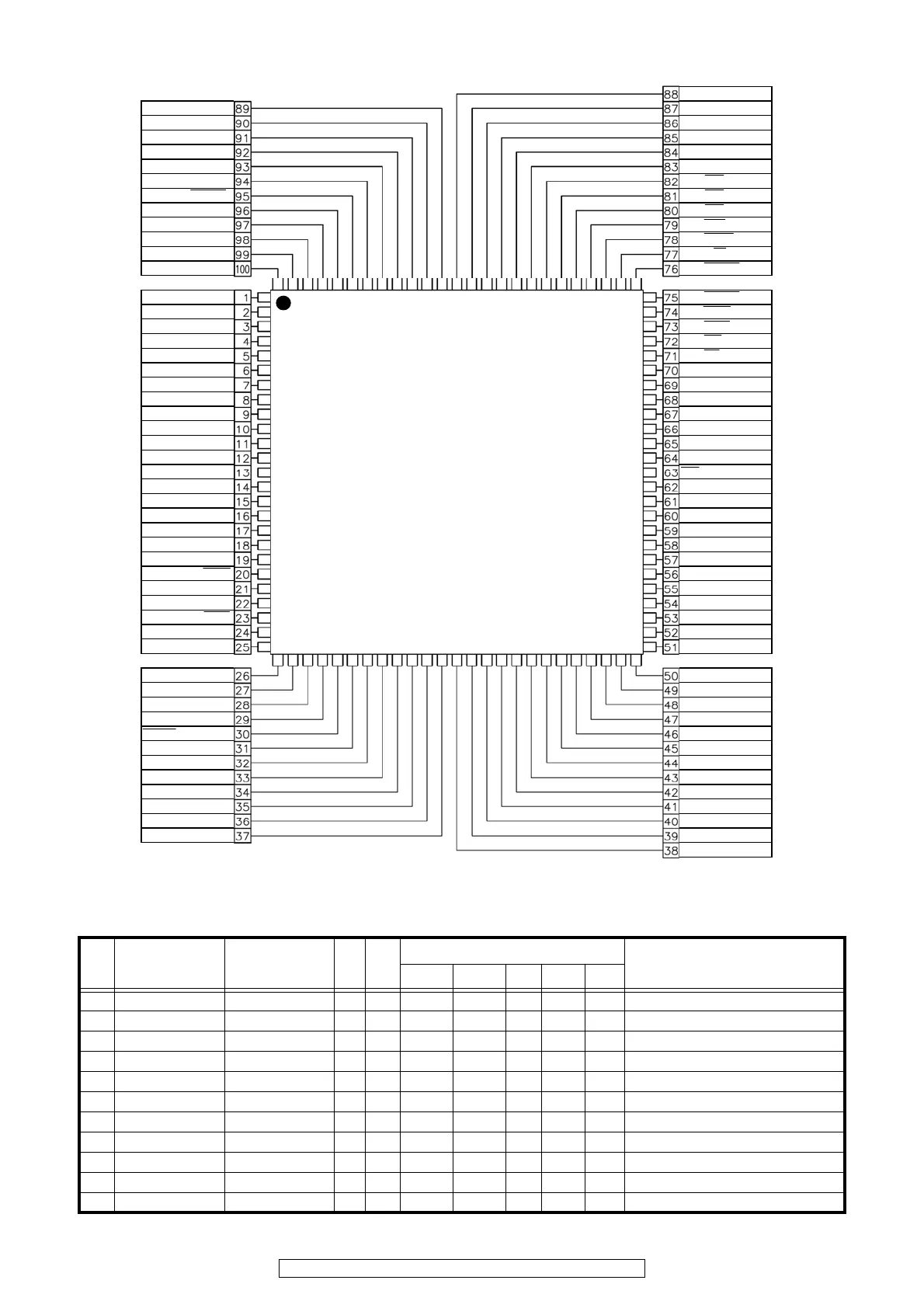

T5CC1
QFP100
TOP VIEW
