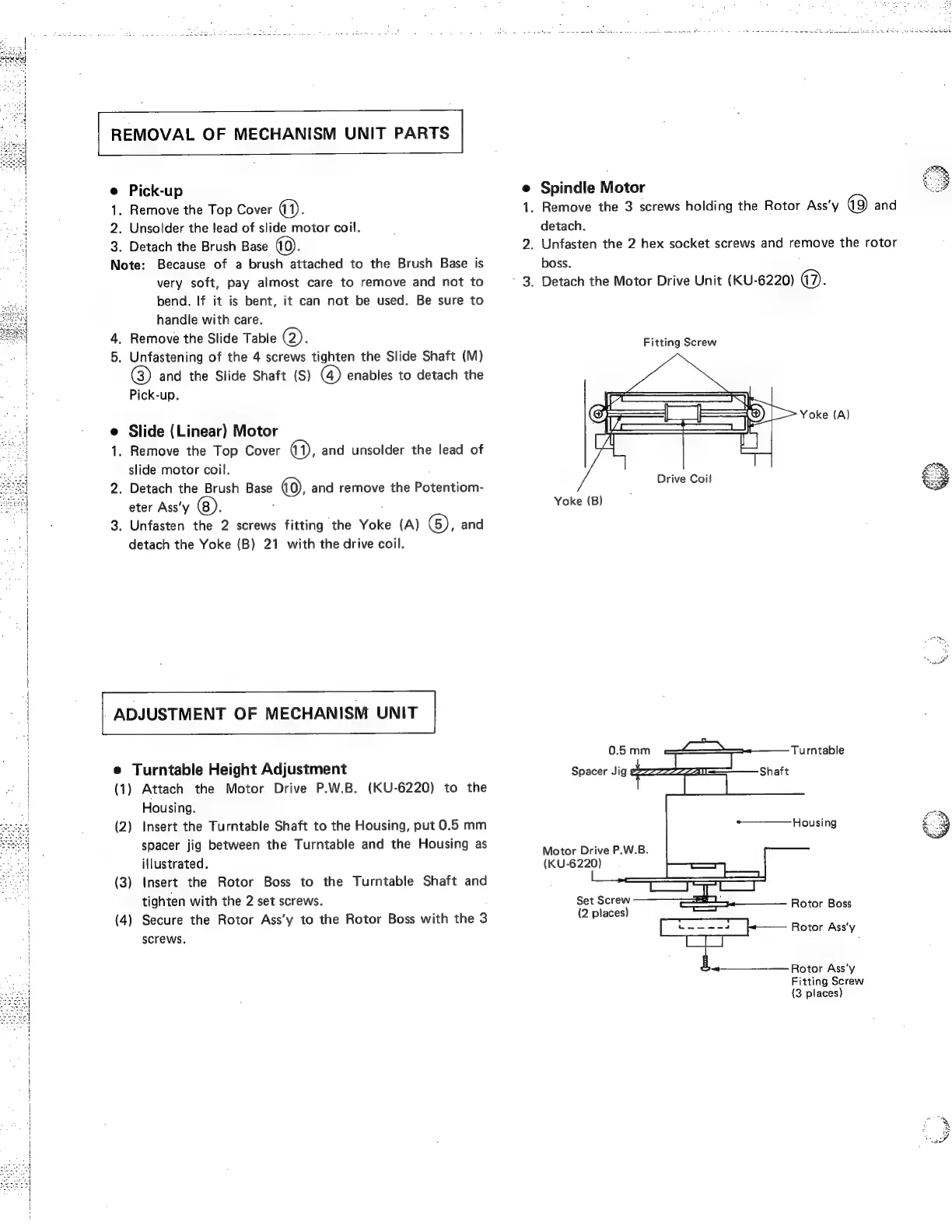

REMOVAL
OF
MECHANISM
UNIT
pants
|
e
Pick-up
1.
Remove
the
Top
Cover
q).
2.
Unsolder
the
lead
of
slide
motor
coil.
3.
Detach
the
Brush
Base
(0).
Note:
Because
of
a
brush
attached
to
the
Brush
Base
is
very
soft,
pay
almost
care
to
remove
and
not
to
bend.
If it
is
bent,
it
can
not
be
used.
Be
sure
to
handle
with
care.
4.
Remove
the
Slide
Table
(2).
5.
Unfastening
of
the
4
screws
tighten
the
Slide
Shaft
(M)
3)
and
the
Slide
Shaft
(S)
@
enables
to
detach
the
Pick-up.
e
Slide
(Linear)
Motor
1.
Remove
the
Top
Cover
ay,
and
unsolder
the
lead
of
slide
motor
coil.
2.
Detach
the
Brush
Base
(0),
and
remove
the
Potentiom-
eter
Ass’y
@).
3.
Unfasten
the
2
screws
fitting
the
Yoke
(A)
(6),
and
detach
the
Yoke
(B)
21
with
the
drive
coil.
ADJUSTMENT
OF
MECHANISM
UNIT
|
e
Turntable
Height
Adjustment
(1)
Attach
the
Motor
Drive
P.W.B.
(KU-6220)
to
the
Housing.
(2)
Insert
the
Turntable
Shaft
to
the
Housing,
put
0.5
mm
spacer
jig
between
the
Turntable
and
the
Housing
as
illustrated.
(3)
Insert
the
Rotor
Boss
to
the
Turntable
Shaft
and
tighten
with
the
2
set
screws.
(4)
Secure
the
Rotor
Ass’y
to
the
Rotor
Boss
with
the
3
screws.
e
Spindle
Motor
1.
Remove
the
3
screws
holding
the
Rotor
Ass’y
and
detach.
2.
Unfasten
the
2
hex
socket
screws
and
remove
the
rotor
boss.
:
-
3.
Detach
the
Motor
Drive
Unit
(KU-6220)
(7).
Fitting
Screw
ES
7
|
>
Yoke
(A)
5)
Drive
Coil
Yoke
(B)
0.5
mm
Turntable
Spacer
Jig
=
Shaft
Housing
Motor
Drive
P.W.B.
(KU-6220)
Set
Screw
(2
places)
Rotor
Boss
Rotor
Ass‘y
Rotor
Ass‘y
Fitting
Screw
{3
places)
emesnenerers
