Denon DCD-F101 - WAVE-FORMS OF EACH POINT; Signal Waveform Examples

DCD-F101
8

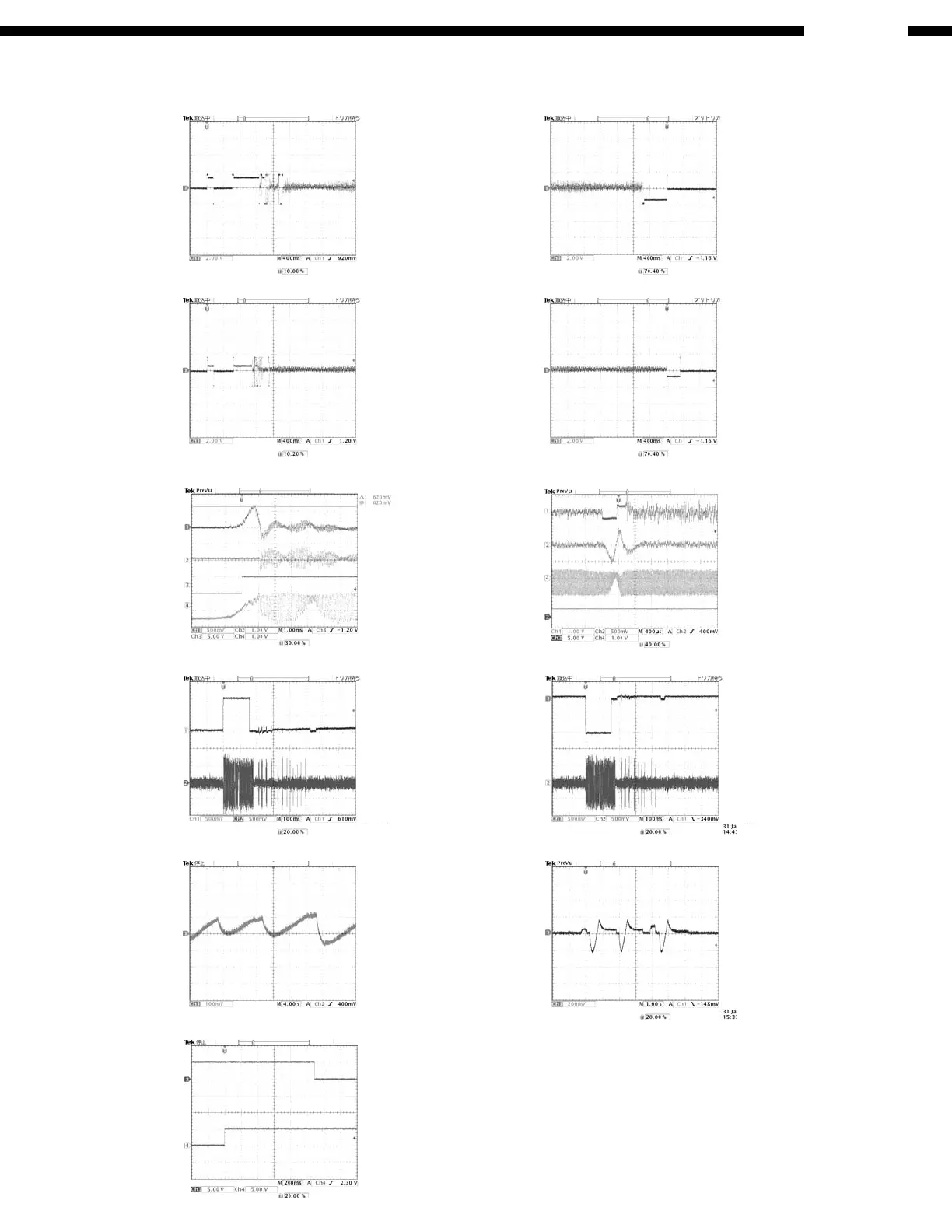

WAVE-FORMS OF EACH POINT
SPD
When 12 cm DISC
start
SPD
When 8 cm DISC
start
SLD
TEO
Track search
(when forward)
SLD
During PLAY
OPEN
CLOSE
When the tray
OPEN
SPD
When 12 cm DISC
stop
SPD
When 8 cm DISC
stop
TD
TEO
HF
DRF
During PAUSE
SLD
TEO
Track search
(when reverse)
FD
Focus search
(no DISC)
FEO
TEO
DRF
HF
When focus
servo on
