Denon DCM-560 - Tracking Gain Adjustment; Tracking Gain Adjustment Procedure

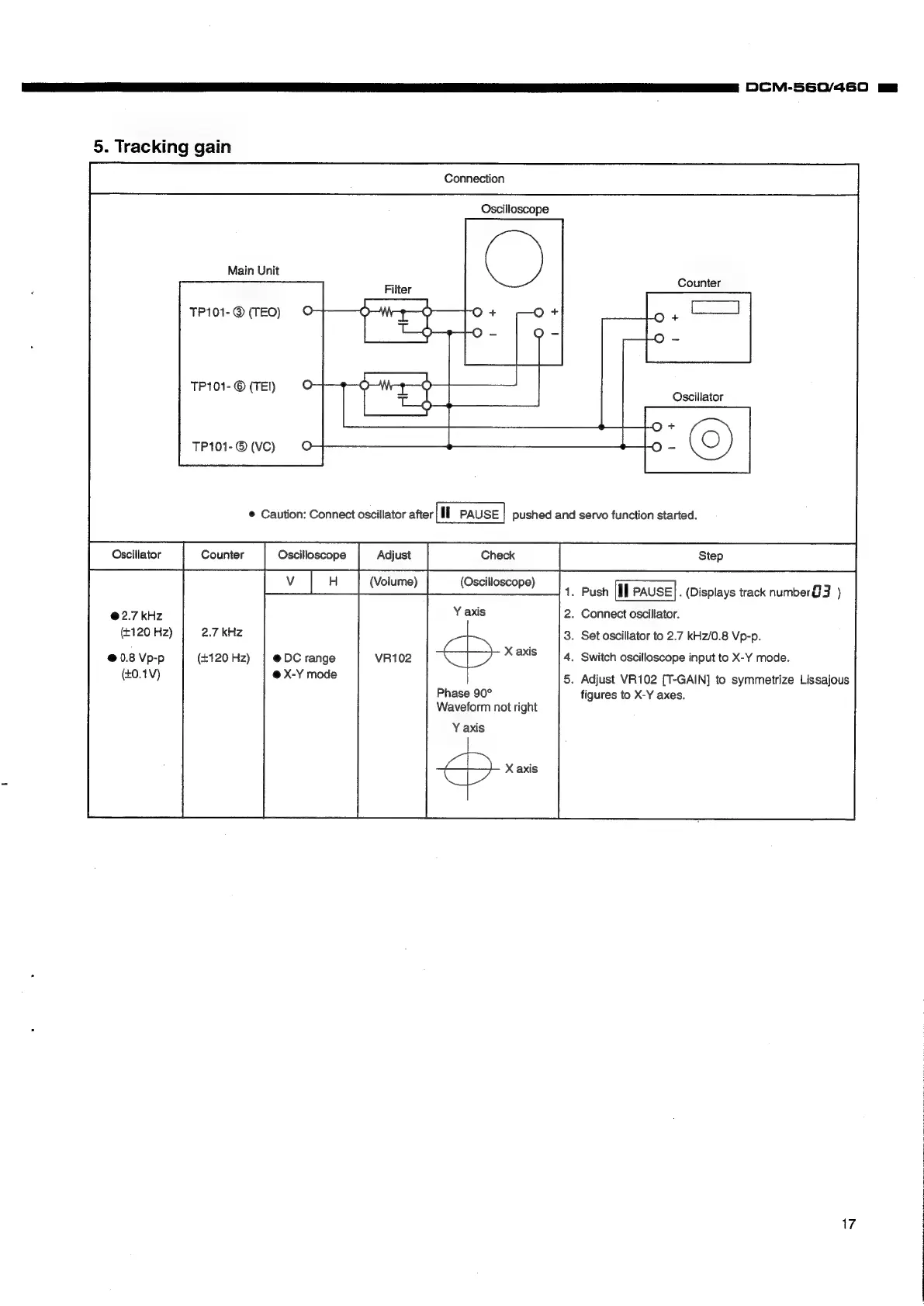

5. Tracking gain
Connection
Oscilloscope
Main Unit
Filter
TP101- @ (TEO)
TP101- © (TEI)
TP101- © (VC)
DCM-560/460O ma
Counter
® Caution: Connect oscillator after| [ll PAUSE pushed and servo function started.
Oscilloscope | Adjust Check
Oscillator
(Volume) (Oscilloscope)
Y axis
VR102 eS X axis
Phase 90°
Waveform not right
Y axis
<P X axis
@ 2.7 kHz
(£120 Hz) 2.7 kHz
@ 0.8 Vp-p (£120 Hz) | @DC range
(+0.1V) @ X-Y mode
. Push |I PAUSE}. (Displays track number{7Z )
. Connect oscillator.
. Set oscillator to 2.7 kHz/0.8 Vp-p.
. Switch oscilloscope input to X-Y mode.
. Adjust VR102 [T-GAIN] to symmetrize Lissajous
figures to X-Y axes.
17
