13

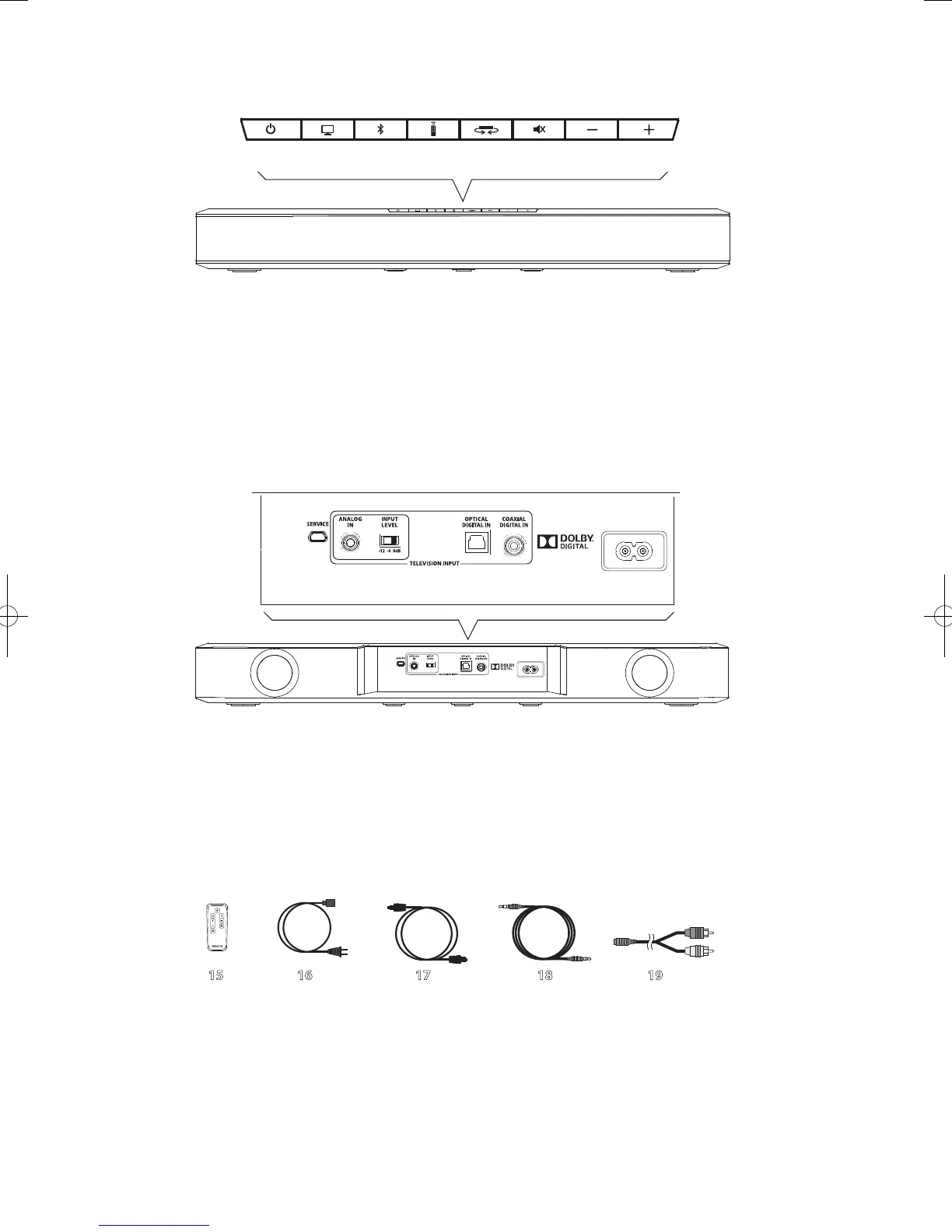

Front Panel Controls
1) Power on/standby
2) Television Input—select to watch television.
3) Bluetooth wireless input—select for Bluetooth pairing or playback.
4) Remote Learning—engages remote control learning.
5) Listening Mode—changes Listening Mode, stepping through the five Modes in sequence.
6) Mute sound—Press to mute the audio, press again to unmute. (Pressing either Volume key also unmutes.)
7) Volume down—press-and-hold to continuously decrease the volume
8) Volume up—press-and-hold to continuously increase the volume
Rear Panel
9) Service Port—for service only, do not use.
10)
Analog In (3.5mm mini plug stereo)—connects to television’s rear panel audio out or headphone
output if no digital out available.
11) Input Level—input sensitivity for the Analog In.
12)
Optical Digital Input (S/PDIF)—connects to television’s optical digital out.
13)
Coaxial Digital In (RCA jack)—connects to television’s coaxial digital audio, if available.
14)
Power Input—connect the supplied power cable here.
Accessories
15) Remote Control—supplied remote control with included battery.
16) Power Cable—DHT-T100 power cable.
17)
Optical Digital Cable—best choice for connecting digital audio sources to DHT-T100.
18)
3.5mm Stereo Cable—for connecting a source to the Analog Input, if needed.
19)
RCA to 3.5mm Adapter—adapts a left/right RCA output to a stereo 3.5mm output.
1 2 3 4 5 6 7 8
9 10 11 12 13 14
16 17 18 1915
DENON
DHT-T100
DENON
DHT-T100
AC IN
AC IN
9 10 11 12 13 14
DENON
DHT-T100
DENON
DHT-T100
AC IN
AC IN
1 2 3 4 5 6 7 8
9 10 11 12 13 14
16 17 18 1915
DENON
DHT-T100
DENON
DHT-T100
AC IN
AC IN
DHT-T100E2_10A_131201.indd 13 2013/12/02 13:28:01
