Denon DN S5000 - DJ Table Top Single CD Player Service Manual

17
17DN-S5000

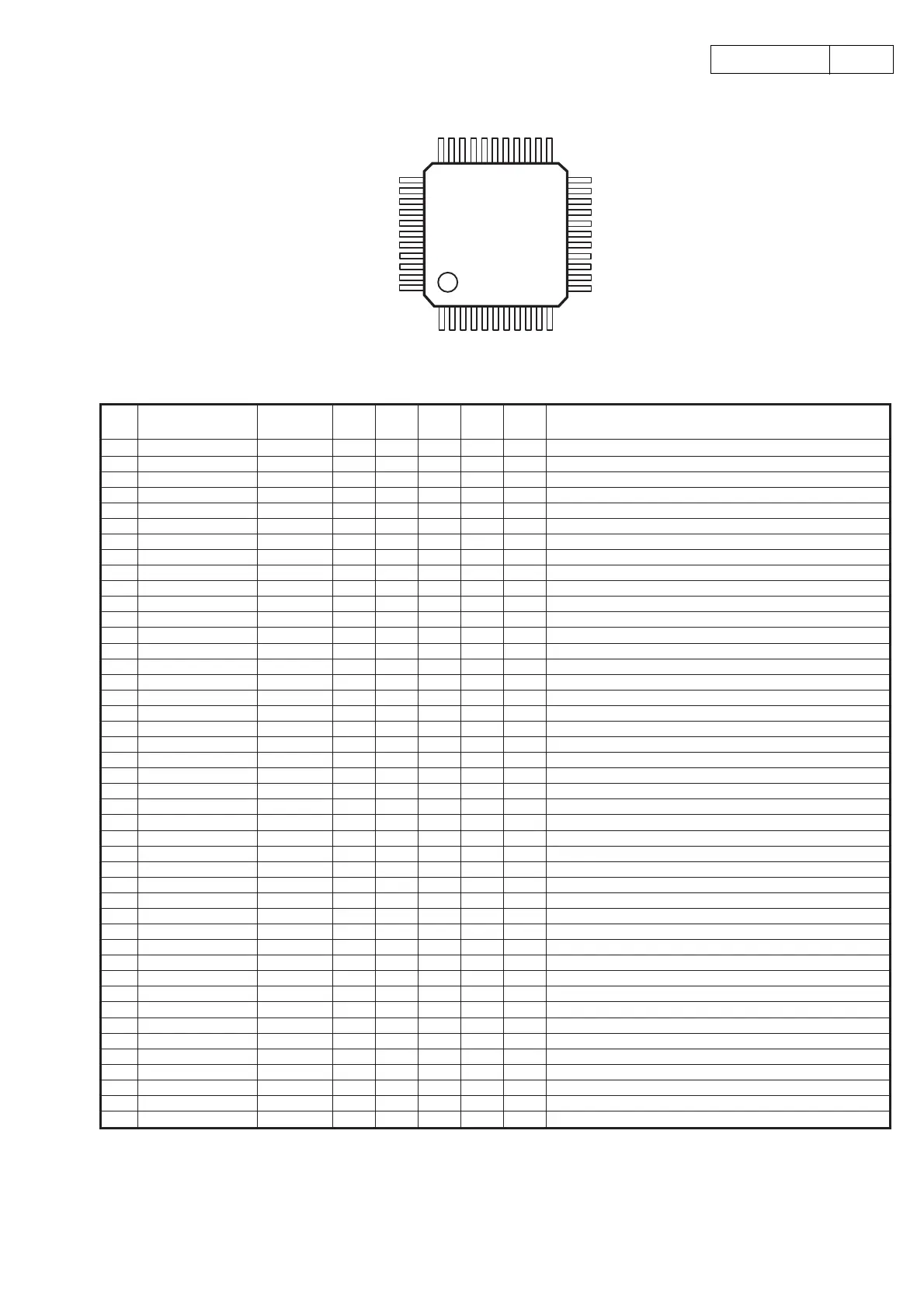

TMP86CM47U(IC151)
TMP86CM47U Terminal Function
1
11
12
22
23
33
34
44
TOP VIEW
FunctionI/O
Pin
No.
Pin Name Symbol DET Ext Ini Res
1 VSS VSS GND (0V)
2 XIN XIN Oscillation input 16.0MHz
3 XOUT XOUT Oscillation output
4 TEST TEST Fixed to L
5 VDD VDD Power (+5.0V)
6 P21 LED AT BU2090 data (1&2)
7 P22 LECLK1 Clock signal 1 for BU2090 data output
8 RESET
_
RST
_
µcom reset
9 P20 (LED) LED4 LED4 ON/OFF (L: ON)
10 P00 (INT0) TRSB Track select encorder B input
11 P01 αBEND
_
αBEND button
12 P02, (RXD) RXD Data receive from system µcom
13 P03, (TXD) TXD Data send to system µcom
14 P04 (SO) FLDA ML9207 data signal
15 P05 FLCS
_
ML9207 latch signal
16 P06 (SCK) FLCP
_
Clock signal for ML9207 data output
17 P07 LECLK2 Clock signal 2 for BU2090 data output
18 P17 KIN5 Key scan input 5
19 P16 KIN4 Key scan input 4
20 P15 KIN3 Key scan input 3
21 P14 KIN2 Key scan input 2
22 P13 KIN1 Key scan input 1
23 P12 KIN0 Key scan input 0
24 P11 (INT1) TRSA Track select encorder A input
25 P10 FLRES
_
ML9207 reset signal
26 P30 (AIN0) PITCH Pitch VR signal
27 P31 (AIN1) SCRSEL A/D SCRATCH source select key input
28 P32 (AIN2) SCRDIR A/D SCRATCH DIR select key input
29 P33 (AIN3) SEARCH SEARCH VR A/D input O
30
P34 (AIN4) SCAN SCAN VR A/D input O
31 P35 (AIN5) KINAD key A/D input
32 P36 PLAY PLAY/PAUSE key input
33 P37 CUE CUE key input
34 VAREF VAREF Power (+5.0V), Analog ref.V for A/D conversion
35 AVDD AVDD Power (+5.0V), Power for A/D conversion circuit only
36 AVSS AVSS GND (0V), Analog GND for A/D conversion
37 P40 (LED) KOUT0 Key scan output 0/LED line select 0 (L: select)
38 P41 (LED) KOUT1 Key scan output 1/LED line select 1 (L: select)
39 P42 (LED) KOUT2 Key scan output 2 (Except scaning: IN)
40 P43 (LED) KOUT3 Key scan output 3 (Except scaning: IN)
41 P44 (LED) LED0 LED ON/OFF 0 (L: ON)
42 P45 (LED) LED1 LED ON/OFF 1
43 P46 (LED) LED2 LED ON/OFF 2
44 P47 (LED) LED3 LED ON/OFF 3
—
I
O
I
—
O
O
I
O
I
O
I
O
O
O
O
O
I
I
I
I
I
I
I
O
I
I
I
I
I
I
I
I
I
I
I
O
O
I/O
I/O
O
O
O
O
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
Ed
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
Pu
Pu
—
—
Pu
Pu
Pu
Pu
Pu
Pu
Pu
Pu
Pu
Pu
Pu
Pu
Pu
Pu
Pu
Pd
—
Pu
Pu
Pu
Pu
Pu
Pu
Pu
—
—
—
Pu
Pu
Pu
Pu
—
—
—
—
—
—
—
—
—
L
H
—
H
—
H
—
H
H
H
H
L
—
—
—
—
—
—
—
L
—
—
—
—
—
—
—
—
—
—
—
H
H
H
H
H
H
H
H
—
—
—
—
—
H
H
—
—
H
—
H
H
H
H
H
H
H
H
H
H
H
H
H
L
—
H
H
H
H
H
H
H
—
—
—
H
H
H
H
—
—
—
—
