Denon DP-59L Service Manual

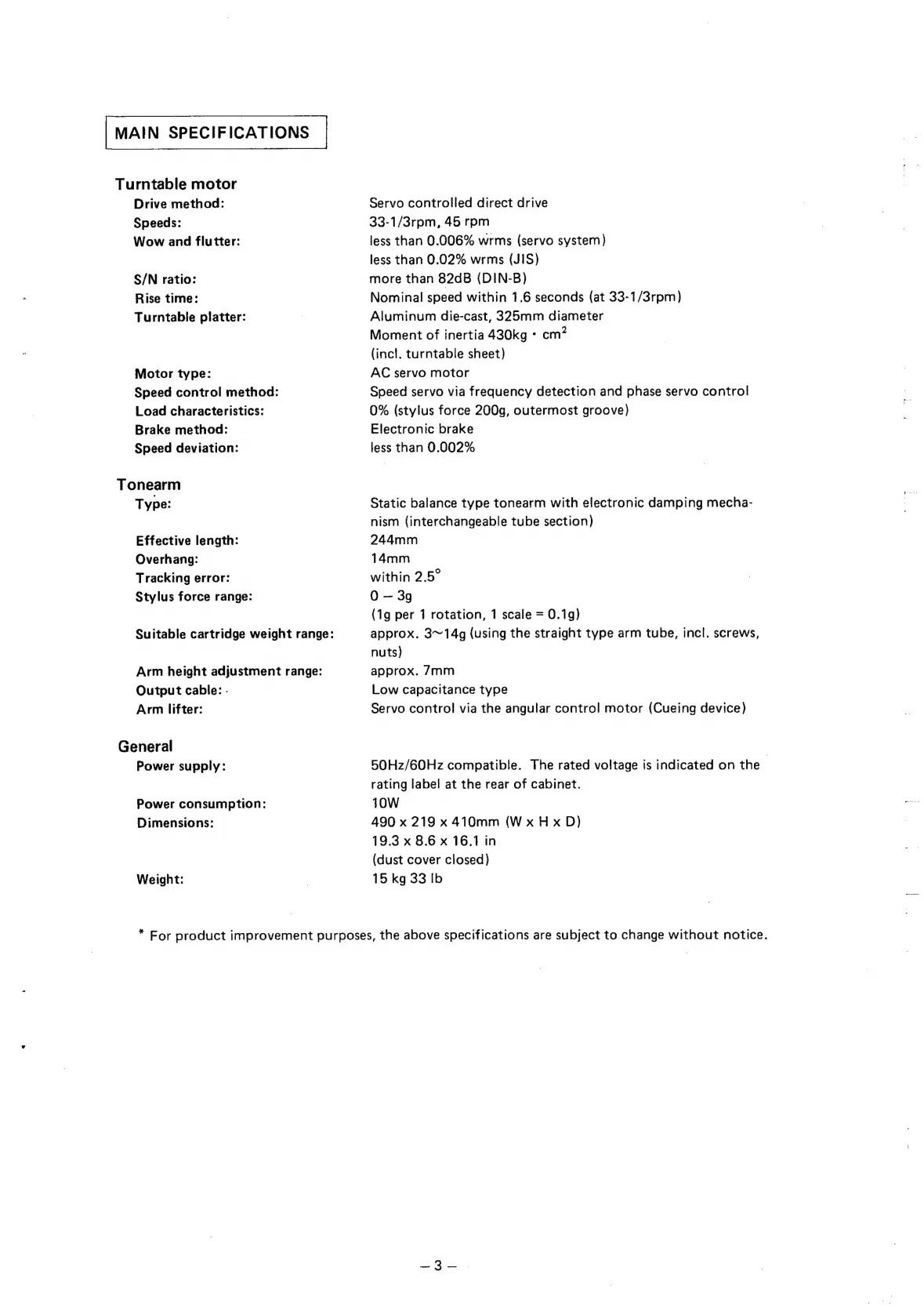

MAIN SPECIFICATIONS
Turntable motor
Drive method:
Speeds:
Wow and flutter:
S/N ratio:
Rise time:
Turntable platter:
Motor type:
Speed control method:
Load characteristics:
Brake method:
Speed deviation:
Tonearm
Type:
Effective length:
Overhang:
Tracking error:
Stylus force range:
Suitable cartridge weight range:
Arm height adjustment range:
Output cable: .
Arm lifter:
General
Power supply:
Power consumption:
Dimensions:
Weight:
Servo controlled direct drive
33-1/3rpm, 45 rpm
less than 0.006% wrms (servo system)
less than 0.02% wrms (JIS)
more than 82dB (DIN-B)
Nominal speed within 1.6 seconds (at 33-1/3rpm)
Aluminum die-cast, 325mm diameter
Moment of inertia 430kg ° cm?
(incl. turntable sheet)
AC servo motor
Speed servo via frequency detection and phase servo control
0% (stylus force 200g, outermost groove)
Electronic brake
less than 0.002%
Static balance type tonearm with electronic damping mecha-
nism (interchangeable tube section)
244mm
14mm
within 2.5°
0 — 3g
(1g per 1 rotation, 1 scale = 0.1g)
approx. 3~14g (using the straight type arm tube, incl. screws,
nuts)
approx. 7mm
Low capacitance type
Servo control via the angular control motor (Cueing device)
50Hz/60Hz compatible. The rated voltage is indicated on the |
rating label at the rear of cabinet.
1OW
490 x 219 x 410mm (W x H x D)
19.3 x 8.6 x 16.1 in
(dust cover closed)
15 kg 33 Ib
* For product improvement purposes, the above specifications are subject to change without notice.

Denon DP-59L Specifications

General

Drive System	Direct Drive
Motor	AC Servo Motor
Wow and Flutter	0.008% WRMS
Platter Size	300 mm
Effective Tonearm Length	244 mm
Speed	33 1/3, 45 rpm
Platter	Die-cast aluminum
Tonearm Type	Static balance type (interchangeable)
