Denon DP-60L Service Manual

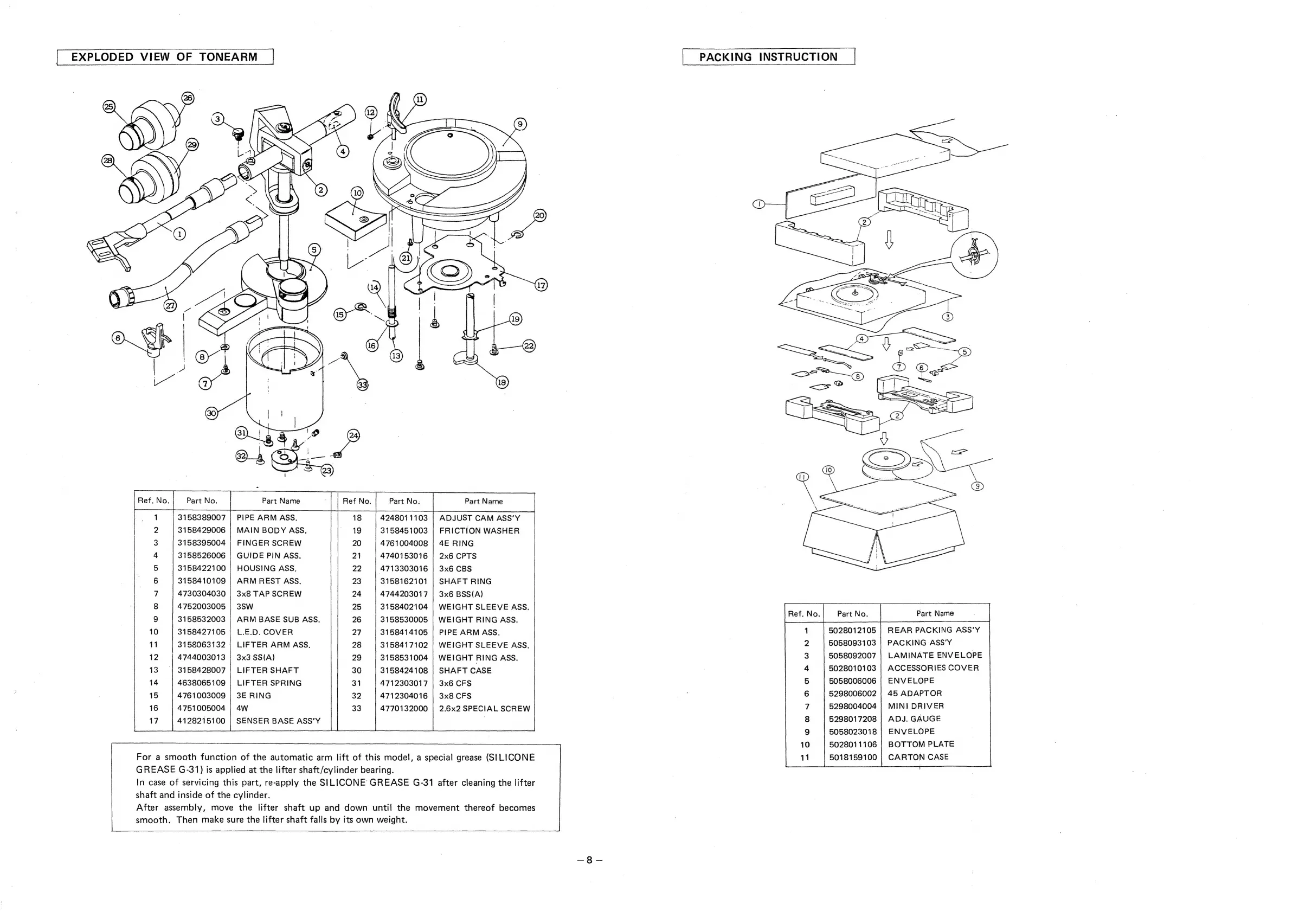

EXPLODED VIEW OF TONEARM
Ref. No. Part No. Part Name Part No.
3158389007 | PIPE ARM ASS. 18 4248011103
1
2 | 3158429006 | MAIN BODY ASS. 19 =| 3158451003
3 | 3158395004 | FINGER SCREW 20. | 4761004008
4 | 3158526006 | GUIDE PIN ASS. 21 | 4740153016
5 | 3158422100 | HOUSING ASS. 22 | 4713303016
6 | 3158410109 | ARMREST ASS, 23 | 3158162101
7 | 4730304030 | 3x8 TAP SCREW 24 | 4744203017
8 | 4752003005 | 3Sw 25 | 3158402104
9 | 3158532003 | ARM BASE SUB ASS. 26 | 3158530005
10 | 3158427105 | L.E.D. COVER 27. ‘| 3158414105
11. | 3158063132 | LIFTER ARM ASS, 28 | 3158417102
12 | 4744003013 | 3x3 SS(A) 29 | 3158531004
13. || 3158428007 | LIFTER SHAFT 30 | 3158424108
14 | 4638065109 | LIFTER SPRING 31. | 4712303017
15 | 4761003009 | 3E RING 32 | 4712304016
16 | 4751005004 | 4w 33 | 4770132000
17 4128215100 | SENSER BASE ASS’Y
GREASE G-31) is applied at the lifter shaft/cylinder bearing.
shaft and inside of the cylinder.
smooth. Then make sure the lifter shaft falls by its own weight.
ADJUST CAM ASS'Y
FRICTION WASHER
SHAFT RING
WEIGHT SLEEVE ASS,
WEIGHT RING ASS.
PIPE ARM ASS,
WEIGHT SLEEVE ASS,
WEIGHT RING ASS.
SHAFT CASE
2.6x2 SPECIAL SCREW
For a smooth function of the automatic arm lift of this model, a special grease (SILICONE
In case of servicing this part, re-apply the SILICONE GREASE G-31 after cleaning the lifter
After assembly, move the lifter shaft up and down until the movement thereof becomes
PACKING INSTRUCTION
= Oo On Oa PWN =
—_ amd
5028012105
5058093103
5058092007
5028010103
5058006006
5298006002
5298004004
5298017208
5058023018
5028011106
5018159100
Part Name
REAR PACKING ASS'Y
PACKING ASS'Y
LAMINATE ENVELOPE
ACCESSORIES COVER
ENVELOPE
45 ADAPTOR
MINI DRIVER
ADJ. GAUGE
ENVELOPE
BOTTOM PLATE
CARTON CASE
