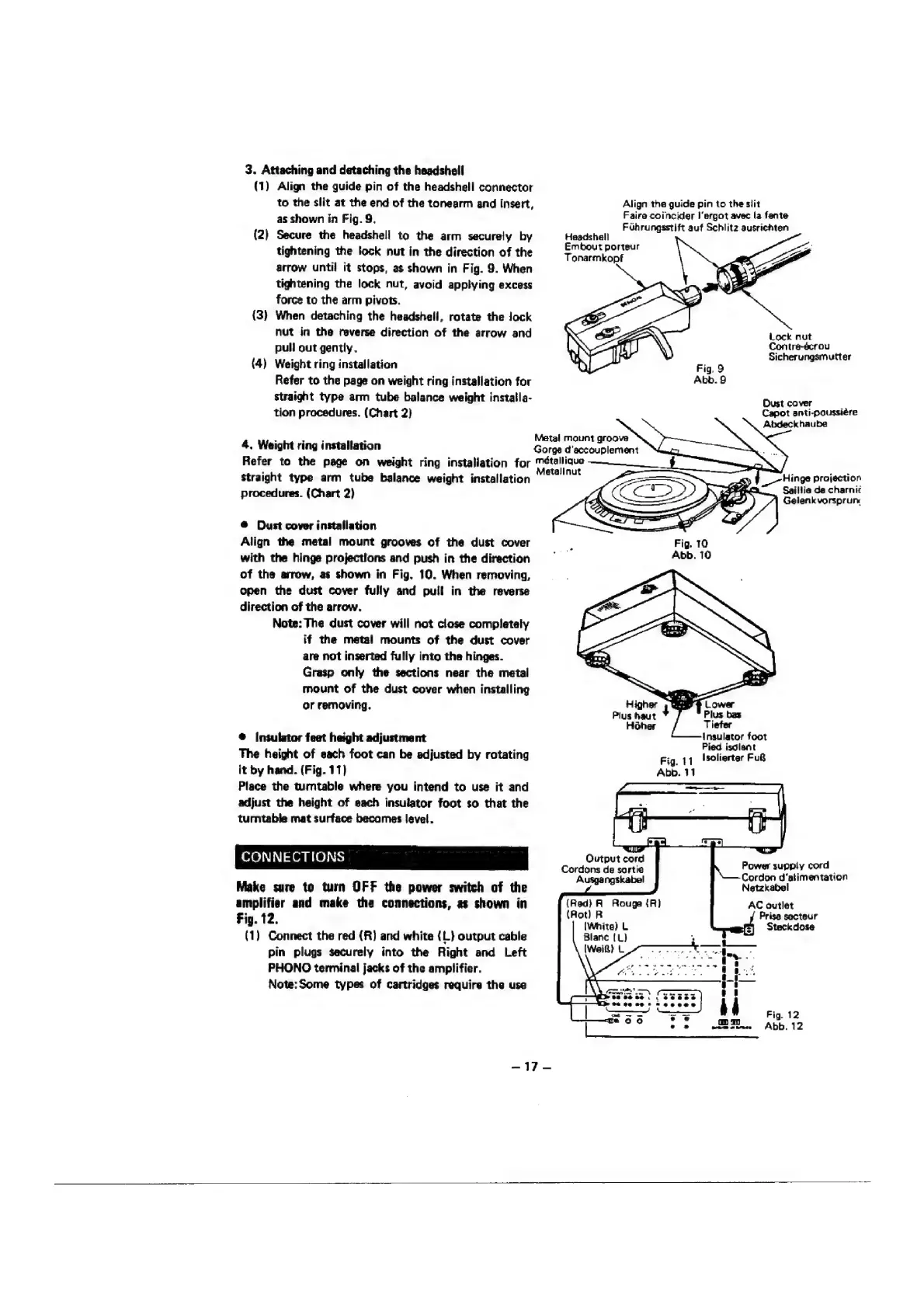

3.
Attaching
and
detaching
the
headshell
(1)
Align
the
guide
pin
of
the
headshell
connector
to
the
slit
at
the
end
of
the
tonearm
and
insert,
as
shown
in
Fig.
9.
(2)
Secure
the
headshell
to
the
arm
securely
by
tightening
the
lock
nut
in
the
direction
of
the
arrow
until
it
stops,
as
shown
in
Fig.
9.
When
tightening
the
lock
nut,
avoid
applying
excess
force
to
the
arm
pivots.
(3)
When
detaching
the
headshell,
rotate
the
Jock
nut
in
the
reverse
direction
of
the
arrow
and
pull
out
gently.
Weight
ring
installation
Refer
to
the
page
on
weight
ring
installation
for
straight
type
arm
tube
balance
weight
installa-
tion
procedures.
(Chart
2)
(4
—
4,
Weight
ring
installation
Straight
type
arm
tube
balance
weight
installation
procedures.
(Chart
2)
®
Dust
cover
installation
Align
the
metal
mount
grooves
of
the
dust
cover
with
the
hinge
projections
and
push
in
the
direction
of
the
arrow,
as
shown
in
Fig.
10.
When
removing,
open
the
dust
cover
fully
and
pull
in
the
reverse
direction
of
the
arrow.
Note:
The
dust
cover
will
not
clase
completely
if
the
metal
mounts
of
the
dust
cover
are
not
inserted
fully
into
the
hinges.
Grasp
only
the
sections
near
the
metal
mount
of
the
dust
cover
when
installing
or
removing.
@
Insulator
feet
height
adjustment
The
height
of
each
foot
can
be
adjusted
by
rotating
it
by
hand.
(Fig.
11)
Place
the
turntable
where
you
intend
to
use
it
and
adjust
the
height
of
each
insulator
foot
so
that
the
turntable
mat
surface
becomes
Jevel.
CONNECTIONS
Make
sure
to
turn
OFF
the
power
switch
of
the
amplifier
and
make
the
connections,
as
shown
in
Fig.
12.
(1)
Connect
the
red
(R)
and
white
(L}
output
cable
pin
plugs
securely
into
the
Right
and
Left
PHONO
terminal
jacks
of
the
amplifier.
Note:
Some
types
of
cartridges
require
the
use
—17
—
Metal
mount
groove
Gorge
d'accouplement
Refer
to
the
page
on
weight
ring
installation
for
Tétallique
Metall
nut
Align
the
guide
pin
to
the
slit
Faire
coincider
l'ergot
avec
la
fente
Fiuhrungsstift
auf
Schlitz
ausrichten
Headshell
Embout
porteur
Tonarmkopf
Lock
nut
Corntre-écrou
Sicherungsmutter
Dust
cover
;
Capot
anti-poussiére
Abdeckhaube
Hinge
projection
Saillie
de
charnit
Gelenkvorsprure
Pied
isdlant
Fig.
11
Isoliertar
Fu
Abb.
11
Output
cord
Cordons
de
sortie
Ausgangskabel
Power
supply
cord
Cordon
d‘atimentation
Netzkabe
AC
outlet
Prisa
sacteur
Steckdose
a
