of step-up transformers or head amoli-
fiers. Refer to the instruction manual
of the amplifier and the cartridge in use.
(2)
Secure
the
Y-shaped
tug
of
the
output
cable
ground
wire
to
the
GND
(ground)
terminal
of
the
amplifier.
(3) Connect the power supply cord to the wait
outlet or the AC outlet of the amplifier. When
connecting the plug to the AC outlet of the
amplifier, refer to the amplifier instruction
manual to make sure the electrical capacity
of the AC outlet is sufficient.

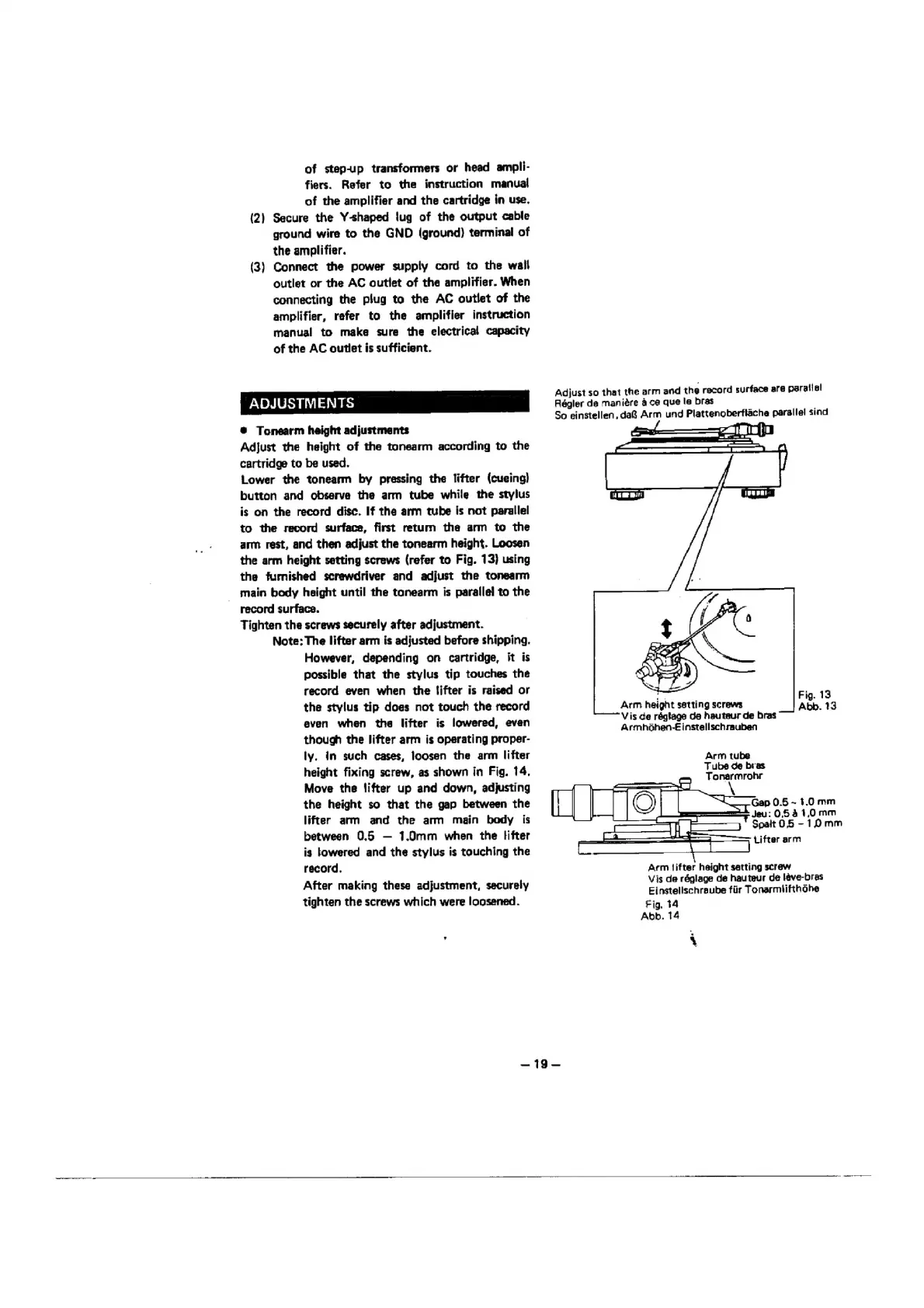

® Tonearm height adjustments
Adjust the height of the tonearm according to the
cartridge to be used.
Lower the tonearm by pressing the lifter (cueing)
button and observe the arm tube while the stylus
is on the record disc. If the arm tube is not parallel
to the record surface, first return the arm to the
arm rest, and then adjust the tonearm height. Loosen
the arm height setting screws (refer to Fig. 13) using
the furnished screwdriver and adjust the tonearm
_ main body height until the tonearm is parallel to the
record surface.
Tighten the screws securely after adjustment.
Note: The lifter arm is adjusted before shipping.
However, depending on cartridge, it is
possible that the stylus tip touches the
record even when the lifter is raised or
the stylus tip does not touch the record
even when the lifter is lowered, even
though the lifter arm is operating proper-
ly. in such cases, loosen the arm lifter
height fixing screw, as shown in Fig. 14.
Move the lifter up and down, adjusting
the height so that the gap between the
lifter arm and the arm main body is
between 0.5 — 1.0mm when the lifter
is lowered and the stylus is touching the
record.
After making these adjustment, securely
tighten the screws which were loosened.
Adjust
so
that
the
arm
and
the
record
surface
are
parallel
Régler
de
maniére
a
ce
que
la
bras
So
einstellen,
da@
Arm
und
Plattenoberflacha
parallel
sind
diame
Arm haight setting screws
Vis ce réglage de hauteur de bras
ArmhoGhen-E instellschrauben
arm tube
Tube de bras
Tonarmrobr
Gap 0.5 ~- 1.0 mm
Jeu: 065a1,0mm
Spait 0.5 -10mm
Lifter arm
Arm lifter height satting screw
Vis
de
réglage
de
hauteur
de
léve-bras
Einstellschraube fiir Tonarmbifthohe
Fig, 14
Abb. 14
—19—
