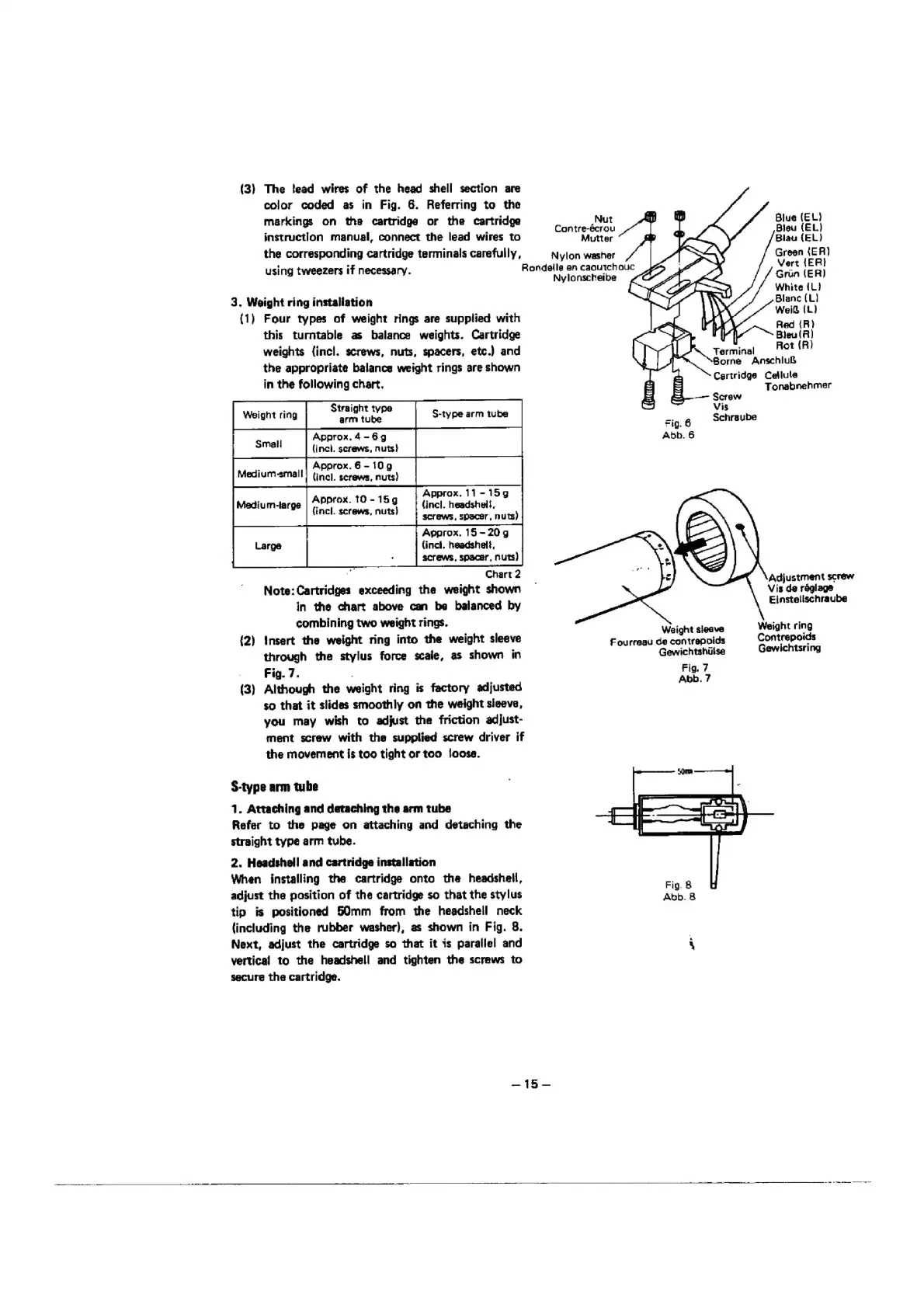

(3) The lead wires of the head shell section are
color coded as in Fig. &. Referring to the
markings on the cartridge or the cartridge
instruction manual, connect the lead wires to
the corresponding cartridge terminals carefully,
using tweezers if necessary.
3. Weight ring installation
{1} Four types of weight rings are supplied with
this turntable as balance weights. Cartridge
weights {incl. screws, nuts, spacers, etc.) and
the appropriate balance weight rings are shown
in the following chart.
Approx.4-69
(incl. screws, nuts}
Approx.6-109
Medium-small
Pics) Approx. 10-159
Mediu m-large (incl. screws, nuts)
Large
(incl.
headshelt,
screws, spacar, nuts)
Approx. 11- 15g
(incl. headshell,
screws, spacer, nuts}
Approx. 159-20g
_ Chart 2
Note: Cartridges exceeding the weight shown
in the chart above can be balanced by
combining two weight rings.
Insert the weight ring into the weight sleeve
through the stylus force scale, as shown in
Fig. 7.
Although the weight ring is factory adjusted
so that it slides smoothly on the weight sleeve,
you may wish to adjust the friction adjust-
ment screw with the supplied screw driver if
the movement is too tight or too loose.
{2)
(3
—
$-type arm tube
1. Attaching and detaching the arm tube
Refer to the page on attaching and detaching the
straight type arm tube.
2. Headshell and cartridge installation
When installing the cartridge onto the headshell,
adjust the position of the cartridge so that the stylus
tip is positioned 50mm from the headshell neck
(including the rubber washer), as shown in Fig. 8.
Next, adjust the cartridge so that it is parallel and
vertical to the headshell and tighten the screws to
secure the cartridge.
—15—
Rondeila en caoutchouc
Blue (EL)
Bieu (EL)
Biau {EL)
Green {ER}
Vert {ER}
Grun (ER)
White {L)
Blane (L}
Weift (L)
Red {R)
Bieu (A)
Terminal Rot (R)
Borne AnschiuB
Cartridge Cellule
JNut
Contre-@crou
Mutter
Nylon washer
Nylonscheibe
Tonabnehmer
Screw
Vis
Fig. 8 Schraube
Abb. 6
Adjustment screw
Vis de raglage
Einstellschraube
Weight
sleeve
Weight
ring
Fourreau
de
contrepoids
Contrepoids
Gewichtshiilse
Gewichtsring
Fig.
7
Abb.
7
