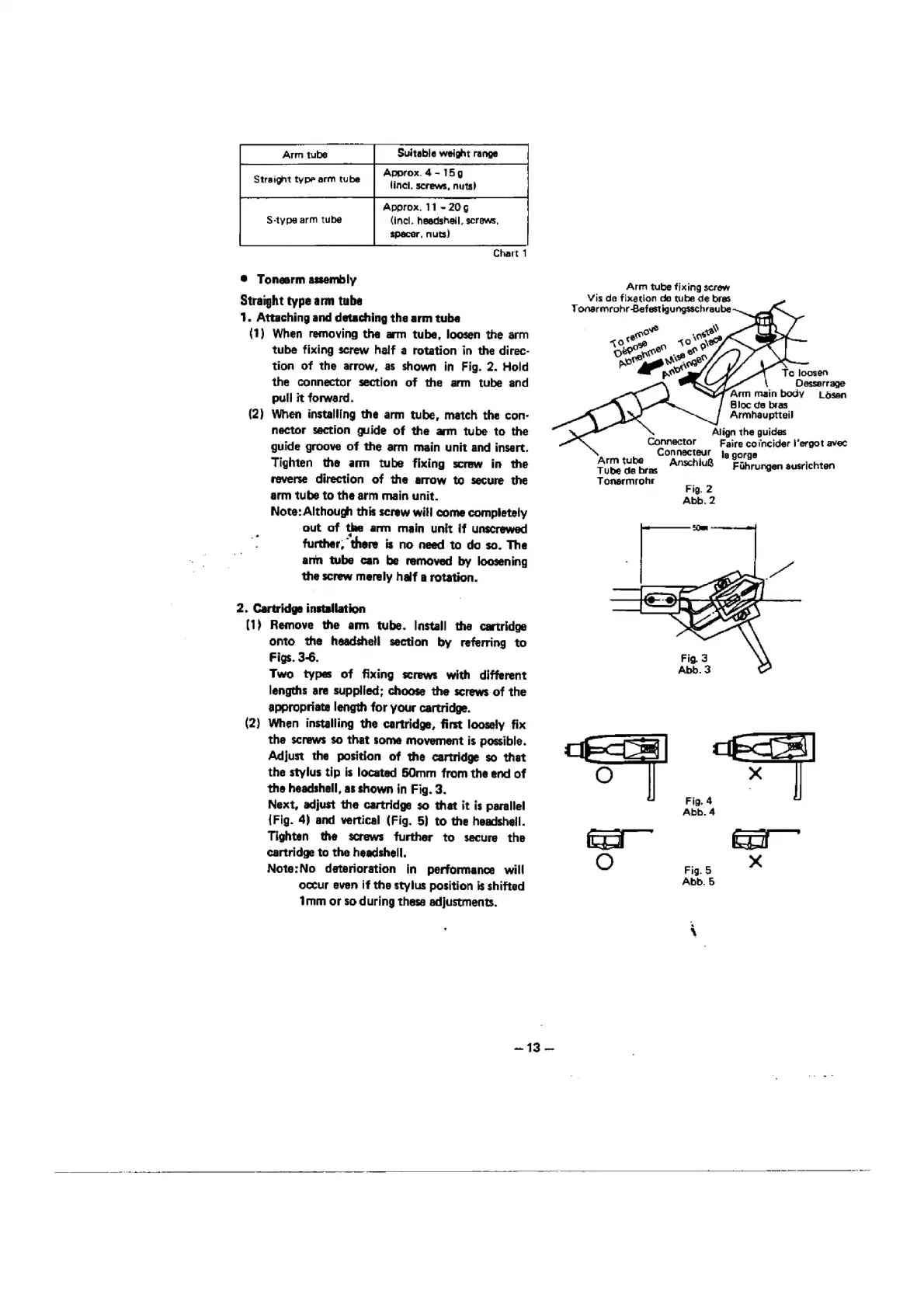

Sable
wight
ae
|
Approx.
4-
15g
Straignt
type
arm
tube
lincl.
screws,
nuts)
Approx.
11
-
20g
S-type
arm
tube
(incl.
headsheil,
screws,
®
Tonearm
assembly
spacer,
nuts)
Straight
type
arm
tube
1.
Attaching
and
detaching
the
arm
tube
(1)
When
removing
the
arm
tube,
logsen
the
arm
Chart
1
tube
fixing
screw
half
a
rotation
in
the
direc-
tion
of
the
arrow,
as
shown
in
Fig.
2.
Hold
the
connector
section
of
the
arm
tube
and
pull
it
forward.
When
installing
the
arm
tube,
match
the
con-
nector
section
guide
of
the
arm
tube
to
the
guide
groove
of
the
arm
main
unit
and
insert.
Tighten
the
arm
tube
fixing
screw
in
the
reverse
direction
of
the
arrow
to
secure
the
arm
tube
to
the
arm
main
unit.
Note:
Although
this
screw
will
come
completely
aut
of
the
arm
main
unit
if
unscrewed
further;
there
is
no
need
to
do
so.
The
arm
tube
can
be
removed
by
loosening
the
screw
merely
half
a
rotation.
(2
2.
Cartridge
installation
(1)
Remove
the
arm
tube.
lnstall
the
cartridge
onto
the
headshell
section
by
referring
to
Figs.
3-6.
Two
types
of
fixing
screws
with
different
lengths
are
supplied:
choose
the
screws
of
the
appropriate
length
for
your
cartridge.
When
installing
the
cartridge,
first
loosely
fix
the
screws
so
that
some
movement
is
possible.
Adjust
the
position
of
the
cartridge
so
that
the
stylus
tip
is
located
50mm
from
the
end
of
the
headshell,
as
shown
in
Fig.
3.
Next,
adjust
the
cartridge
so
that
it
is
parallel
{Fig.
4)
and
vertical
(Fig.
5)
to
the
headshell.
Tighten
the
screws
further
to
secure
the
cartridge
to
the
headshell.
Note:No
deterioration
in
performance
will
occur
even
if
the
stylus
position
is
shifted
imm
or
so
during
thesa
adjustments.
(2
——_
Arm
tube
fixing
screw
Vis
de
fixation
de
tube
de
bras
Tonarmrohr
Befestigungsschraube
ye
<0
Deen”
i
Yt
io
To
loosen
Desserrage
Arm
main
body
Lésen
Bloc
de
bras
Arrmhauptteil
Align
the
guides
Connector
Faire
caincider
l’ergot
avec
‘Arm
tube
Career
aug
'gorge
‘i
nschiu
.
Tube
da
bras
Fihrungen
ausrichten
Tonarmrohr
Fig.
2
Abb.
2
13
—
