Denon DP-72L User Manual

Do
not
connect
the
power
cord
until
assembly
is
completed.
@ Mount the turntable platter
(t)
(2}
(3
Remove
the
two
red
transportation
screws.
(Fig. 1)
Install
the
turntable
piatter
onto
the
motor
shaft
gently
by
holding
the
turntable
through
the
two
holes
with
your
fingers,
as
shown
in
Fig. 1.
Note:
The
pulse
signals
for
speed
detection
are
recorded
an
the
magnetic
coating
on
the
bottom
inner
surface
of
the
platter
{the
bleck
colored
section).
Be
careful
not
to
scratch
this
surface
when
handling
the
platter.
After
installing
the
turntable
platter,
place
the
turntable
mat
onto
the
platter,
aligning
it with the motor shaft.
@ Proper selection of the arm tubes
(1)
(2)
(3)
Straight-type arm tube
Almost
all
cartridges
on
the
market
can
be
used
on
this
arm
tube.
When
using
multiple
numbers
of
cartridges
with
the
straight
type
arm
tube,
cartridge
replacement
can
be
per-
|
formed
easily
by
purchasing
extra
separately
sold
PCL-67
straight
type
arm
tubes.
The
tube
{black
finish)
of
the
PCL-67
is
made
of
HT
pipe,
a
heat
tempered
special
fight
alloy,
which
has
excellent
acoustic
properties.
(Con-
tact
your
DENON
dealer
for
ordering
informa-
tion.)
S-type arm tube
Use
the
S-type
arm
tube
when
using
an
inte-
grated
headshell/cartridge
or
a
universal
head-
shell.
Matching
cartridges
with
the
cartridge
weights
The
appropriate
weight
rings
for
the
straight
type
arm
tube
and
the
S-type
arm
tube
should
be
used.
(Refer
to
the
page
on
weight
ring
selection.)
The
relation
between
the
usable
cartridge
weight
(incl.
headshells,
etc.)
and
the
arm
tubes
is
shown
in
Chart
1.
Turntable mat
Piattente! ler matte
Tapis de plateau
Turntable platter
Piattenteller
Motorwelle
Motor shaft
Axe de moteur
Plateau
Remove
the
transport
screws
{Two
red
screws)
Retirer
les
2
vis
de
transport
rouges
Transporischrauben
entfernen
(Zwei
rote
Schrauben)

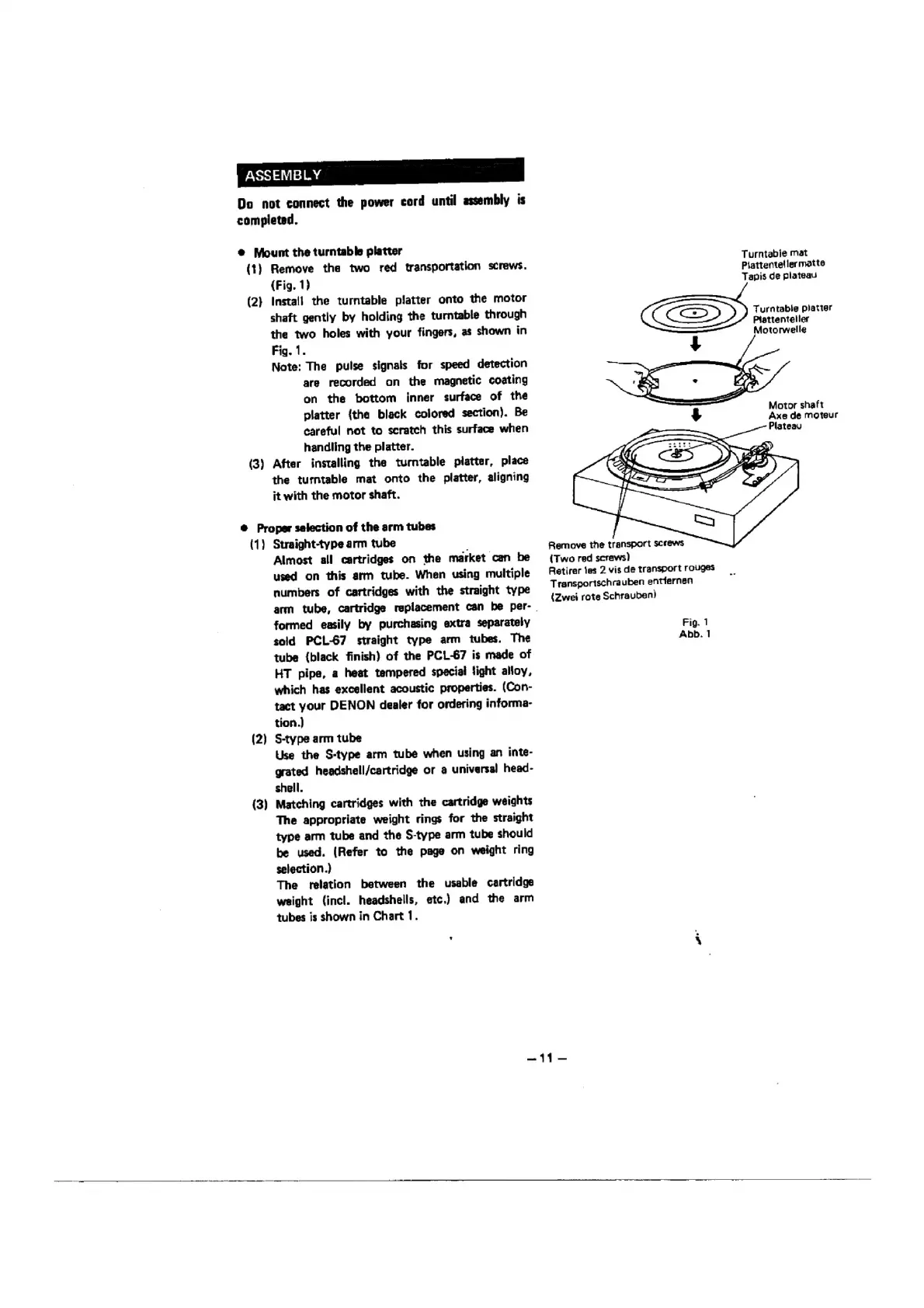

Fig. 1
Abb. 1
-~1W-—
