Denon DP-80 - Page 2

WARNING:
This Model DP-80 is designed to be operated on AC 100
Volts power supply. Therefore, this appliance must be
connected to AC 100V output of a separated winding type
step-down transformer. The capacity of the step-down
transformer should be 50 Volt-ampere or more.
If this is neglected, this appliance may fail to satisfy its
specifications of both performance and SAFETY.
SAFETY PRECAUTIONS:
Always use an isolating step-down transformer as discribed For setting up the record player;
above. A) Do not damage the power cord by placing a heavy
© Replace always with correct parts having correct rating, object on it, or by pinching it between angular ob-
shape and material, etc. Especially the component with jects. Do not fix the power cord by nails, etc. on
shading and A\ mark must be replaced only by the spe- wall.
cified component for safety reasons. Make sure any metal object such as needle, hair pin

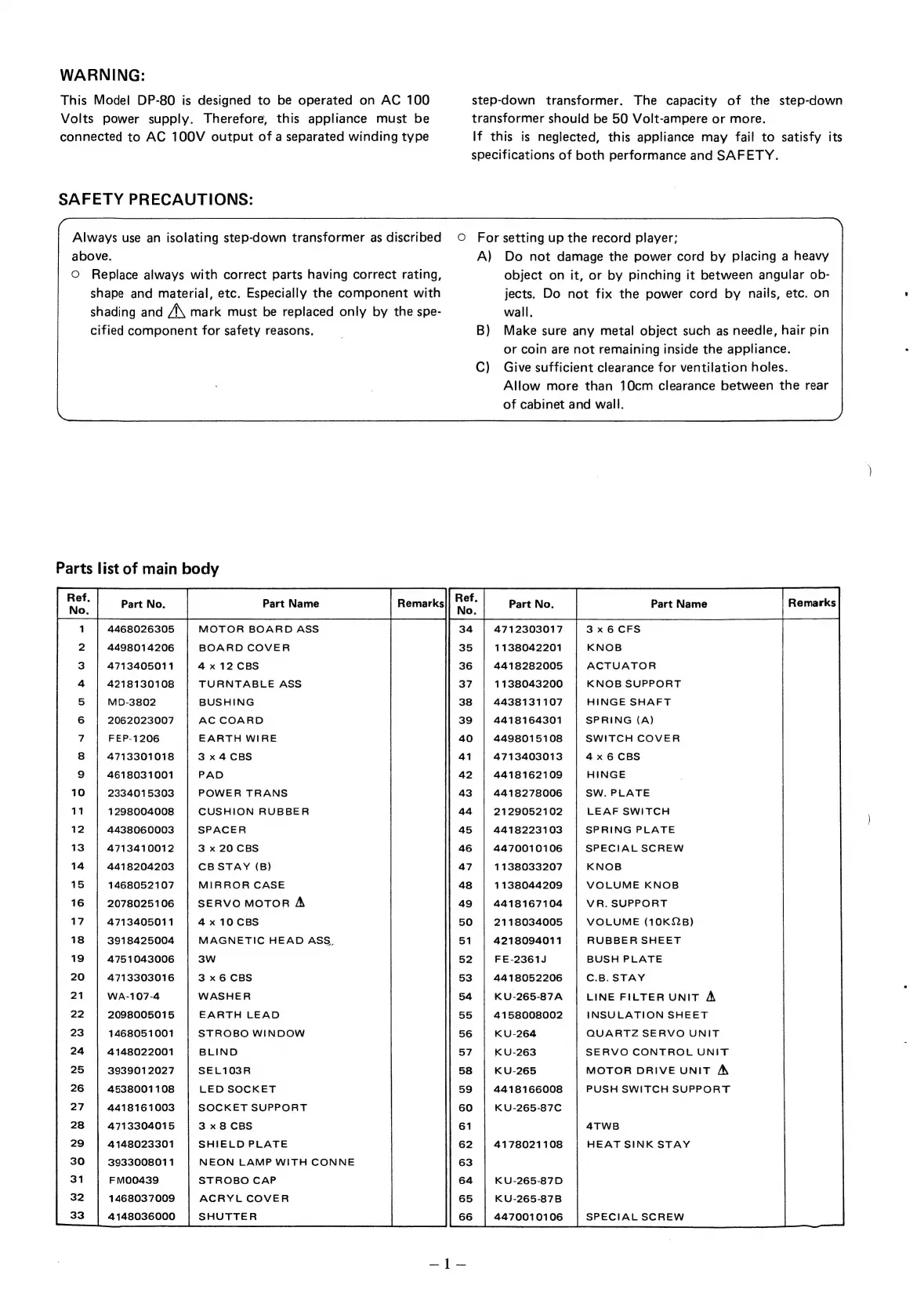

Parts list of main body
Coe NN NN ne, 5 Mac Nn San
on Oo BW ND @
4468026305
4498014206
4713405011
4218130108
MD-3802
2062023007
FEP-1206
4713301018
4618031001
2334015303
1298004008
4438060003
4713410012
4418204203
1468052107
2078025106
4713405011
3918425004
4751043006
4713303016
WA-107-4
2098005015
1468051001
4148022001
3939012027
4538001108
4418161003
4713304015
4148023301
3933008011
FM00439
1468037009
4148036000
MOTOR BOARD ASS
BOARD COVER
4x12CBS
TURNTABLE ASS
BUSHING
AC COARD
EARTH WIRE
3 x4CBS
PAD
POWER TRANS
CUSHION RUBBER
SPACER
3 x 20 CBS
CB STAY (B)
MIRROR CASE
SERVO MOTOR A
4x 10CBS
MAGNETIC HEAD ASS,
3W
3x6 CBS
WASHER
EARTH LEAD
STROBO WINDOW
BLIND
SEL103R
LED SOCKET
SOCKET SUPPORT
3x8CBS
SHIELD PLATE
NEON LAMP WITH CONNE
STROBO CAP
ACRYL COVER
SHUTTER
or coin are not remaining inside the appliance.
Give sufficient clearance for ventilation holes.
Allow more than 10cm clearance between the rear
of cabinet and wall.
4712303017
1138042201
4418282005
1138043200
4438131107
4418164301
4498015108
4713403013
4418162109
4418278006
2129052102
4418223103
4470010106
1138033207
1138044209
4418167104
2118034005
4218094011
FE-2361J
4418052206
KU-265-87A
4158008002
KU-264
KU-263
KU-265
4418166008
KU-265-87C
4178021108
KU-265-87D
KU-265-87B
4470010106
3x6CFS
KNOB
ACTUATOR
KNOB SUPPORT
HINGE SHAFT
SPRING (A)
SWITCH COVER
4x6CBS
HINGE
SW. PLATE
LEAF SWITCH
SPRING PLATE
SPECIAL SCREW
KNOB
VOLUME KNOB
VR. SUPPORT
VOLUME (10K2B)
RUBBER SHEET
BUSH PLATE
C.B. STAY
LINE FILTER UNIT A
INSULATION SHEET
QUARTZ SERVO UNIT
SERVO CONTROL UNIT
MOTOR DRIVE UNIT A
PUSH SWITCH SUPPORT
4TWB
HEAT SINK STAY
SPECIAL SCREW
