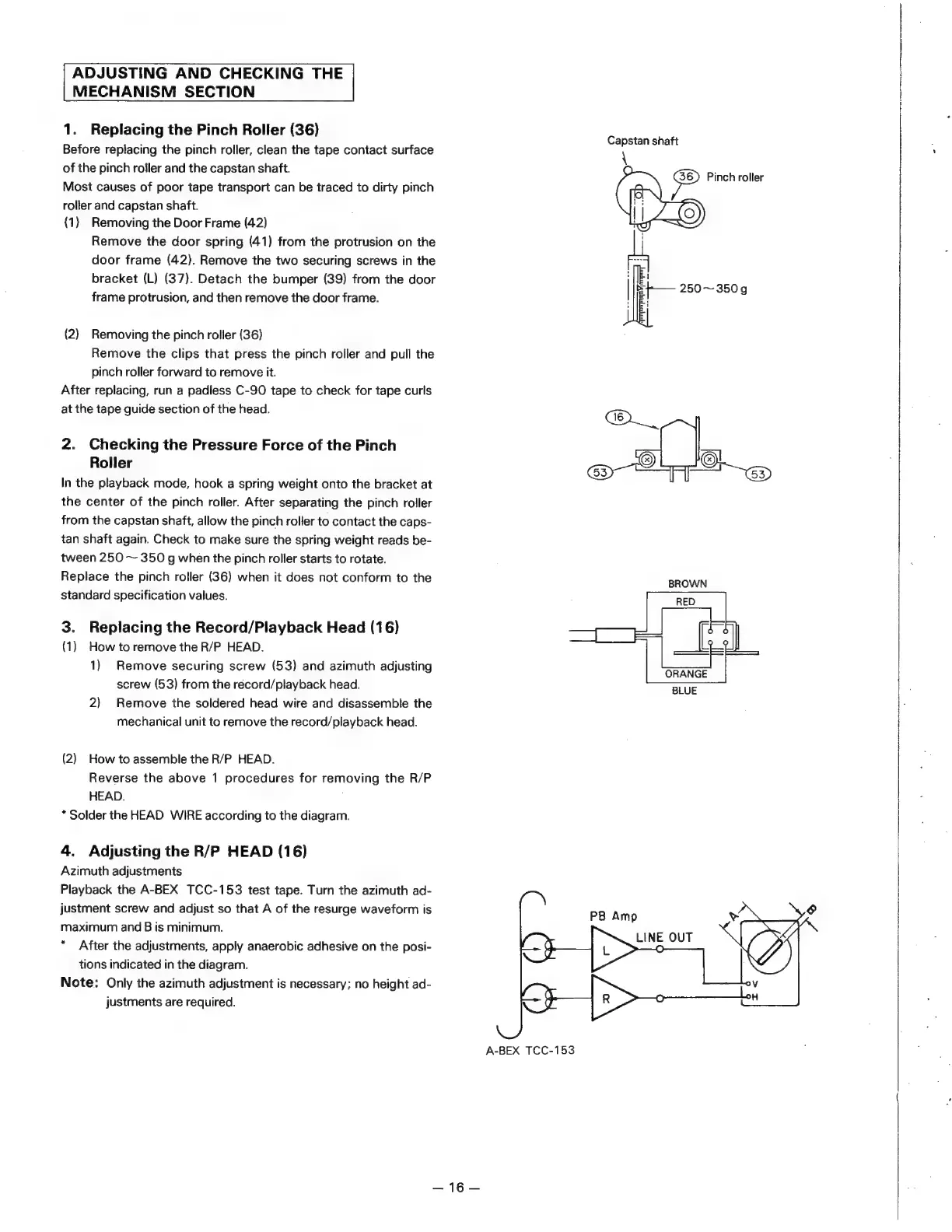

ADJUSTING
AND
CHECKING
THE
|
MECHANISM
SECTION
|
1.
Replacing
the
Pinch
Roller
(36)
Before
replacing
the
pinch
roller,
clean
the
tape
contact
surface
of
the
pinch
roller
and
the
capstan
shaft.
Most
causes
of
poor
tape
transport
can
be
traced
to
dirty
pinch
roller
and
capstan
shaft.
(1)
Removing
the
Door
Frame
(42)
Remove
the
door
spring
(41)
from
the
protrusion
on
the
door
frame
(42).
Remove
the
two
securing
screws
in
the
bracket
(L)
(37).
Detach
the
bumper
(39)
from
the
door
frame
protrusion,
and
then
remove
the
door
frame.
(2)
Removing
the
pinch
roller
(36)
Remove
the
clips
that
press
the
pinch
roller
and
pull
the
pinch
roller
forward
to
remove
it.
After
replacing,
run
a
padless
C-90
tape
to
check
for
tape
curls
at
the
tape
guide
section
of
the
head.
2.
Checking
the
Pressure
Force
of
the
Pinch
Roller
In
the
playback
mode,
hook
a
spring
weight
onto
the
bracket
at
the
center
of
the
pinch
roller.
After
separating
the
pinch
roller
from
the
capstan
shaft,
allow
the
pinch
roller
to
contact
the
caps-
tan
shaft
again.
Check
to
make
sure
the
spring
weight
reads
be-
tween
250
~
350
g
when
the
pinch
roller
starts
to
rotate.
Replace
the
pinch
roller
(36)
when
it
does
not
conform
to
the
standard
specification
values.
3.
Replacing
the
Record/Playback
Head
(16)
(1)
How
to
remove
the
R/P
HEAD.
1)
Remove
securing
screw
(53)
and
azimuth
adjusting
screw
(53)
from
the
récord/playback
head.
2)
Remove
the
soldered
head
wire
and
disassemble
the
mechanical
unit
to
remove
the
record/playback
head.
(2)
How
to
assemble
the
R/P
HEAD.
Reverse
the
above
1
procedures
for
removing
the
R/P
HEAD.
*
Solder
the
HEAD
WIRE
according
to
the
diagram.
4.
Adjusting
the
R/P
HEAD
(16)
Azimuth
adjustments
Playback
the
A-BEX
TCC-153
test
tape.
Turn
the
azimuth
ad-
justment
screw
and
adjust
so
that
A
of
the
resurge
waveform
is
maximum
and
B
is
minimum.
*
After
the
adjustments,
apply
anaerobic
adhesive
on
the
posi-
tions
indicated
in
the
diagram.
Note:
Only
the
azimuth
adjustment
is
necessary;
no
height
ad-
justments
are
required.
ee,
A-BEX
TCC-153
Capstan
shaft
BROWN
ORANGE
BLUE
