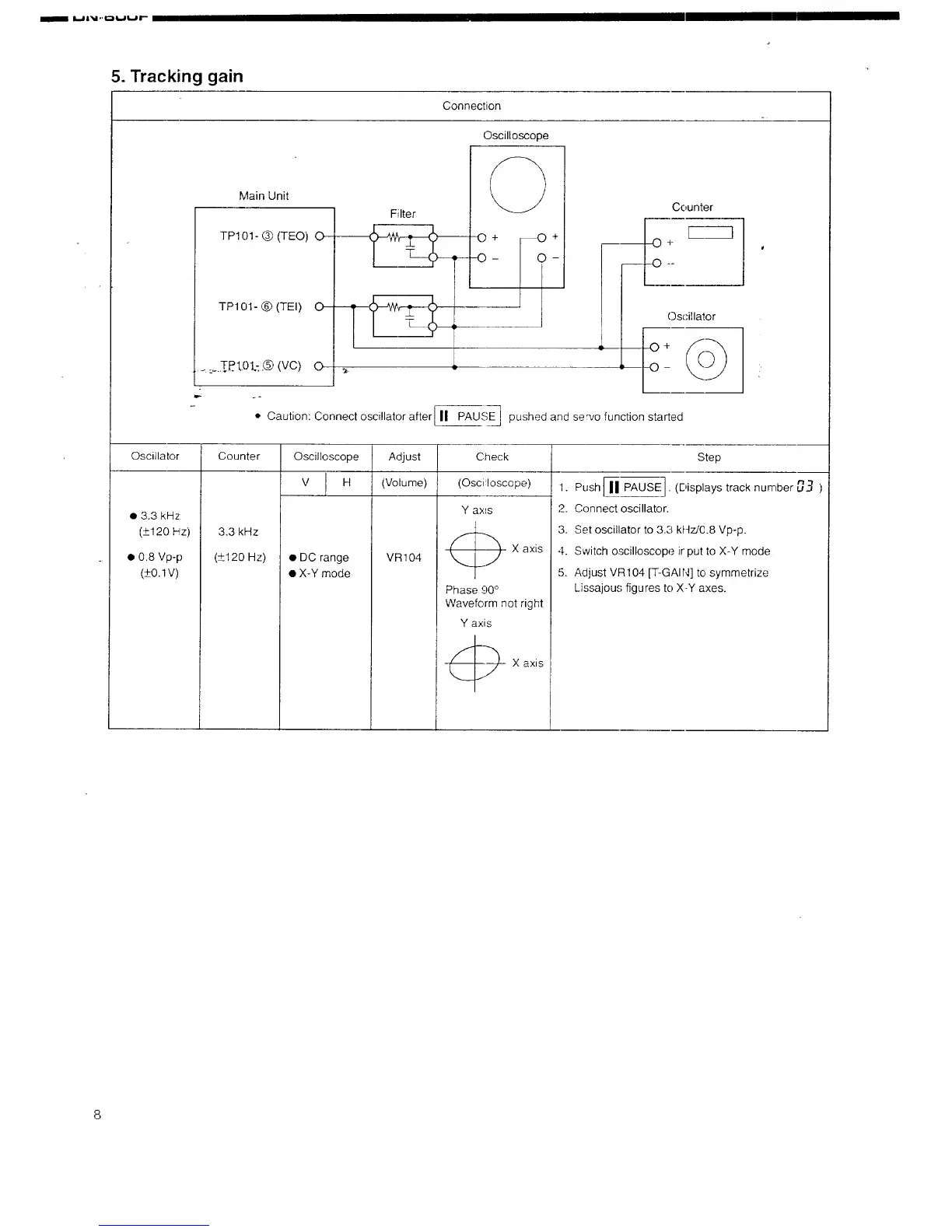

5. Tracking gain
Connection
Oscilloscope
Main Unit
TP101- (_) (TEO) O_
TP101- 0 (TEl) O--
......T,P.t01.:.®(VC) 0
Filter
Counter
Oscillator
• Caution: Connect oscillator afterhl PAUSE] pushed and sewo function started
Oscillator Counter Oscilloscope Adjust
V H (Volume)
• 3.3 kHz
(_+120Hz)
• 0.8 Vp-p
(±011V)
3.3 kHz
(+_120Hz) • DC range
• X-Y mode
VR 104
Check
(Osci !oscope)
Y ax_s
'_ x axis
Phase 90 °
Waveform not right
Y axis
Step
1. Push [_ PAUSE I . (Displays track number _.._ )
2. Connect oscillator.
3. Set oscillator to 3,3 kHz/0.8 Vp-p.
4. Switch oscilloscope ir put to X-Y mode
5. Adjust V [T-GAIN] to symmetrize
Lissajou figures to X-Y axes.
To Next Page
