Denon PMA-A110 User Guide

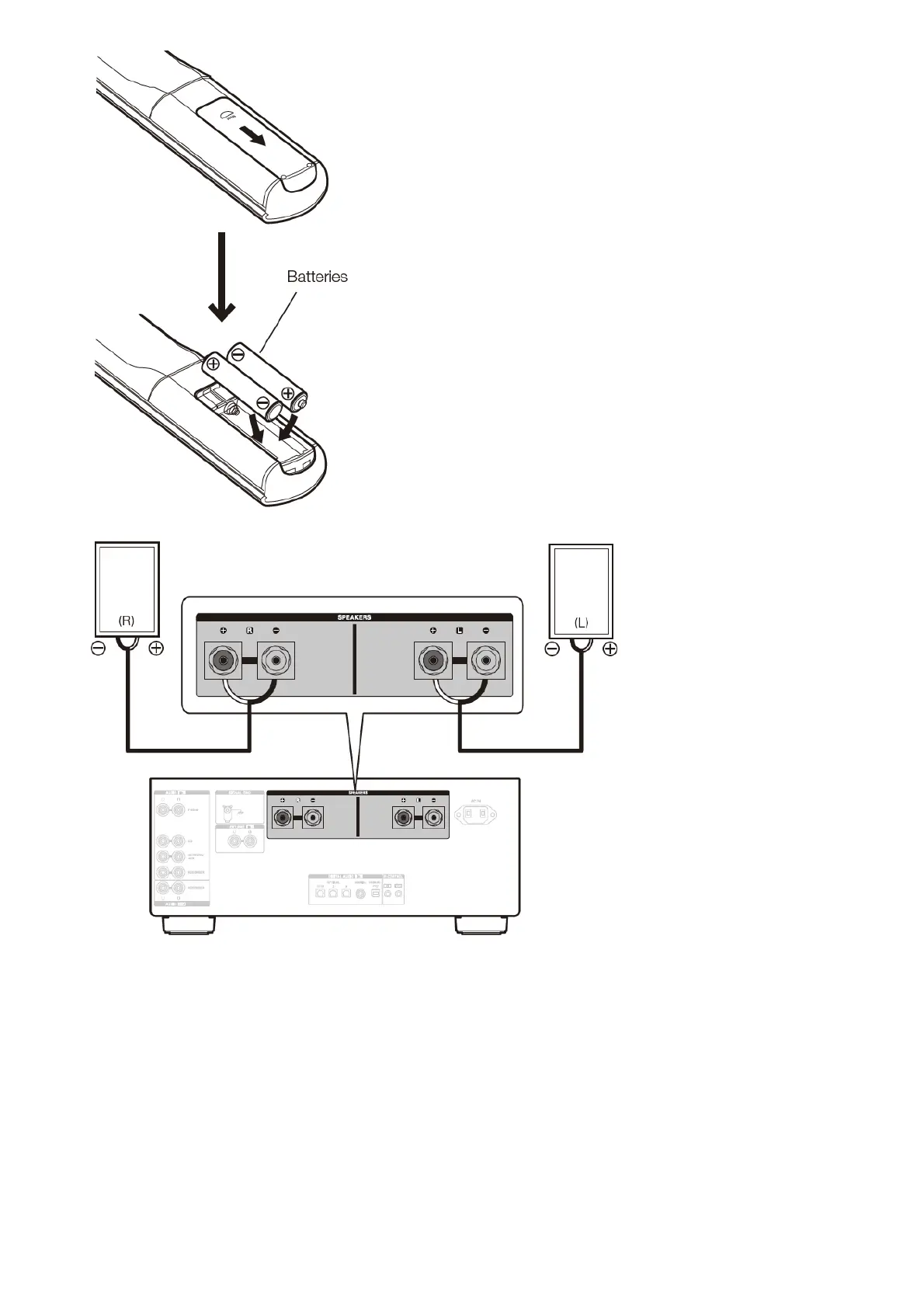

2. Connect the speakers to PMA-A110
Connecting The Speaker Cables
Peel off about 3/8 inch (10 mm) of sheathing from the tip of the speaker cable, then either twist the core wire
tightly or apply solder to it.

Denon PMA-A110 Specifications

General

Input Sensitivity MM	2.5 mV / 47 kOhm
Treble Control	±8 dB at 10 kHz
Bass Control	±8 dB at 100 Hz
Standby Consumption	0.2 W
Dimensions	434 x 182 x 450 mm
Total Harmonic Distortion	0.007%
Frequency Response	5 Hz - 100 kHz
Input Sensitivity MC	200 µV / 100 ohm
Power Output (8 Ohm)	80 W (20 Hz - 20 kHz, THD 0.07%)
