Denon PMA-A110 User Guide

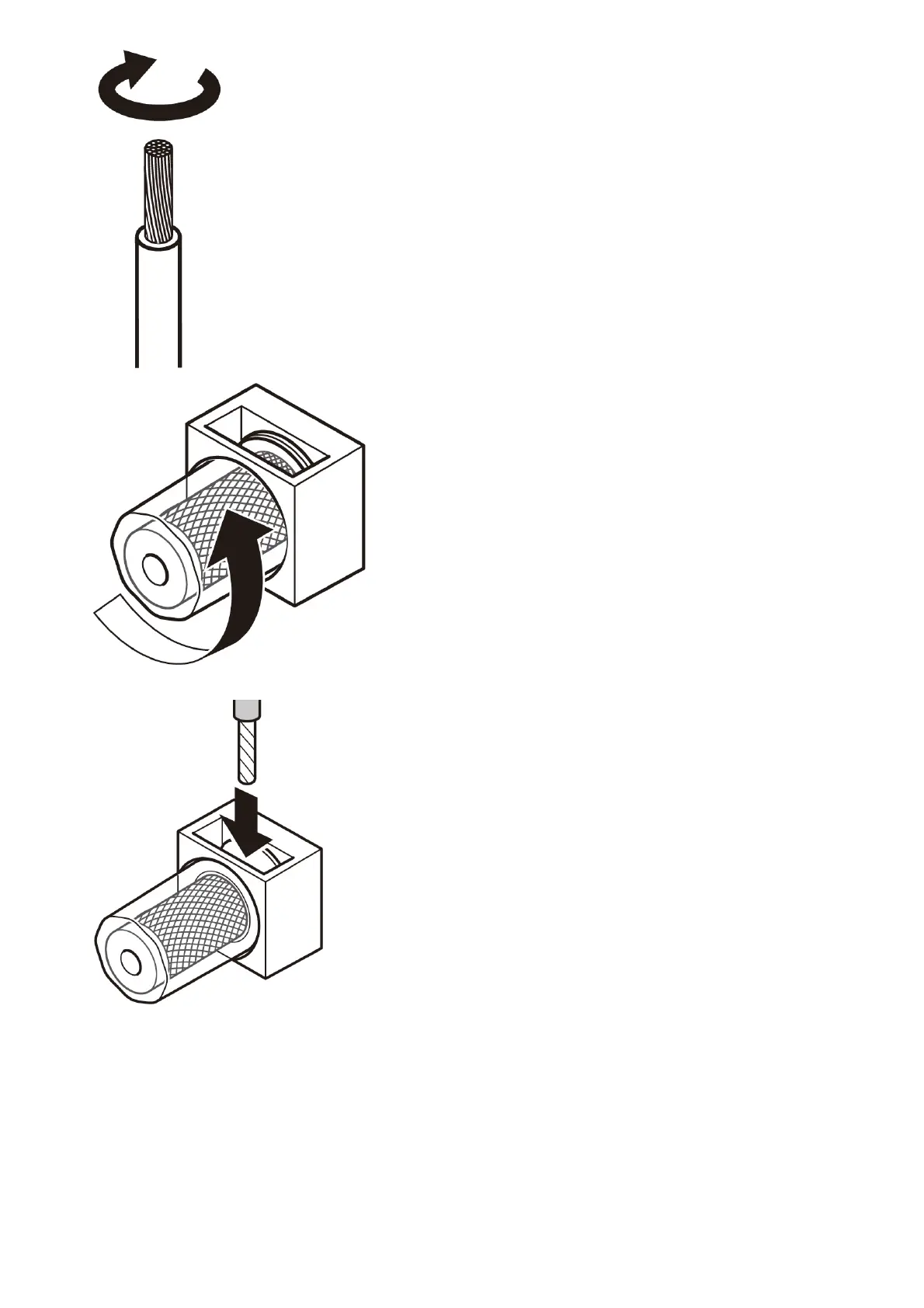

b. Turn the speaker terminal counterclockwise to loosen it.
c. Insert the speaker cable’s core wire to all the way into the speaker
terminal.
d. Turn the speaker terminal clockwise to tighten it.

Denon PMA-A110 Specifications

General

Input Sensitivity MM	2.5 mV / 47 kOhm
Treble Control	±8 dB at 10 kHz
Bass Control	±8 dB at 100 Hz
Standby Consumption	0.2 W
Dimensions	434 x 182 x 450 mm
Total Harmonic Distortion	0.007%
Frequency Response	5 Hz - 100 kHz
Input Sensitivity MC	200 µV / 100 ohm
Power Output (8 Ohm)	80 W (20 Hz - 20 kHz, THD 0.07%)
