RCD-M35DAB/M33
SEMICONDUCTORS
Only major semiconductors are shown, general semiconductors etc. are omitted to list.
主な半導体を記載しています。汎用の半導体は記載を省略しています。
1. IC’s

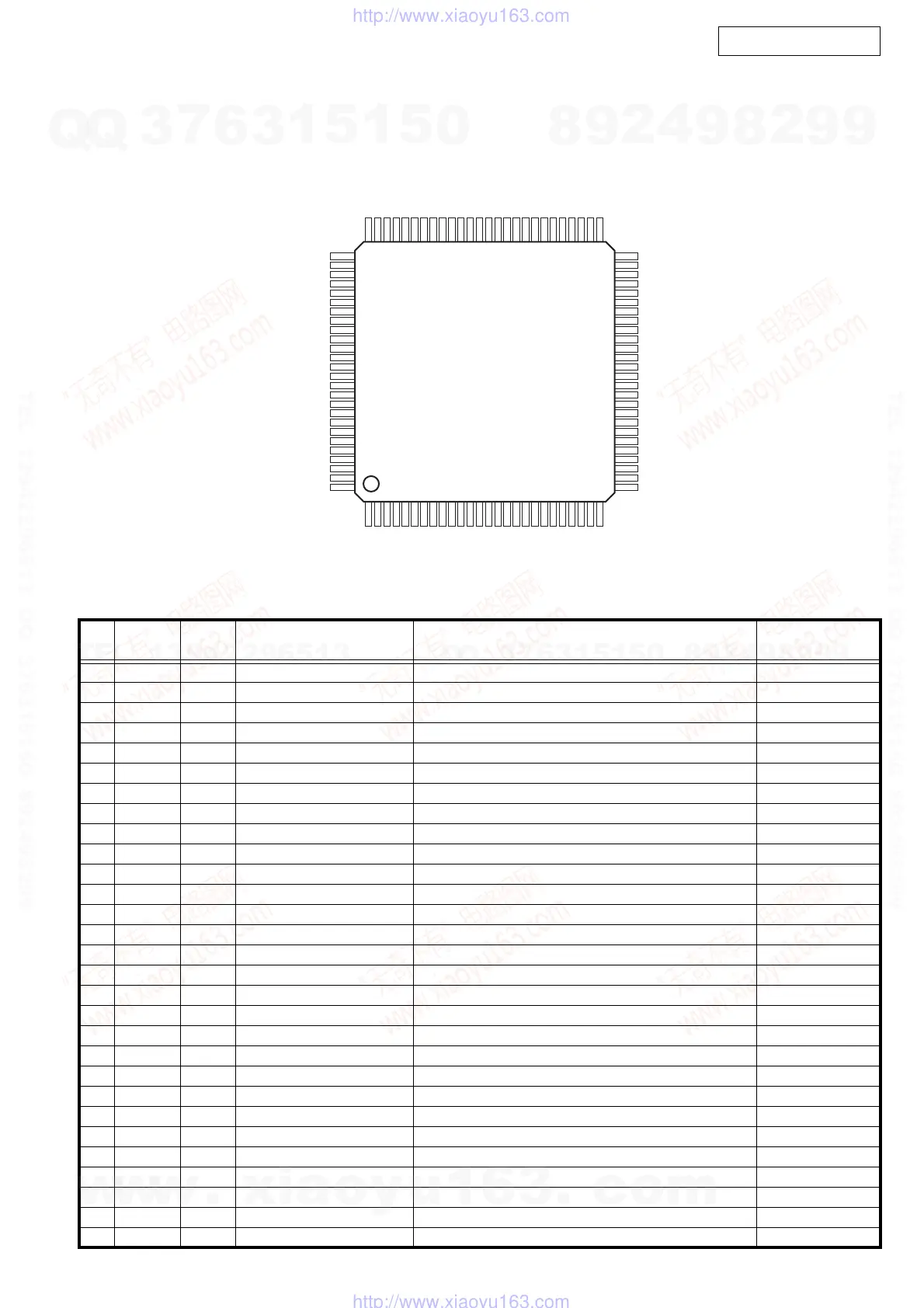

M30624FGPGP (IC802)
M30624FGPGP Terminal Function
Pin
No.
Port
Function
Port
setting
Port Name Explanation
Output of Standby
& Default
1 P94 O Not Used: N. C. L
2 P93 O FL RESET Reset output to FLD L
3 SOUT3 SO FLDA Serial Data output to FLD L
4 SIN3 O Not Used: N. C. HI-Z
5 CLK3 SO FLCK Serial Clock output to FLD L
6 BYTE (VSS) GND -
7 CNVSS I FLASH CNVss Select input of Flash rom write Mode HI-Z
8 P87 O Not Used: N. C. L
9 P86 O Not Used: N. C. L
10 RESET I RESET Reset input HI-Z
11 XOUT XTAL (16MHz) Xtal output -
12 VSS (VSS) GND -
13 XIN XTAL (16MHz) Xtal input -
14 VCC (VCC) Positive power -
15 NMI I (PullUp) Pull up HI-Z
16 INT2 INT PROTECT/SP PROTECTION Protect Signal input HI-Z
17 INT1 INT CDREQ Interrupt request from CD MPU HI-Z
18 INT0 INT /DBRXD DENON BUS Data input (interrupt input) HI-Z
19 P81 I 50/60 50Hz/60Hz AC Input HI-Z
20 P80 O MREQ Interrupt request to CD MPU L
21 P77 O Not Used: N. C. L
22 P76 O Not Used: N. C. HI-Z
23 TA2IN I VOL JOGB VOL encoder Pulse-B input HI-Z
24 TA2OUT I VOL JOGA VOL encoder Pulse-A input HI-Z
25 P73 O FLCS Chip Enable output to FLD L
26 P72 O MSCLK Serial Clock output from CD MPU L
27 P71 SI MDI Serial Data input from CD MPU L
28 P70 SO MDO Serial Data output to CD MPU L
29 TXD1 SO FLASH TxD DATA BUS (Flash rom write) DATA output L
