Denon S-102 - Page 53

53
S-102

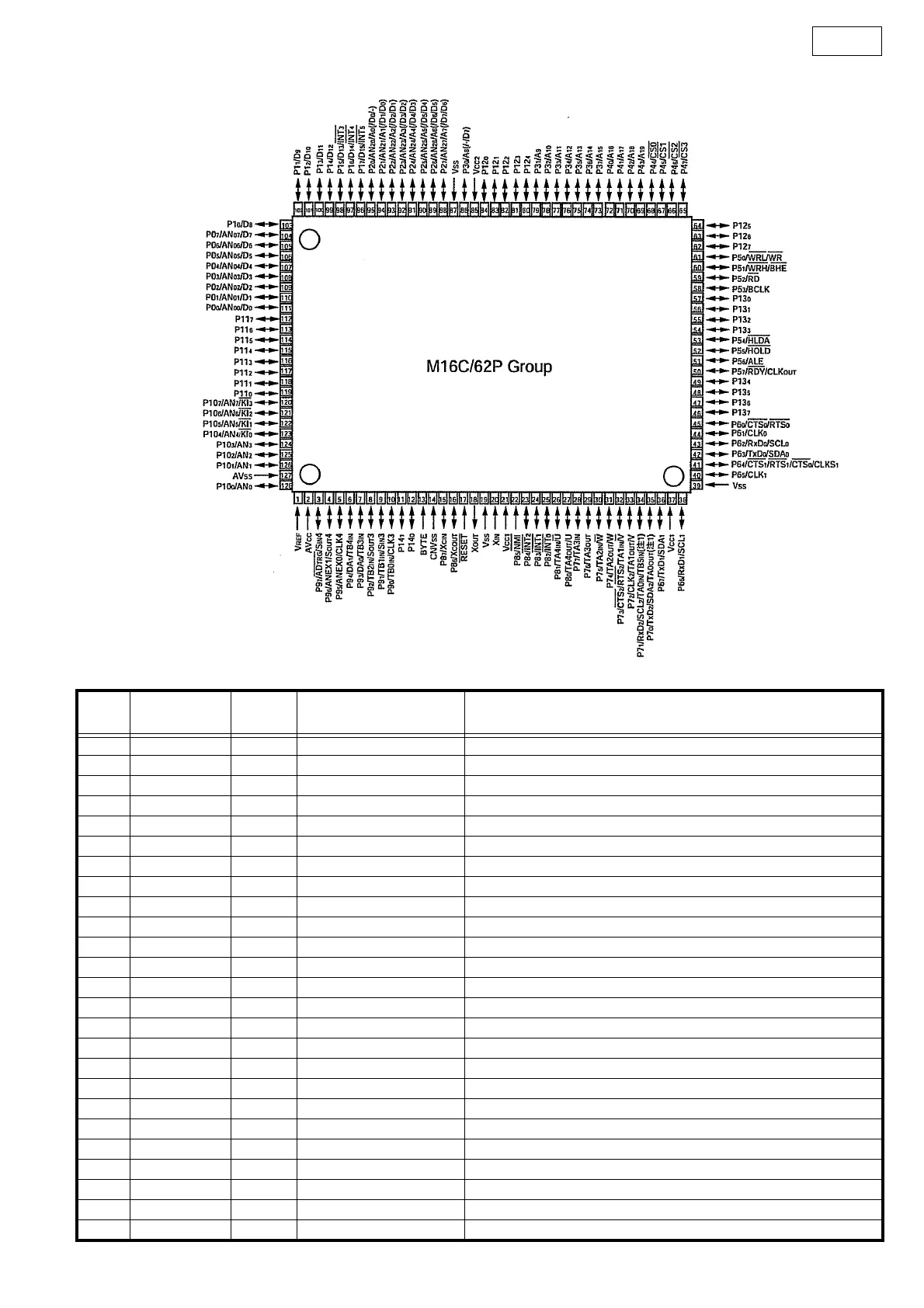

M30627FHPGP (IC301: 1U-3836)
Pin
No
Port
Function
Port
setting
Port Name Explanation
1 VREF - VREF Reference Voltage Input for A/D converter
2 AVCC - AVCC Positive power
3 P97/SIN4 I DSP_MISO Serial Data input from DSP
4 P96/SOUT4 O DSP_MOSI Serial Data output to DSP
5 P95/CLK4 O DSP_CK Serial Clock output to DSP
6 P94 O DSP_PWR [DSP Power ON/OFF output]
7 P93 O FL_CS Chip Enable output to FLD
8 P92/SOUT3 O FL_DOUT Serial Data output to FLD
9 P91/SIN3 O /FL_RST Reset output to FLD
10 P90/CLK3 O FL_CLK Serial Clock output to FLD
11 P141 O /VMONI_SELB Select signal output of VIDEO OUTPUT(L:AUX1/2,H:DVD).
12 P140 O /FLI_RST Reset output to FLI2310
13 BYTE - BYTE GND
14 CNVCS - CNVSS Select input of Flash Memory write Mode
15 P87 O ON/_STBY Main POWER ON/STANDBY switching output. H:ON
16 P86 O /VMONI_SELA Select signal output of VIDEO OUTPUT (H:AUX1, L:AUX2)
17 RESET I RST Reset input
18 XOUT O X1 Xtal output
19 VSS - VSS GND
20 XIN I X2 Xtal input
21 VCC1 - VCC1 Positive power
22 P85/NMI I /NMI Positive power
23 P84/INT2 I /DIR_INT Interrupt input from DIR
24 P83/INT1 INT /BE_AUDIO_RST Audio Reset input from ESS
25 P82/INT0 INT BE_CS CS Interrupt input from ESS
