Denon S-52 - Page 100

SIGNAL LINE
f
87654321
A
B
C
D
E
F

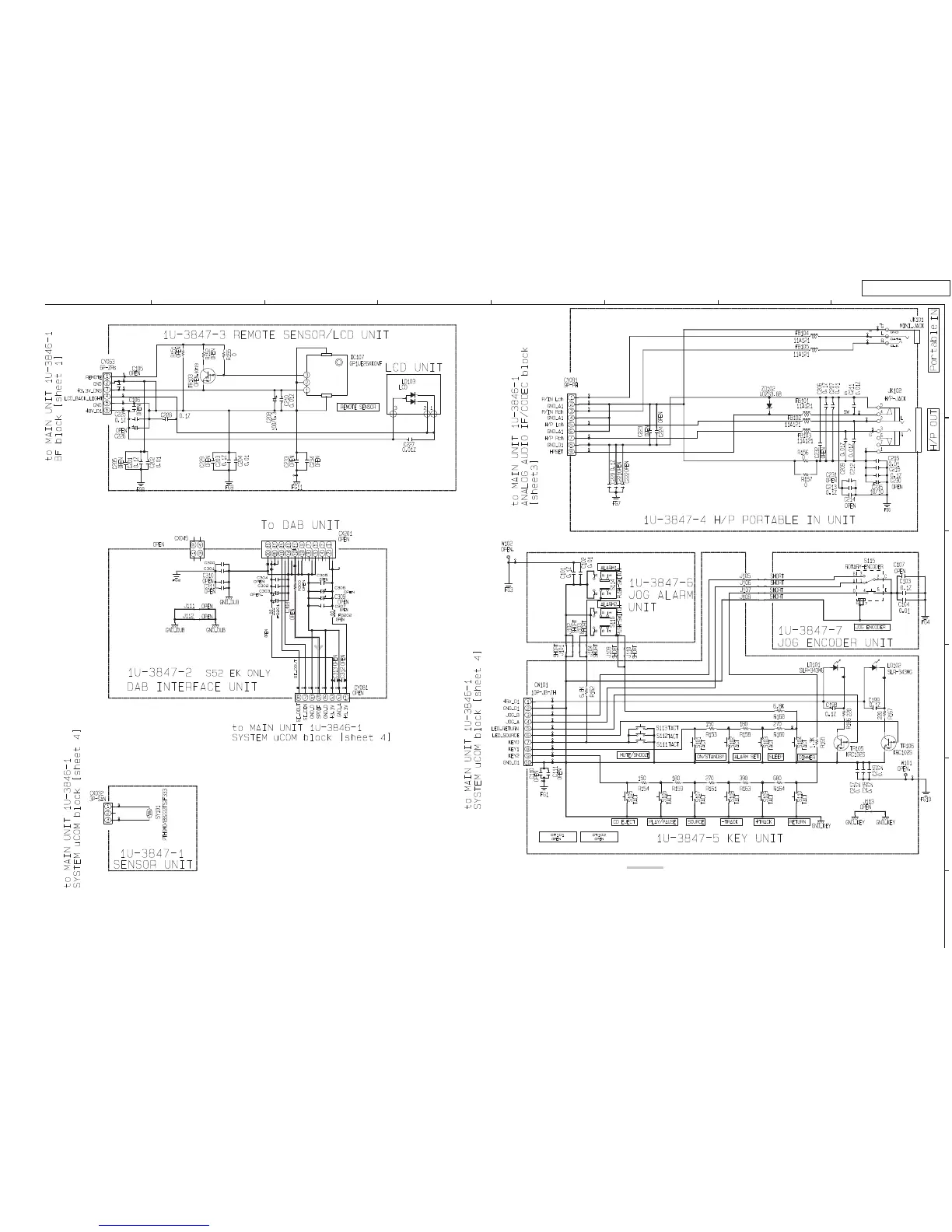

SCHEMATIC DIAGRAMS (5/7)
S-52 / S-52DAB / S-32
SCHEMATIC DIAGRAMS (5/7)
1U-3847 POWER AMP/KEY UNIT(1/1)
1U-3847-1 SENSOR UNIT
1U-3847-2 DAB INTERFACE UNIT (EK model only)
1U-3847-3 REMOTE SENSOR/LCD UNIT
1U-3847-4 H/P PORTABLE IN UNIT
1U-3847-5 KEY UNIT
1U-3847-6 JOG ALARM UNIT
1U-3847-7 JOG ENCODER UNIT
Note :
[Sheet 1] : SCHEMATIC DIAGRAMS (1/7), 1U-3846 MAIN UNIT - BF block
[Sheet 2] : SCHEMATIC DIAGRAMS (2/7), 1U-3846 MAIN UNIT - ETHER/USB/WiFi block
[Sheet 3] : SCHEMATIC DIAGRAMS (3/7), 1U-3846 MAIN UNIT - ANALOG AUDIO IF/CODEC block
[Sheet 4] : SCHEMATIC DIAGRAMS (4/7), 1U-3846 MAIN UNIT - SYSTEM uCOM block
