SCHEMATIC DIAGRAMS (6/7)
S-52 / S-52DAB / S-32
SCHEMATIC DIAGRAMS (6/7)

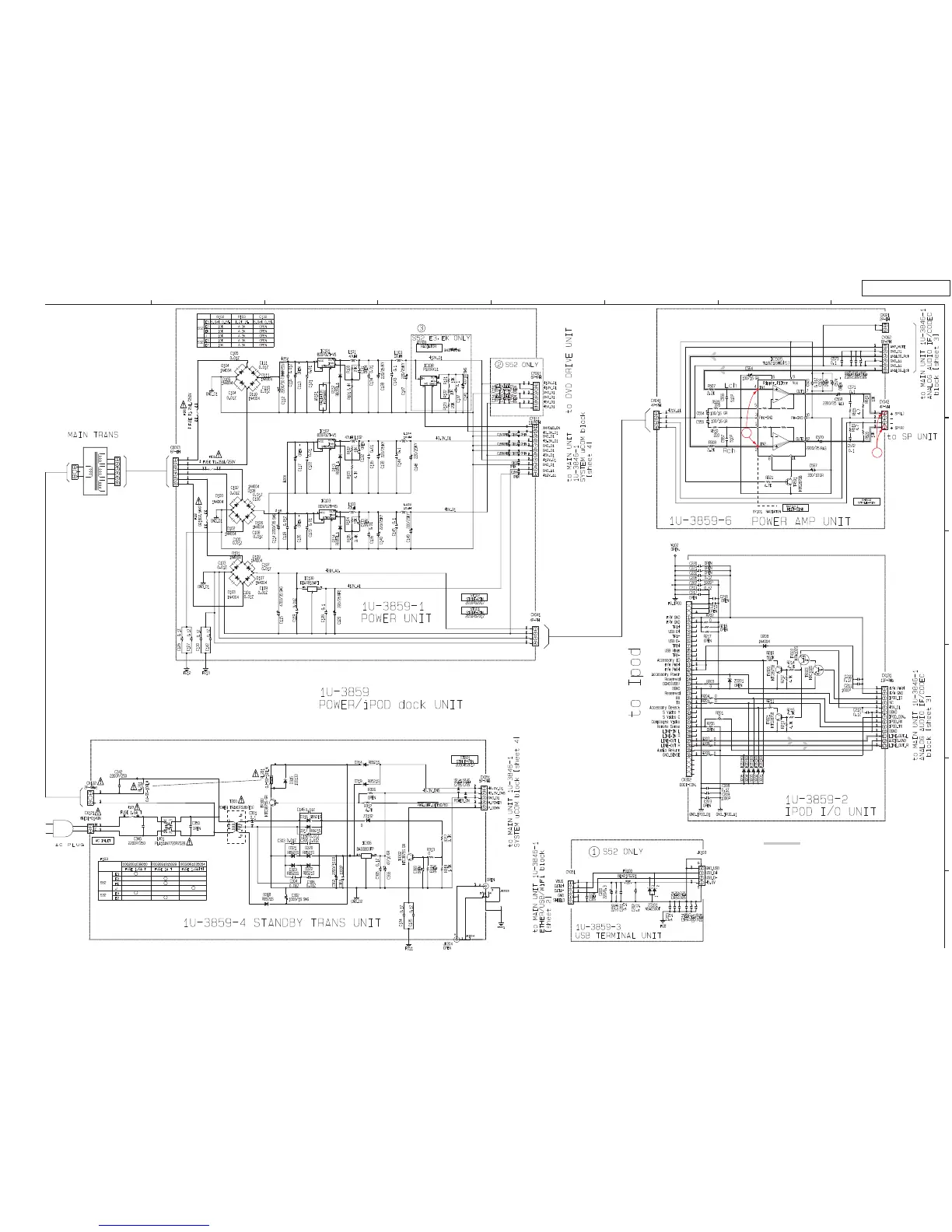

1U-3859 POWER/IPOD dock UNIT(1/1)
1U-3859-1 POWER UNIT
1U-3859-2 IPOD I/O UNIT
1U-3859-3 USB TERMINAL UNIT (S-52 only)
1U-3859-4 STANDBY TRANS UNIT
1U-3859-6 POWER AMP UNIT
Note :
[Sheet 1] : SCHEMATIC DIAGRAMS (1/7), 1U-3846 MAIN UNIT - BF block
[Sheet 2] : SCHEMATIC DIAGRAMS (2/7), 1U-3846 MAIN UNIT - ETHER/USB/WiFi block
[Sheet 3] : SCHEMATIC DIAGRAMS (3/7), 1U-3846 MAIN UNIT - ANALOG AUDIO IF/CODEC block
[Sheet 4] : SCHEMATIC DIAGRAMS (4/7), 1U-3846 MAIN UNIT - SYSTEM uCOM block
