ENGLISH
DEUTSCH FRANCAIS

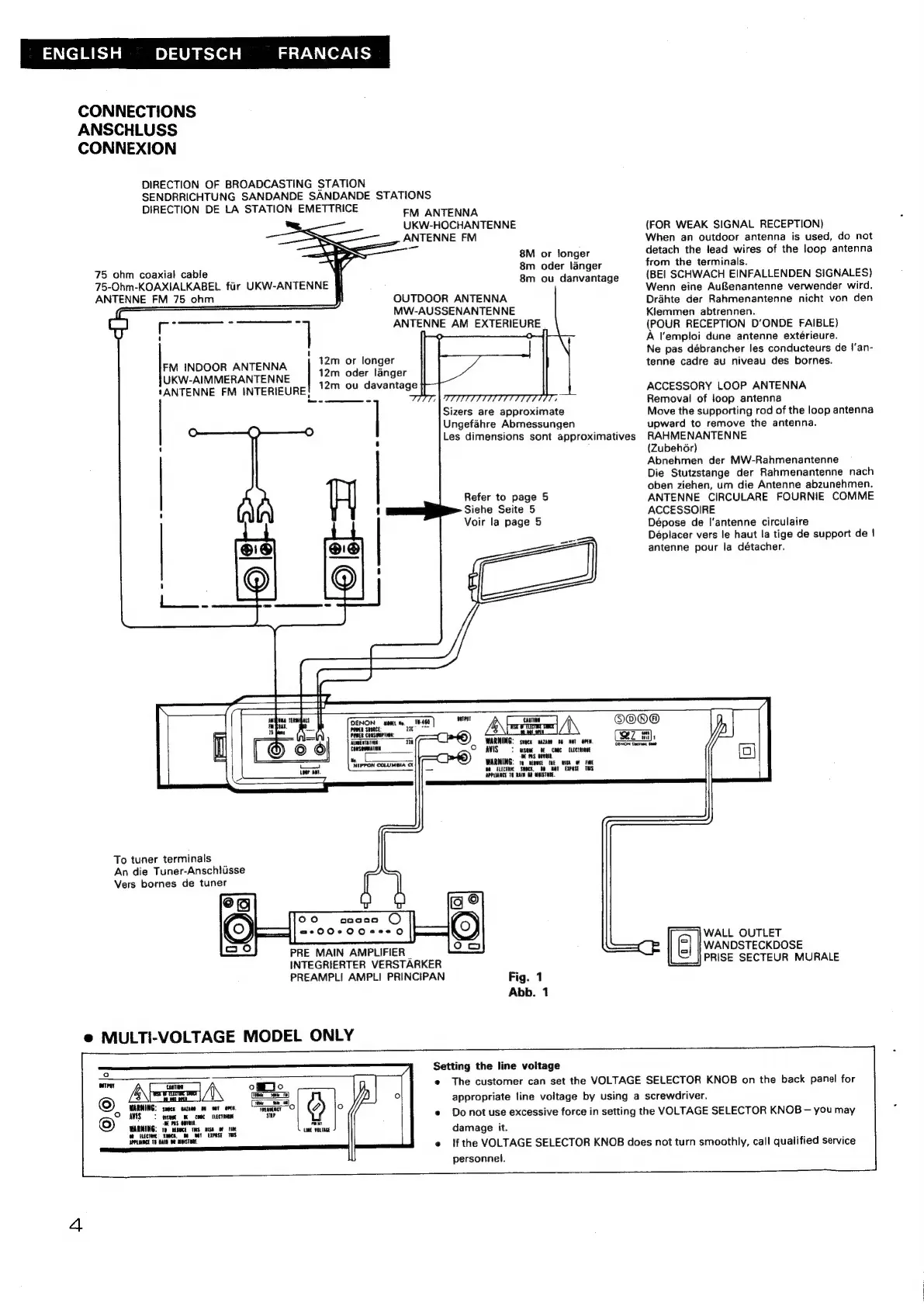

CONNECTIONS
ANSCHLUSS
CONNEXION
DIRECTION OF BROADCASTING STATION
SENDRRICHTUNG SANDANDE SANDANDE STATIONS
DIRECTION DE LA STATION EMETTRICE
=.
y
dy NY,
at
"a
75 ohm coaxial cable A
75-Ohm-KOAXIALKABEL fiir UKW-ANTENNE §
ANTENNE FM 75 ohm
ees SSS
‘ T
FM INDOOR ANTENNA
UKW-AIMMERANTENNE
tANTENNE FM INTERIEURE
’
)
Va
12m or longer
12m oder langer
12m ou ee iB
ae
FM ANTENNA
UKW-HOCHANTENNE
ANTENNE FM
8M or longer
8m oder langer
8m ou danvantage
OUTDOOR ANTENNA
MW-AUSSENANTENNE
ANTENNE AM EXTERIEURE
| ca |
\Sizere are approximate
Ungefahre Abmessungen
Les dimensions sont approximatives
Refer to page 5
Siehe Seite 5
Voir la page 5
BENON wnt me Te iit hs frag] /{\, SOO®
a Shee
POMER CONSUMPTION: WARNING: hand 45a Final 7 wt),
a TATA mt
cee ° NS SHRCK MAZARO DE ROT OPEN. aor depen gums
> SOME BE CRC ELECTRIOUE
WE PAS ROYER.
To tuner terminals
An die Tuner-Anschlusse
Vers bornes de tuner
oo
PRE MAIN AMPLIFIER
ie.
‘NIPPON COLUMBIA CC
ooeao ©
22002002220
WARNING:
au
‘Te BEpUCE TRE RISA
LECT $1 n
APPLIANCE TO RAIN G8 MOISTURE.
mar ans is
{FOR WEAK SIGNAL RECEPTION)
When an outdoor antenna is used, do not
detach the lead wires of the loop antenna
from the terminals.
(BEI SCHWACH EINFALLENDEN SIGNALES)
Wenn eine AuRenantenne verwender wird.
Drahte der Rahmenantenne nicht von den
Klemmen abtrennen.
(POUR RECEPTION D’ONDE FAIBLE)
A Vemploi dune antenne extérieure.
Ne pas débrancher les conducteurs de |’an-
tenne cadre au niveau des bornes.
ACCESSORY LOOP ANTENNA
Removal of loop antenna
Move the supporting rod of the loop antenna
upward to remove the antenna.
RAHMENANTENNE
(Zubeh6ér)
Abnehmen der MW-Rahmenantenne
Die Stutzstange der Rahmenantenne nach
oben ziehen, um die Antenne abzunehmen.
ANTENNE CIRCULARE FOURNIE COMME
ACCESSOIRE
Dépose de l|’antenne circulaire
Déplacer vers le haut la tige de support de |
antenne pour la détacher.
WALL OUTLET
WANDSTECKDOSE
PRISE SECTEUR MURALE
INTEGRIERTER VERSTARKER
PREAMPLI AMPLI PRINCIPAN Fig. 1
Abb. 1
e@
MULTI-VOLTAGE
MODEL
ONLY
Setting the line voltage
The customer can set the VOLTAGE SELECTOR KNOB on the back panel for
appropriate line voltage by using a screwdriver.
Do not use excessive force in setting the VOLTAGE SELECTOR KNOB — you may
damage it.
if the VOLTAGE SELECTOR KNOB does not turn smoothly, call qualified service
personnel.
WARNING: snecs cazsee a0 sat ores.
AVIS} omseat be cme rUceT BORE
EMS TU
WARRING: 1 MN TS MSA OF Ti
oe Eeecrate ‘MT EIPSE TS
‘Arruaeee Te a oe meisieat.
iry
tit VOLTS
