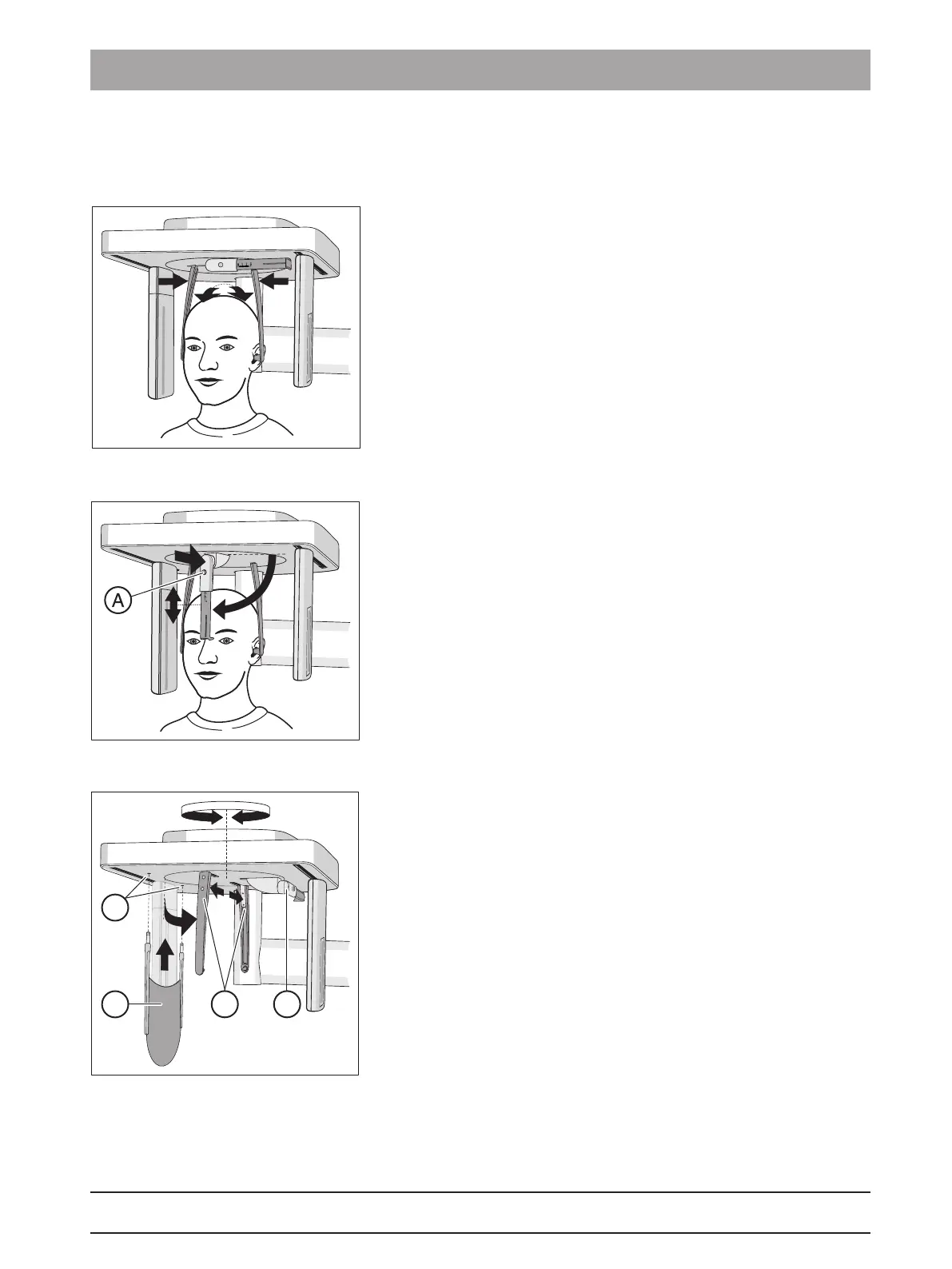

4.1.3 Adjusting/inserting accessory parts on the cephalometer
Adjusting the holder for ear plugs
1.
Grasp the ear plug holders at the very top with both hands.
2.
Simultaneously pull the holders apart or push them together.
Ä The ear plugs are inserted into the patient's outer ear canal.
Adjusting the nose support
1.
Fold down the nose support.
2.
Lightly press and hold latching button
(A)
.
Ä The vertical adjustment is released.
3.
Move the blue section of the nose support upwards or downwards.
4.
Release latching button
(A)
.
Ä The vertical adjustment of the nose support is latched in
position.
Inserting the carpus support plate
ü The holders for the ear plugs
(C)
stand in line with the sensor and
the secondary diaphragm.
1.
Grasp the ear plug holders
(C)
at the very top with both hands.
Simultaneously twist the holders by 90 degrees.
Ä The nose support
(B)
is on the side facing away from the
carpus support plate
(D)
.
2.
Grasp the carpus support plate
(D)
by its sides.
3.
Insert the carpus support plate into both holes
(A)
until it reaches a
stop.
Ä The carpus support plate
(D)
engages with a slight resistance.
