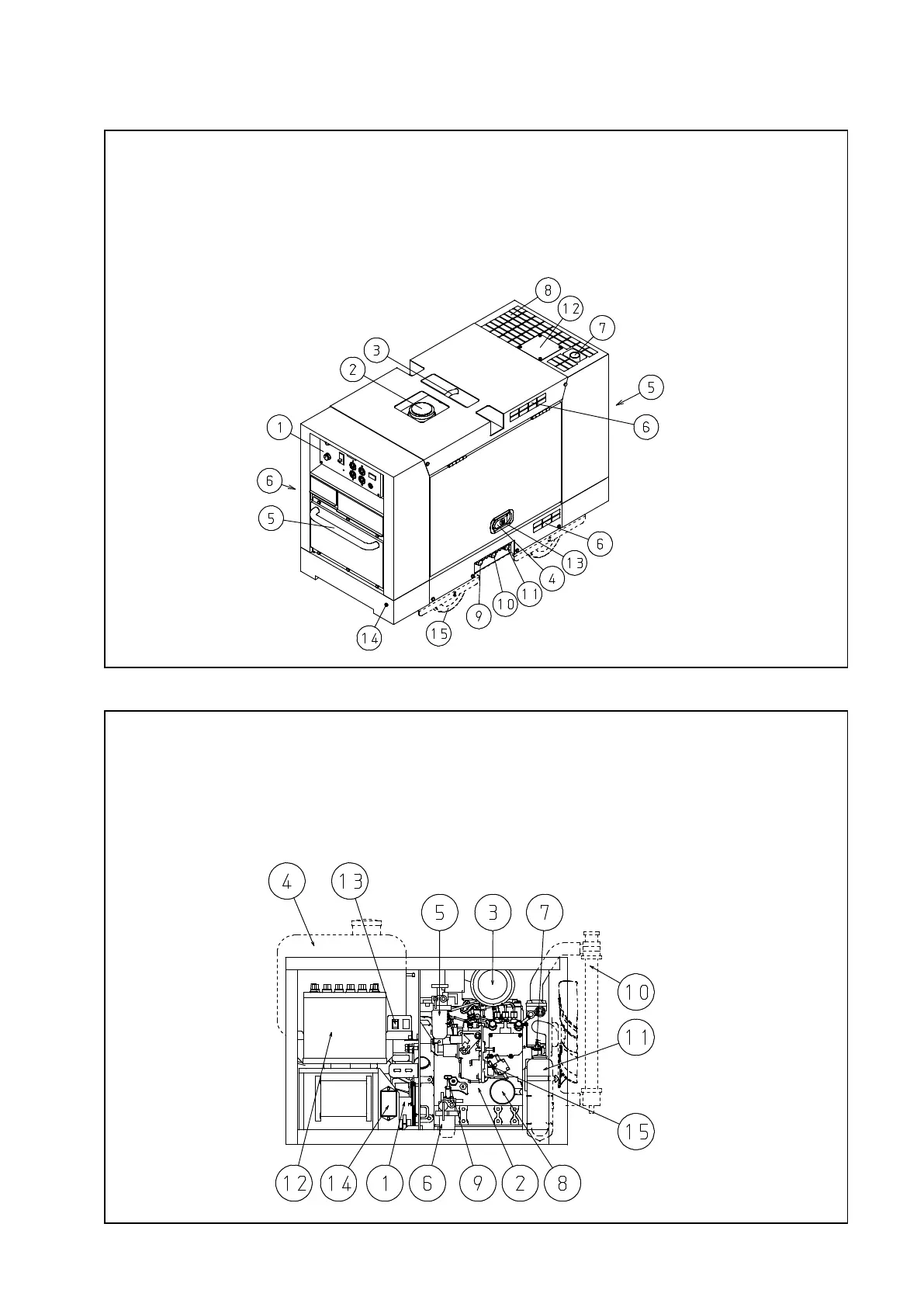

2-1 Outline Drawing and Name of Instrument
① Control panel ⑥ Air intake ⑪ Oil drain
② Fuel tank inlet ⑦ Exhaust ⑫ Radiator inlet
③ Lifting hook ⑧ Ventilation ⑬ Lock
④ Door latch ⑨ Fuel drain ⑭ Ground Terminal
⑤ Bar(for rope) ⑩ Water drain ⑮ Wheel(option)
2-2 Name of Components
① Generator ⑥ Water Separator ⑪ Reserve Tank
② Diesel Engine ⑦ Oil Inlet ⑫ Battery
③ Air Cleaner ⑧ Oil Filter ⑬ Voltage Reduction Switch
④ Fuel Tank ⑨ Oil Level Gauge ⑭ Fuse
⑤ Fuel Filter ⑩ Radiator ⑮ Fuel Priming Lever
