DEPA
®
Air Operated Diaphragm Pumps
This is the translation of the original operating and installation instructions for
DEPA Air Operated Diaphragm Pumps.
For the original version in German, please refer to
www.cranechempharma.com
Note on Declaration of Harmlessness
We want to protect our employees against dangers through contaminated devices
and allow the timely handling of your return.
Please understand that for this reason we can only accept your shipment upon
submission of our declaration of non-objection including return number.
Uponourreceiptofthelled-outdeclarationofnon-objection,youwillreceivea
return number from us.
Pleaseaxthesamethentothepackagesothatitisreadilyvisiblefromthe
outside.
Pos. 2
Pos. 3
Pos. 6
Pos. 4
Pos. 1
Pos. 7

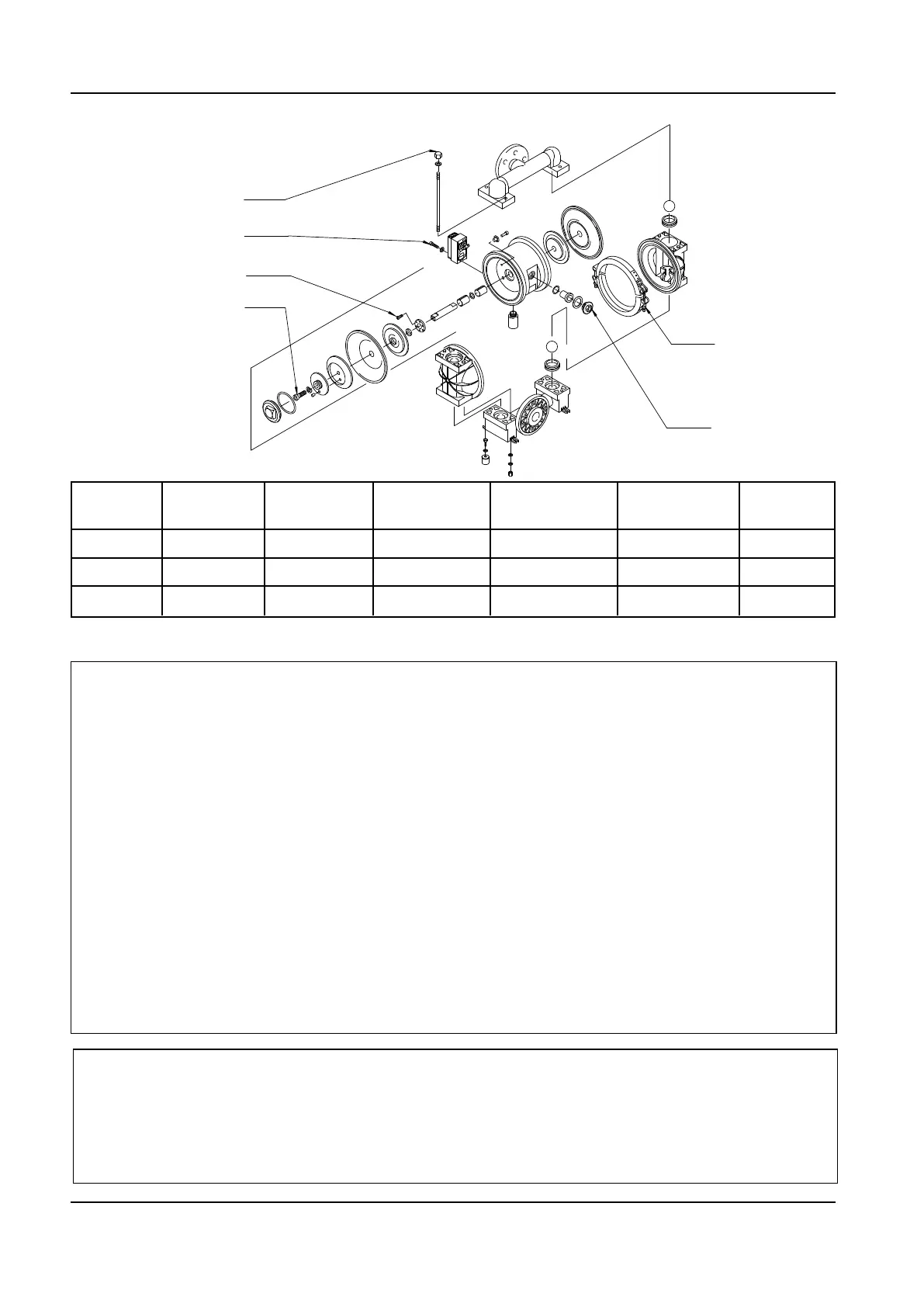

Tightening torques series P, type PM,
size 15-40
Pump size Annchor rod Air inlet Air valve Piston Centre block Clamp band
Pos. 1 Pos. 2 Pos. 3 Pos. 4 cover, Pos. 6 Pos. 7
DL15-PM 5 Nm - - 6 Nm 2,5 Nm 7 Nm
DL25-PM 10 Nm 50 Nm 8 Nm 70 Nm 2,5 Nm 8 Nm
DL40-PM 25 Nm 50 Nm 8 Nm 90 Nm 2,5 Nm 10 Nm
