DeRoyal TEMPLE TOUCH PRO TTP - Page 9

8
TM
Figure1
4. Temple Touch Pro™ - System Descripon
The TTP™ system connuously monitors the paent ’s core
body temperature. The TTP™ system contains the following
components: a Sensor Unit (SU), which is connected to a Sensor
Connecng Unit (SCU) which is connected to the Monitor
Connecng Unit (MCU). The Monitor Connecng Unit (MCU)
isconnectedtoapowersupplyandtotheVitalSignsMonitor
(VSM).
A. MCU
B. SCU
C. SU
D. Extensioncable
E. Monitorextensioncable
F. Power supply
G. VSM
A
DF
E
G
B
C
9
The TTP™ Sensor Unit (SU)
TheSUisanon-sterile,disposablesensingunitwhichisplaced
onthepaent’stemplefromtheinialstagesofmedicalcare
(suchassurgerypreparaon),andmaybeaxedtothepaent’s
temple unl it is no longer required to monitor the paent’s
coretemperature(suchas-upondischargefromPACU).
The SU is comprised of a temperature sensor module, a bio
compableadhesivelayer,withtwoisolaonlayersinbetween.
The TTP™ Sensor Connecng Unit (SCU)
The SCU is a cable with connector suitable to connect the SU
to the SCU.

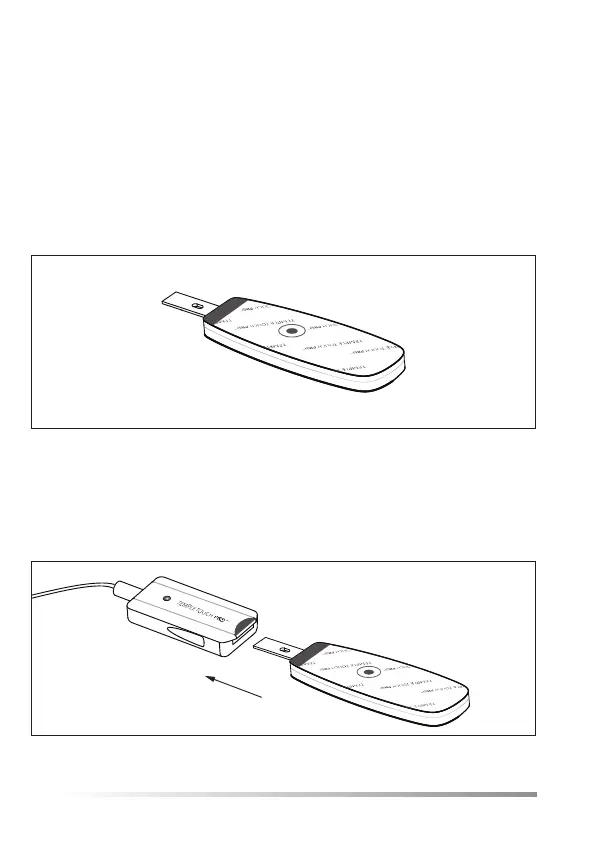

The SU is connected to the SCU as shown below:
Figure2
Figure3
