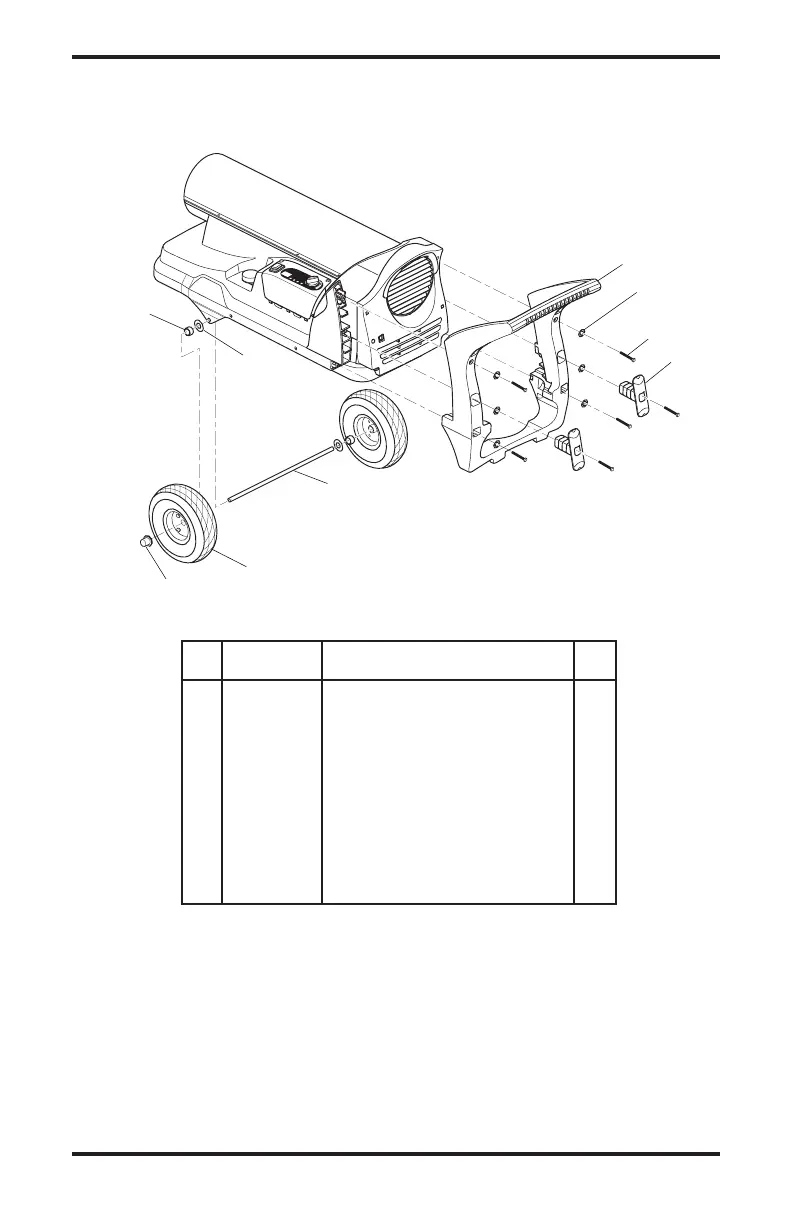

ILLUSTRATED PARTS BREAKDOWN AND PARTS LIST
WHEELS AND HANDLE PARTS LIST
T
e
m
p
e
r
a
t
ur
e
T
e
m
p
e
r
at
ur
a
Th
er
m
os
t
at
T
e
r
m
o
s
t
a
t
o
LO
H
I
I
g
n
it
or
•
E
n
c
en
d
e
d
o
r
Allu
m
e
u
r
V
o
l
t
a
g
e
•
Te
n
s
i
ó
n
•
Te
n
s
io
n
F
l
a
m
e
•
L
l
a
m
a
•
F
l
a
mm
e
S
t
a
r
t
/
R
u
n
E
n
c
i
e
n
d
a
/
O
pe
rac
i
ó
n
D
é
m
ar
r
e/
M
a
r
c
h
e
5
6
4
3
2
1
1
2
6
5
7
8
3
4
9
KEY PART
NO. NUMBER DESCRIPTION QTY.
1 108459-02 Handle/Support 1
2 WP 4C Washer 6
3 116866-01 Screw 6
4 108463-01 Extension Cord Wrap 2
5 M16801-12 Axle 1
6 108468-01 Washer 2
7 113326-01 Wheel Kit (Contains: 2 Wheels, 2
Wheel Spacers and Cap Nuts)
8 M28526 Cap Nut 2
9 113497-01 Wheel Spacer 2
To Next Page
