VENTING INSTALLATION
Continued
Note: Install
restrictor into
inner collar of
replace as
shown.


1
 
5' min. 6' max.
6' min. 12' max.
7' min. 18' max.
8' min. 20' max.
Note: Vertical (V
1
) + Vertical (V
2
) = 40' max.

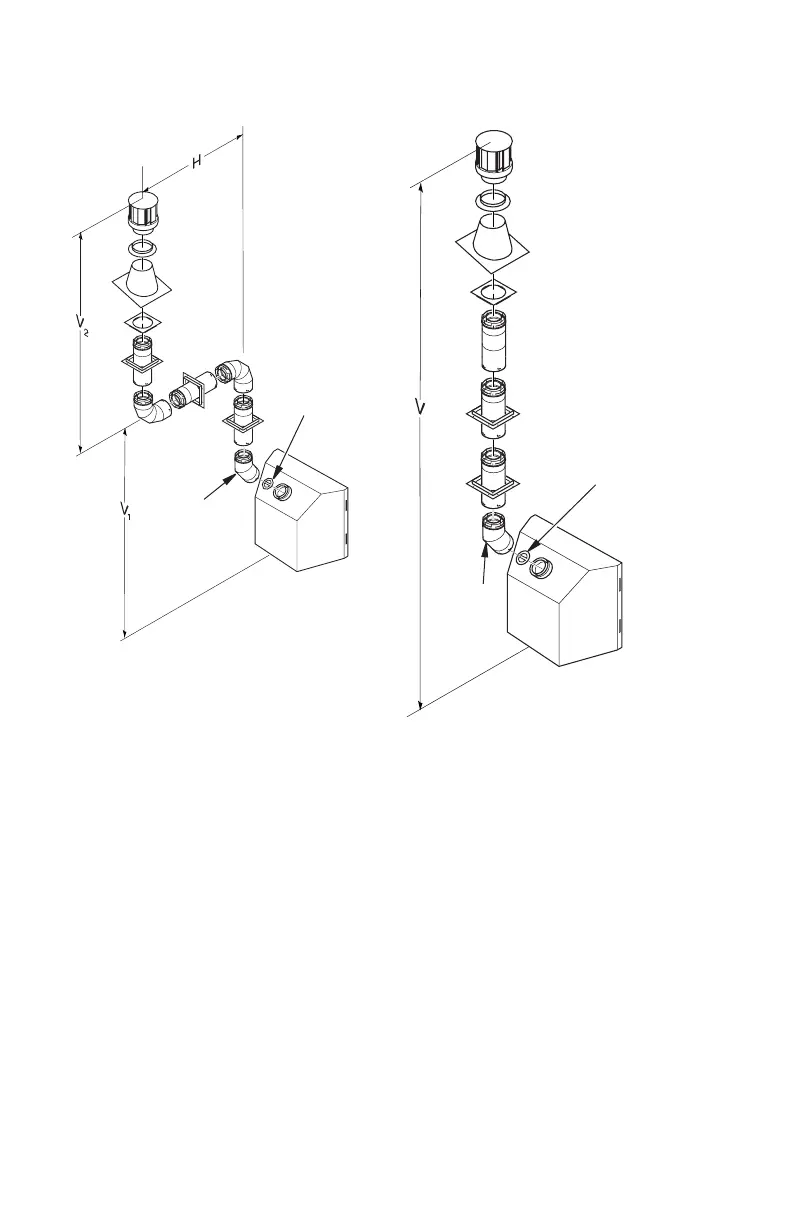

Figure 23 - Vertical Venting
Conguration Using Two 90° Elbows
(Vertical Round High Wind Termination
Shown)
45° Elbow

V = 40' max.
Figure 24 - Vertical Venting
Conguration With No Horizontal Run
(Vertical Round High Wind Termination
Shown)
Note: Install
restrictor into
inner collar of
replace as
shown.
45° Elbow
HIGH ALTITUDE INSTALLATION
Your DESA Heating, LLC direct-vent replace
has been tested and approved for elevations
from 0-2,000 feet (USA) and elevations from
0-4,500 feet (Canada).
When installing this replace at an elevation
above 2,000 feet (in the USA), you may need
to decrease the input rating by changing the
existing burner orice to a smaller size. Re-
duce input 4% for each 1,000 feet above sea
level. Check with your local gas company for
proper orice size identication.
When installing this replace at an elevation
above 4,500 feet (in Canada), check with
local authorities.
Consult your local gas company to help deter-
mine the proper orice for your location.
For assistance with any high altitude in-
stallation, contact DESA Heating, LLC at
1-866-672-6040.
