#Pizza Hut Make Table operating and service manual
22

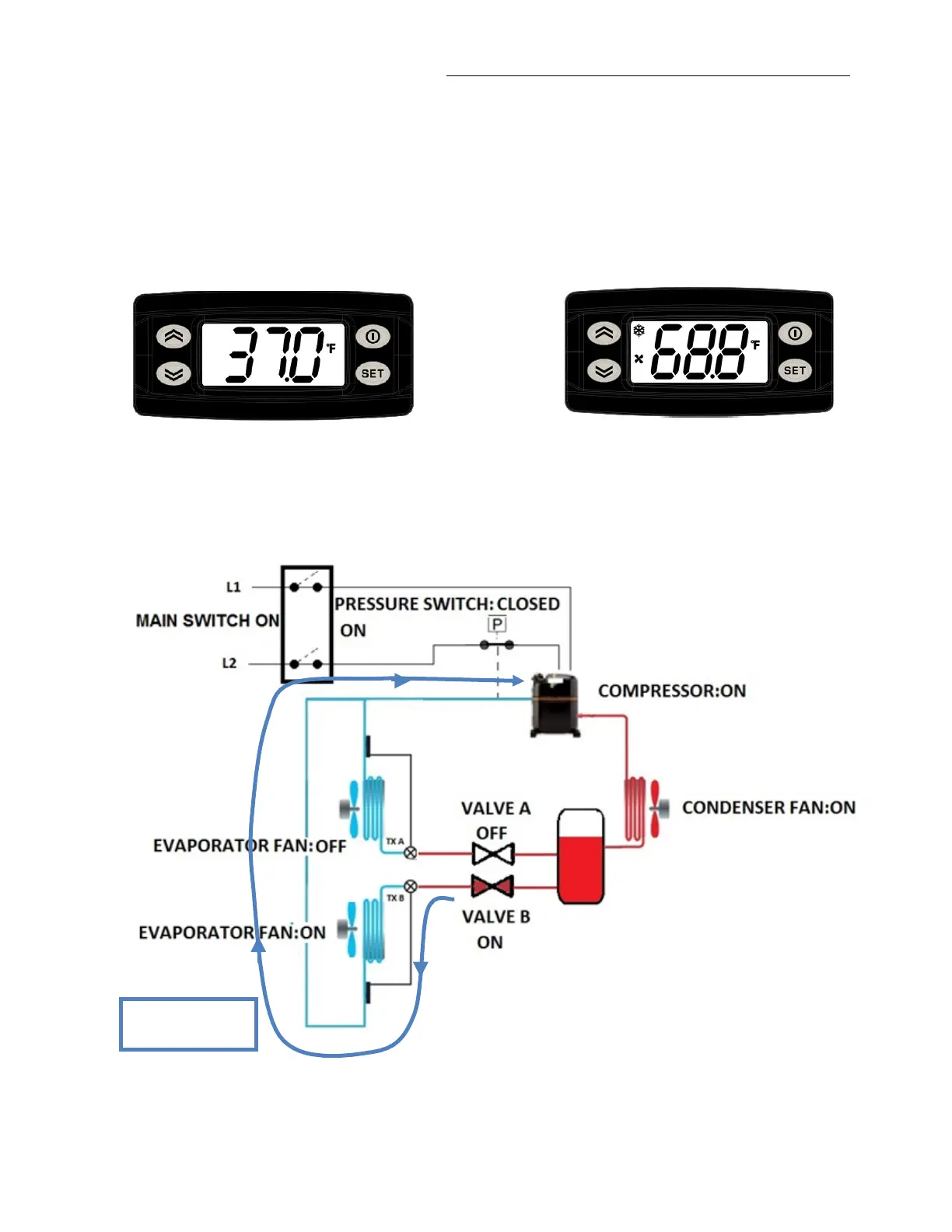

4) ONE OUT OF THE TWO COMPARTMENTS HAVE REACHED THE SET
POINT TEMPERATURE (FOR INSTANCE COUNTER)
Solenoid valve A will de-energize and refrigerant will keep circulating only in circuit B
(Pan Rail). Note that the FAN LED on controller A is turned off.
CIRCUIT B
PAN COOLER
A CONTROLLER
B CONTROLLER
