EAD 20-1300 EAD 32-900 EAD 50-900 EAD 50-900-HAD EAD 70-700-HAD EAD 70-800 EAD 70-800 Sq.1/2 EAD 80-650 EAD 105-500 EAD 105-500-HAD EID 25-1200 EID 32-900 EID 44-1200 EID 65-900 EID 75-800
High Medium Low
Item Description Part no. Qty Qty Wear
H Kit gearbox 36-17 6153973845 1 1 1 X
Wheel 2 stages ø42 - 1 1 1
H0 Internal circlip 30X1.2 6156870590 2 2 2 X
H1 Carrier nal hex r 3.8 6154752150 1 1 1 X
H2 Kit planets 6154701275 1 1 1 X
Planet R3.8 dia36 - 4 4 4
H3 Carrier planet dia36 15t 6154752320 1 1 1 X
H4
Satellite 4.5 (for p&t
gearbox)
6154701280 3 3 3 X
H5 Sun coupling 12t dia36 6153973855 1 1 1 X
Sun coupling 12t dia36 - 1 1 1
Coupling insulant eb4-
eb6-eb8
- 1 1 1
H6 Needle kit 6153976390 1 1 1 X
Needle 3X11.8 - 3 3 3
Needle roller bearing
k3X5X7
- 4 4 4
Needle 3X13.8 - 4 4 4
Needle 1X6.8 - 48 48 48

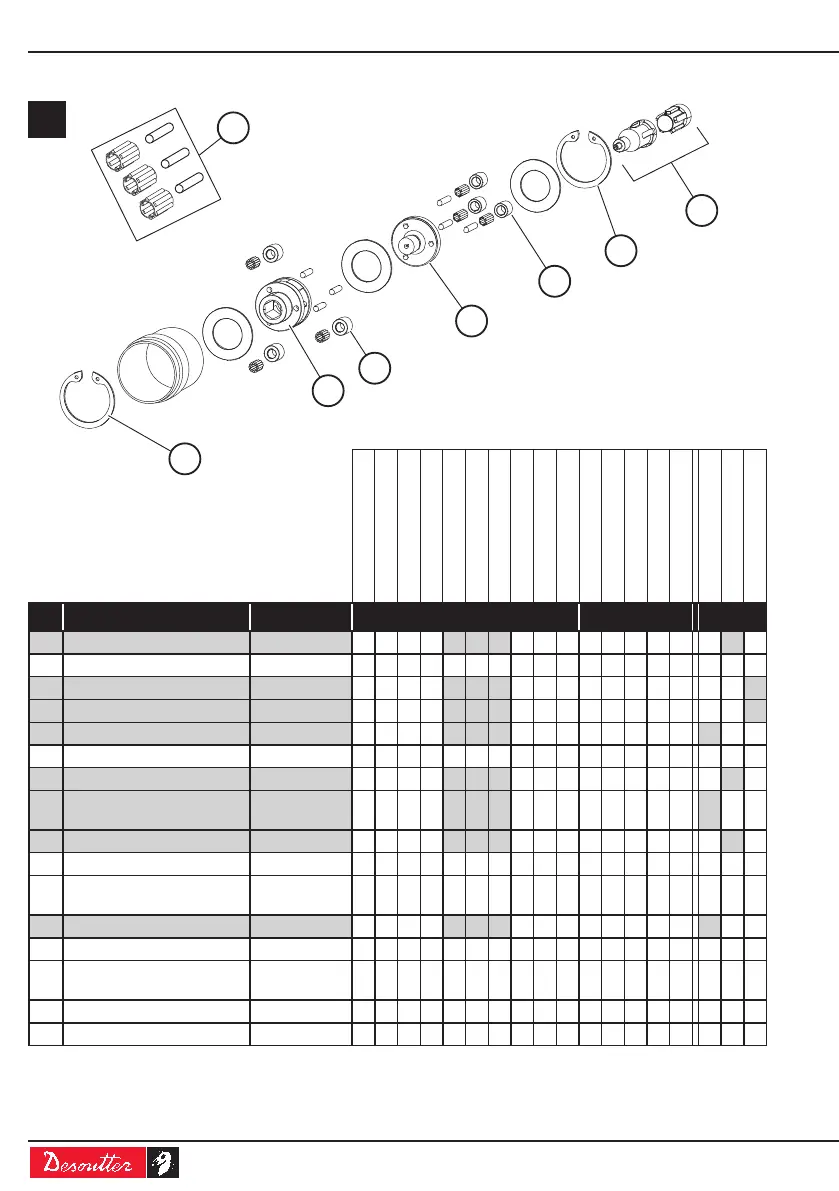

Kit gearbox 36-17
H
H4
H0
H1
H3
H6
H2
H0
H5
