Desoutter EAD - Page 21

6159932570_09
21 / 10404/2014
EAD 20-1300 EAD 32-900 EAD 50-900 EAD 50-900-HAD EAD 70-700-HAD EAD 70-800 EAD 70-800 Sq.1/2 EAD 80-650 EAD 105-500 EAD 105-500-HAD EID 25-1200 EID 32-900 EID 44-1200 EID 65-900 EID 75-800
High Medium Low
Item Description Part no. Qty Qty Wear
H Kit gearbox 43-17 6153973955 1 1 X
Gear ring dia43 45t m0.8 - 1 1
H Kit gearbox 43-23 6153973975 1 1 1 X
Gear ring dia43 45t - 1 1 1
H Kit gearbox 43-27 6153973985 1 X
Gear ring dia43 45t - 1
H0 Circlip inter. 36x1.5 6156870680 2 2 2 2 2 X
H1 Carrier nal dia43 33t 6154752340 1 1 1 1 1 X
H1 Carrier nal dia43 33t 6154752370 1 X
H2 Planet wheel 13t 6154701510 3 3 3 3 3 X
H2 Planet wheel 15t 6154701520 3 X
H3 Carrier planet dia43 18t 6154752330 1 1 X
H3 Carrier planet dia43 18t 6154752350 1 1 1 X
H3 Carrier planet dia43 15t 6154752360 1 X
H4 Planet wheel 17t 6154701530 3 3 X
H4 Planet wheel 18t 6154701540 3 3 3 3 X
H5
Sun coupling 11t dia43
kit
6153973905 1 1 X
Sun coupling 11t dia43 - 1 1
Coupling insulant eb4-
eb6-eb8
- 1 1

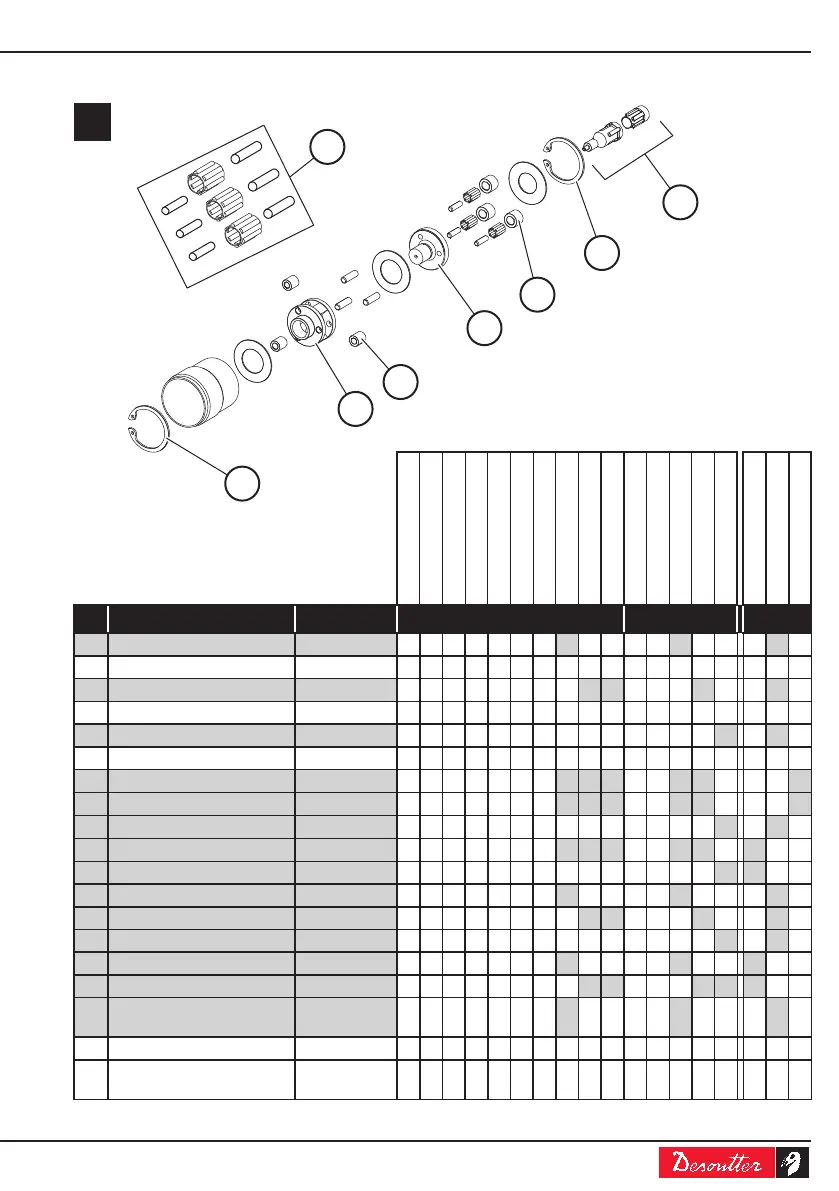

Kit gearbox 43-17, 43-23, 43-27
H
H4
H0
H1
H2
H3
H6
H0
H5
