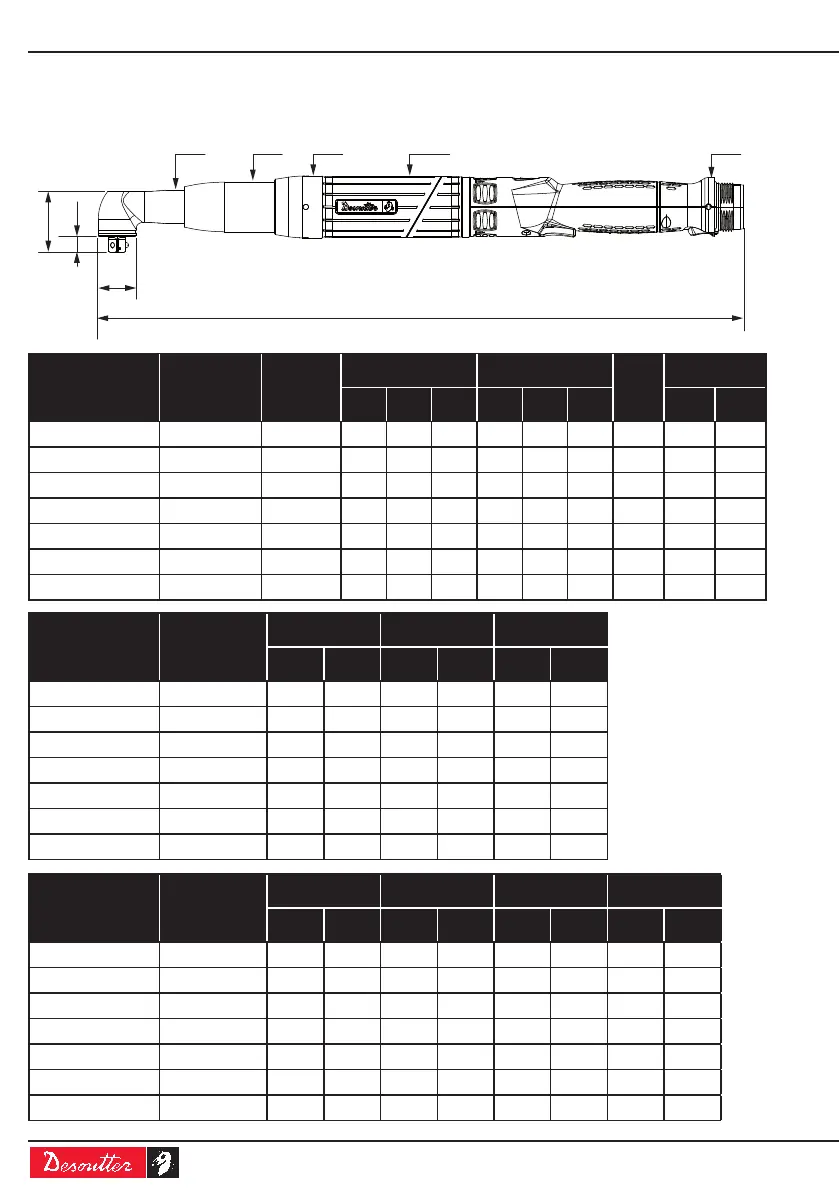

DATA
EAD
Model Part number
Square
size
(inch)
Torque (Nm) Torque (ft.lb)
Speed
(rpm)
Weight
Nom Min Max Nom Min Max kg lb
EAD20-1300 6151656060 Sq. 3/8 18 3 20 13.3 2.2 14.8 1300 1.55 3.41
EAD32-900 6151656070 Sq. 3/8 30 5 32 22.1 3.7 23.6 900 1.55 3.41
EAD50-900 6151656090 Sq. 3/8 45 8 50 33.2 5.9 40.6 900 1.95 4.30
EAD70-800 6151656110 Sq. 3/8 65 12 70 47.9 8.8 51.6 800 2.15 4.74
EAD70-800 Sq.1/2 6151658820 Sq. 1/2 65 12 70 47.9 8.8 51.6 800 2.15 4.74
EAD80-650 6151656120 Sq. 1/2 75 15 80 55.3 11.1 59.0 650 2.55 5.62
EAD105-500 6151656130 Sq. 1/2 90 20 105 66.4 14.8 77.4 500 2.55 5.62
Model Part number
Ø A Ø B D
mm in. mm in. mm in.
EAD20-1300 6151656060 46 1.81 37 1.46 25 0.98
EAD32-900 6151656070 46 1.81 37 1.46 25 0.98
EAD50-900 6151656090 46 1.81 37 1.46 28 1.10
EAD70-800 6151656110 58 2.28 43 1.69 32 1.26
EAD70-800 Sq.1/2 6151658820 58 2.28 43 1.69 32 1.26
EAD80-650 6151656120 58 2.28 48 1.89 40 1.57
EAD105-500 6151656130 58 2.28 48 1.89 40 1.57
Model Part number
h H L Ø C
mm in. mm in. mm in. mm in.
EAD20-1300 6151656060 12 0.47 45.5 1.79 481 18.93 28 1.10
EAD32-900 6151656070 12 0.47 45.5 1.79 481 18.93 28 1.10
EAD50-900 6151656090 12 0.47 51.1 2.01 531 20.91 35 1.38
EAD70-800 6151656110 12 0.47 56.7 2.23 544 21.42 40 1.57
EAD70-800 Sq.1/2 6151658820 17 0.67 62 2.43 544 21.42 40 1.57
EAD80-650 6151656120 17.5 0.69 60.4 2.38 567 22.32 45 1.77
EAD105-500 6151656130 17.5 0.69 60.4 2.38 567 22.32 45 1.77
L
Ø41
H
h
Ø45.7ØAØBD
ØC
