Desoutter EAD - Page 5

6159932570_09
5 / 10404/2014
Model Part number
Torque (Nm) Torque (ft.lb) Speed Weight
Nom Min Max Nom Min Max rpm kg lb.
EAD12-1300-CE10-L47-H10-W22 6151658280 10 3 12 7.4 2.2 8.8 1260 2.1 4.6
EAD18-900-CE10-L47-H15-W22 6151658290 15 5 18 11.1 3.7 13.3 870 2.1 4.6
EAD28-900-CE13-L62-H15-W30 6151658320 15 3 20 11.1 2.2 14.8 900 2.5 5.5
EAD44-670-CE14-L71-H18-W31 6151658330 30 5 32 22.1 3.7 23.6 670 2.6 5.7
EAD65-660-CE17-L78-H24-W30 6151658340 26 5 28 19.2 3.7 20.6 660 3.0 6.6
Model Part number
L Ø A Ø B
mm in. mm in. mm in.
EAD12-1300-CE10-L47-H10-W22 6151658280 542 21.3 46 1.81 37 1.46
EAD18-900-CE10-L47-H15-W22 6151658290 542 21.3 46 1.81 37 1.46
EAD28-900-CE13-L62-H15-W30 6151658320 610 24.0 46 1.81 37 1.46
EAD44-670-CE14-L71-H18-W31 6151658330 632 24.9 58 2.28 43 1.69
EAD65-660-CE17-L78-H24-W30 6151658340 661 26.0 58 2.28 48 1.89
Model Part number
A B C A/F
mm in. mm in. mm in. mm in.
EAD12-1300-CE10-L47-H10-W22 6151658280 10 0.39 22 0.87 65.6 2.58 10 0.39
EAD18-900-CE10-L47-H15-W22 6151658290 15 0.59 22 0.87 65.6 2.58 10 0.39
EAD28-900-CE13-L62-H15-W30 6151658320 15 0.59 30 1.18 84.0 3.31 13 0.51
EAD44-670-CE14-L71-H18-W31 6151658330 18 0.71 31 1.22 93.6 3.68 14 0.55
EAD65-660-CE17-L78-H24-W30 6151658340 24 0.94 30 1.18 102 4.02 17 0.67

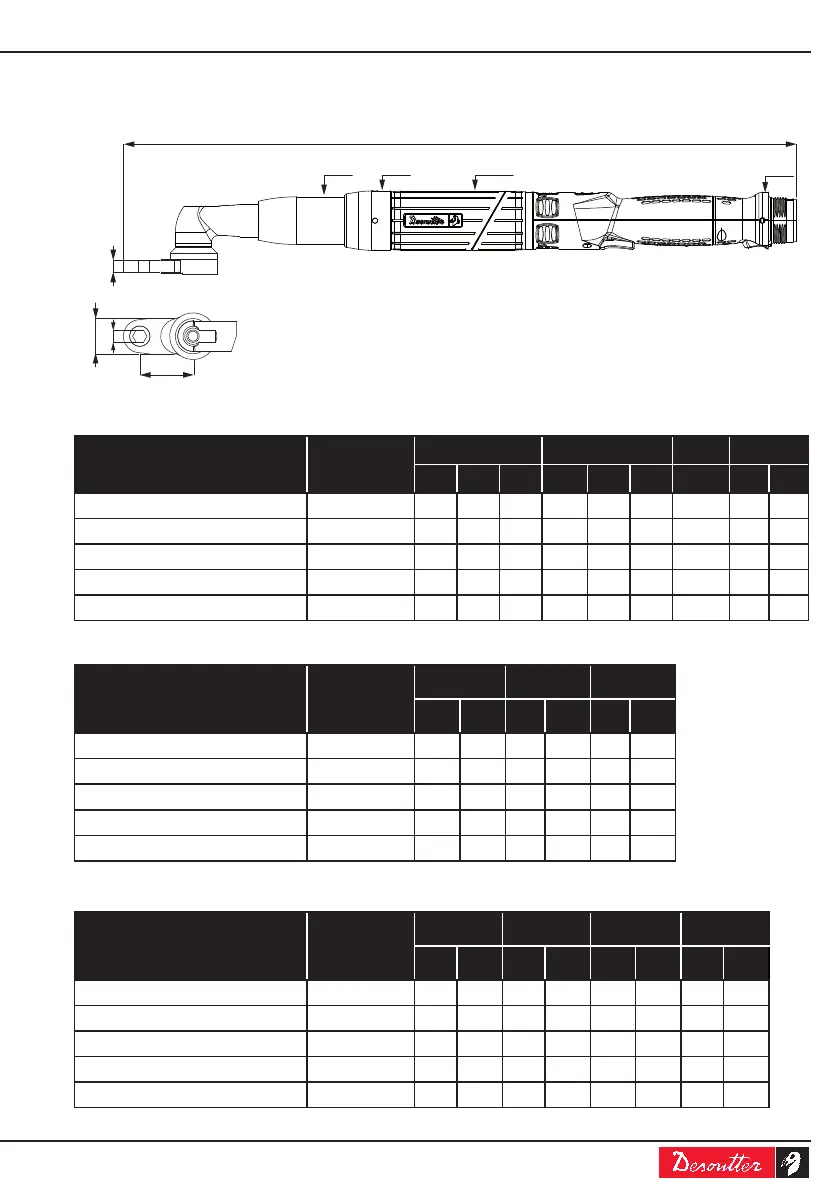

OFFSET CLOSED - ANGLE HEAD
L
Ø41Ø45.7ØAØB
C
A
B
A/F
