Model Part number
Torque (Nm) Torque (ft.lb) Speed Weight
Nom Min Max Nom Min Max rpm kg lb.
EAD15-1300-OE12-L44-H12-W32 6151658300 12 5 15 8.8 3.7 11.1 1260 2.1 4.6
EAD18-1300-OE13-L51-H11-W38 6151658310 15 5 18 11.1 3.7 13.3 1260 2.2 4.8
Model Part number
L Ø A Ø B
mm in. mm in. mm in.
EAD15-1300-OE12-L44-H12-W32 6151658300 540 21.2 46 1.81 37 1.46
EAD18-1300-OE13-L51-H11-W38 6151658310 552 21.7 46 1.81 37 1.46
Model Part number
A B C D A/F
mm in. mm in. mm in. mm in. mm in.
EAD15-1300-OE12-L44-H12-W32 6151658300 12 0.47 32 1.26 62.8 2.47 8 0.31 12 0.47
EAD18-1300-OE13-L51-H11-W38 6151658310 11 0.43 38 1.49 73.0 2.87 8 0.31 13 0.51

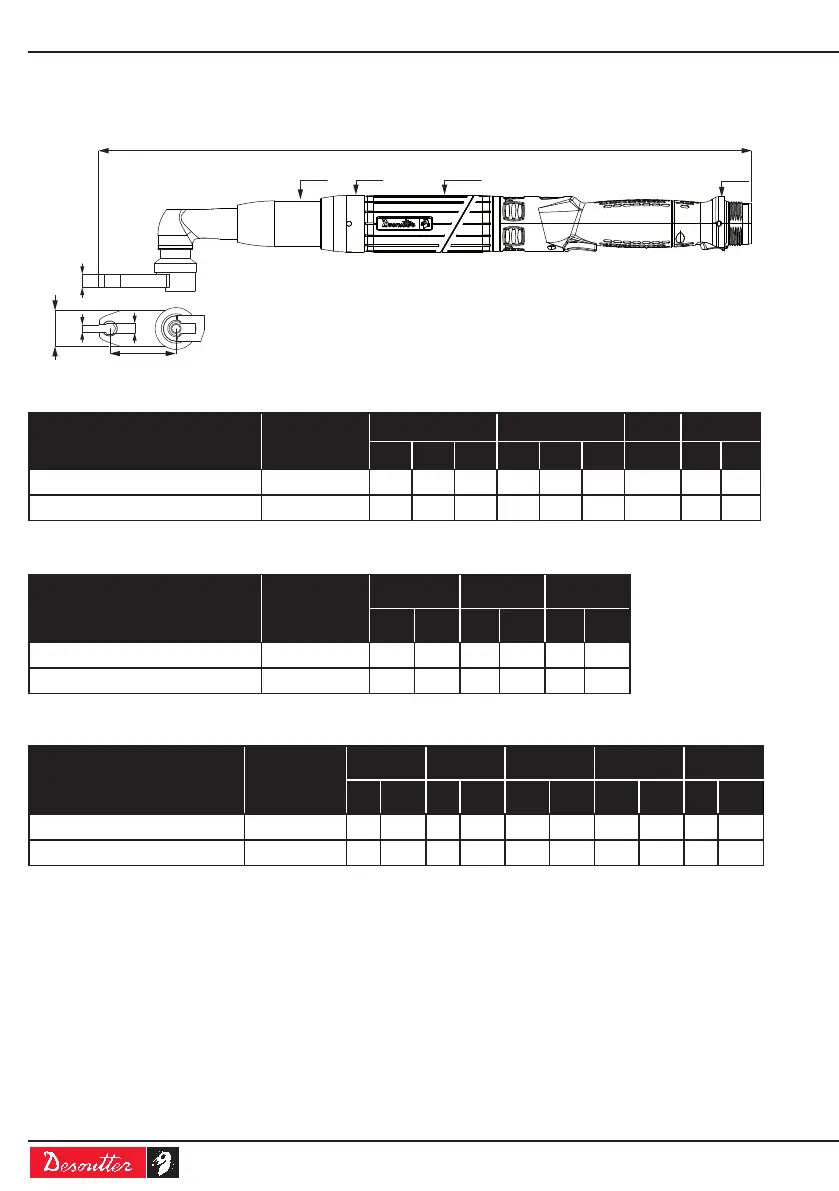

OFFSET OPEN - ANGLE HEAD
L
Ø41Ø45.7ØAØB
C
B
A/F
D
A
