Desoutter EAD - Page 7

6159932570_09
7 / 10404/2014
Model Part number
Torque (Nm) Torque (ft.lb)
Speed
(rpm)
Weight
Nom Min Max Nom Min Max kg lb
EAD50-900-HAD 6151658770 45 8 50 33.2 5.9 40.6 900 1.8 3.96
EAD70-700-HAD 6151658780 65 12 70 47.9 8.8 51.6 700 2 4.4
EAD105-500-HAD 6151658790 90 20 105 66.4 14.8 77.4 500 2.4 5.29
Model Part number
ØA ØB C D
mm in. mm in. mm in. mm in.
EAD50-900-HAD 6151658770 46 1.81 37 1.46 36.5 1.48 28 1.10
EAD70-700-HAD 6151658780 58 2.28 41 1.61 52 2.05 35 1.38
EAD105-500-HAD 6151658790 58 2.28 48 1.89 46 1.81 40 1.57
Model Part number
H L
mm in. mm in.
EAD50-900-HAD 6151658770 61.6 2.42 532 20.94
EAD70-700-HAD 6151658780 90 3.54 550 21.65
EAD105-500-HAD 6151658790 88 3.46 567 22.32

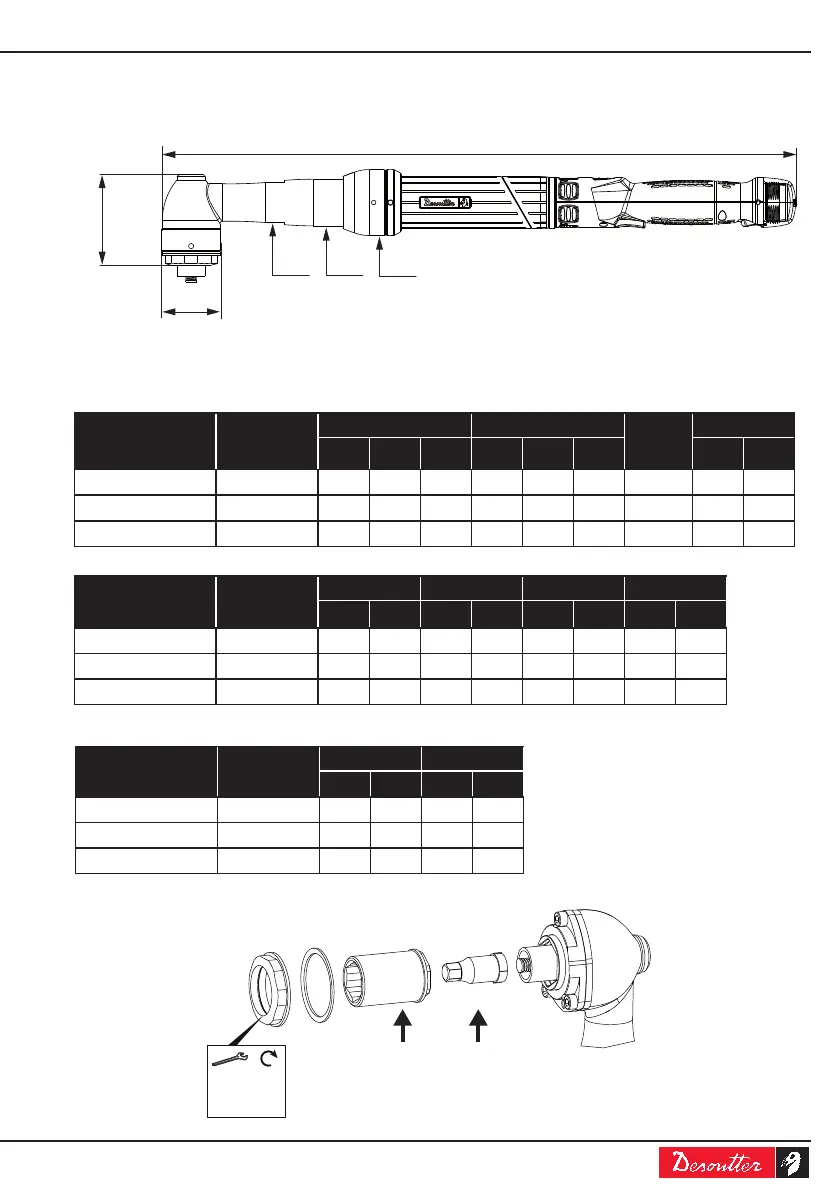

ØA
ØB
ØD
L
C
H
EAD-HAD
25 Nm
with socket
blocked
Socket and bit not supplied
