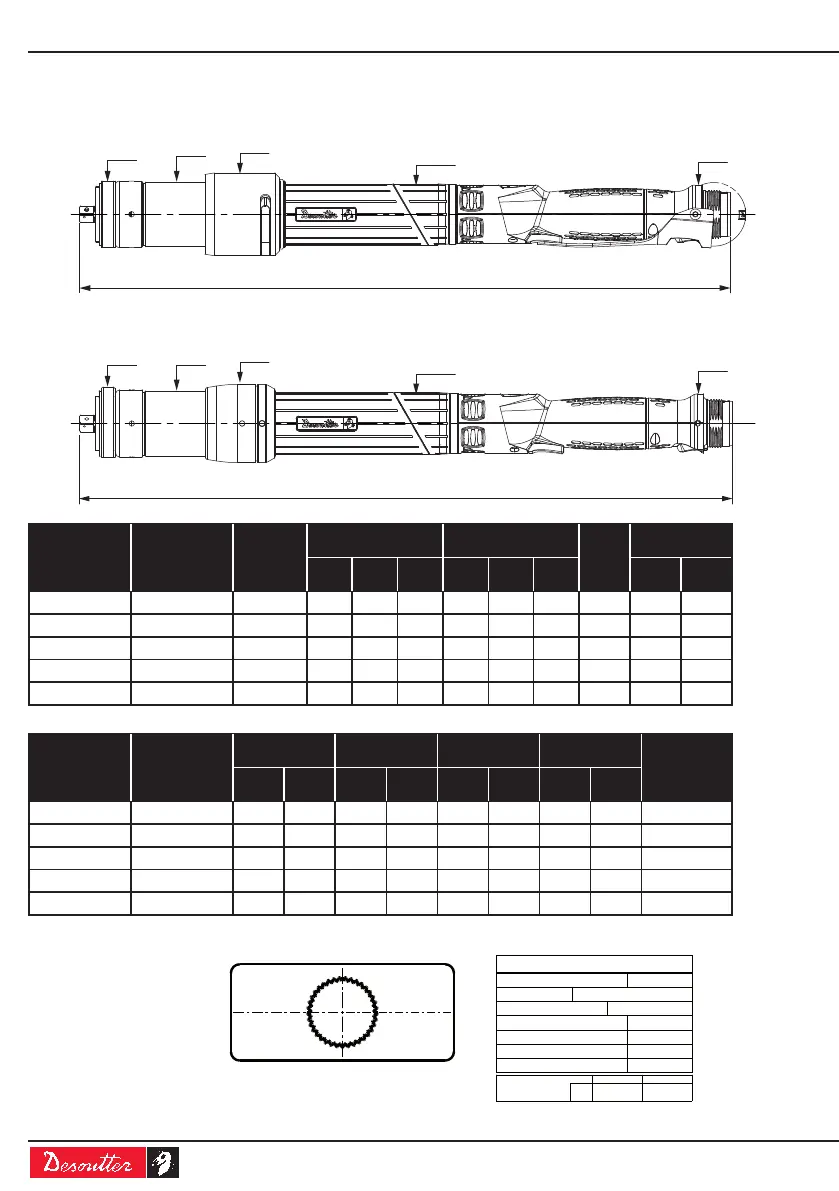

EID
Model Part number
Square
size
(inch)
Torque (Nm) Torque (ft.lb)
Speed
(rpm)
Weight
Nom Min Max Nom Min Max kg lb
EID25-1200 6151656140 Sq. 3/8 20 3 25 14.8 2.2 18.4 1200 1.2 2.64
EID32-900 6151656150 Sq. 3/8 30 5 32 22.1 3.7 23.6 900 1.2 2.64
EID44-1200 6151656160 Sq. 3/8 40 7 44 29.5 5.2 32.5 1200 1.95 4.29
EID65-900 6151656170 Sq. 1/2 60 10 65 44.3 7.4 47.9 900 1.95 4.29
EID75-800 6151656180 Sq. 1/2 70 20 75 51.6 14.8 55.3 800 1.95 4.29
Model Part number
Ø A Ø B Ø C L
Front start
mm in. mm in. mm in. mm in.
EID25-1200 6151656140 46 1.81 37 1.46 60 2.36 430 16.92 X
EID32-900 6151656150 46 1.81 37 1.46 60 2.36 430 16.92 X
EID44-1200 6151656160 62 2.44 48 1.89 54 2.13 489 19.25 X
EID65-900 6151656170 58 2.28 48 1.89 54 2.13 489 19.25
EID75-800 6151656180 58 2.28 48 1.89 54 2.13 489 19.25
L
Ø44
Ø45.7
ØA
ØB
ØC
Ø44
Ø45.7
ØA
ØB
ØC
EID25-1200 / EID32-900 / EID44-1200
EID65-900 / EID75-800
L
Optional accessory:
Mounting plate for
EID44/65/75 models
part no. 6155960100
SPLINE DATA
Number of teeth
Type of gear
Standard-Form
Quality Class ISO:
Nominal pressure angle
20°
Addendum modif. coeff.
ISO
ISO 53/FIG:1/Table:2
Module (mm)
Not Applicable
Measurement over:
2 Rollers "Md"
37
0
1.65
34.778
34.848
1
mm
Mini:
Maxi:
mm
mm
Roller Diameter:
1 Rollers "Mr"
17.405
17.440
mm
mm
Thickness: 12 mm
