7 95-87513.1
Device Status Options Description
Normal Power is applied and no faults are occurring.
Quick Alarm Quick fire alarm signal generated.
UV Pre-Alarm UV sensor in pre-alarm condition.
UV Alarm UV sensor generating fire alarm signal.
Manual UV Active
Manual
o
i
test on UV sensor in progress.
Auto UV Active
Automatic
o
i
test on UV sensor in progress.
UV
o
i
Cal Active
o
i
calibration of UV sensor in progress.
Warm-Up Detector in power-up time delay mode.
Fire Alarm A fire condition has been detected (both UV and IR in alarm).
IR Pre-Alarm IR sensor in pre-alarm condition.
IR Alarm IR sensor generating fire alarm signal.
Man IR Active
Manual
o
i
test on IR sensor in progress.
Auto IR Active
Automatic
o
i
test on IR sensor in progress.
IR
o
i
Cal Active
o
i
calibration of IR sensor in progress.
0-20 Value Signal level of 4-20 mA output (signal is displayed even if detector has no 4-20 mA output).
Faults Refer to the Troubleshooting section
Fire Relay Fire relay energized.
Fault Relay Fault relay energized.
Aux. Relay Auxiliary relay energized.
UV Counts Per Second Indication of how much UV is being detected.
IR Energy Indication of how much IR is being detected.
Note: All information displayed on this window is read only. X5200 window shown. X9800 and X2200 use the same with with the appropriate fields and indicators active.

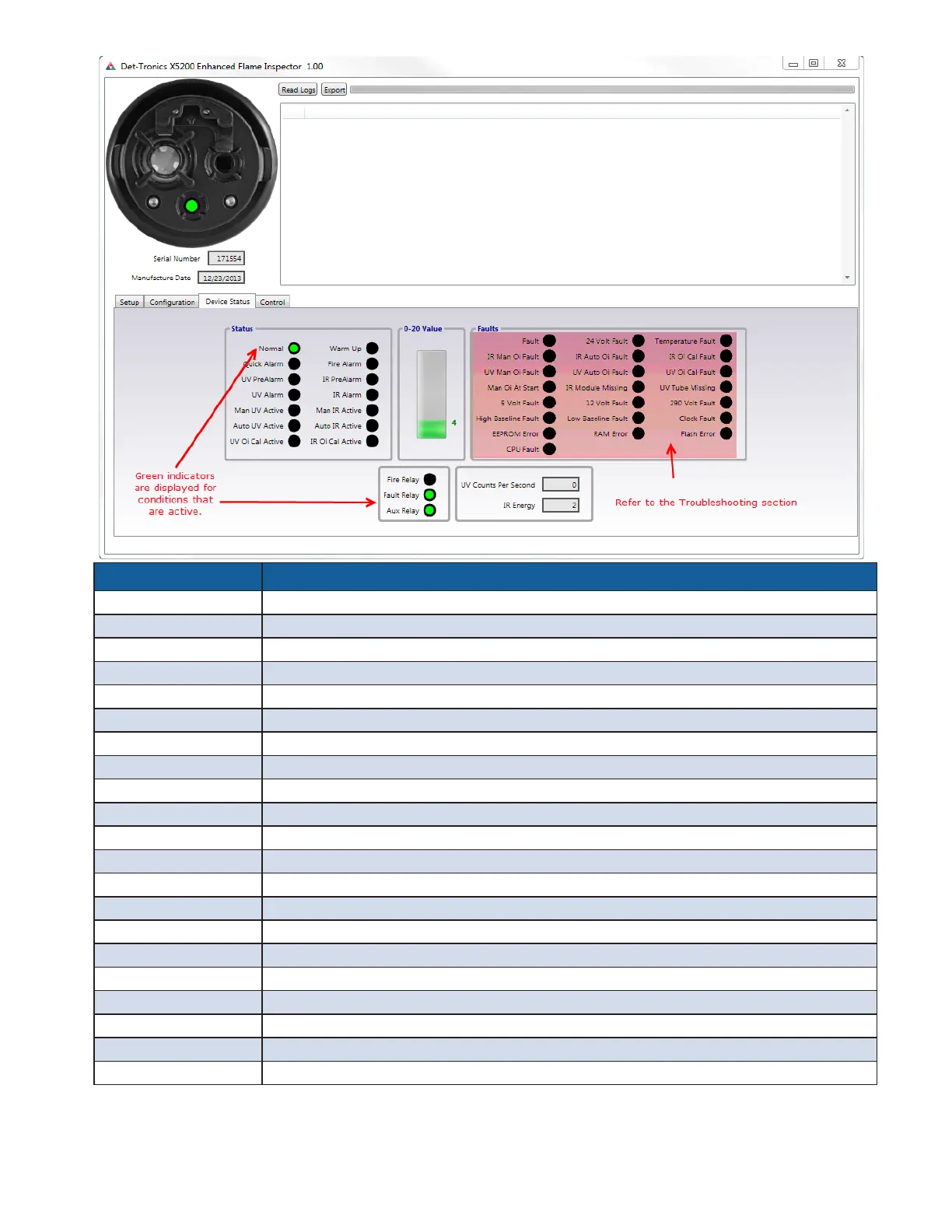

Figure9— X5200, X2200, X9800 Device Status tab
