6

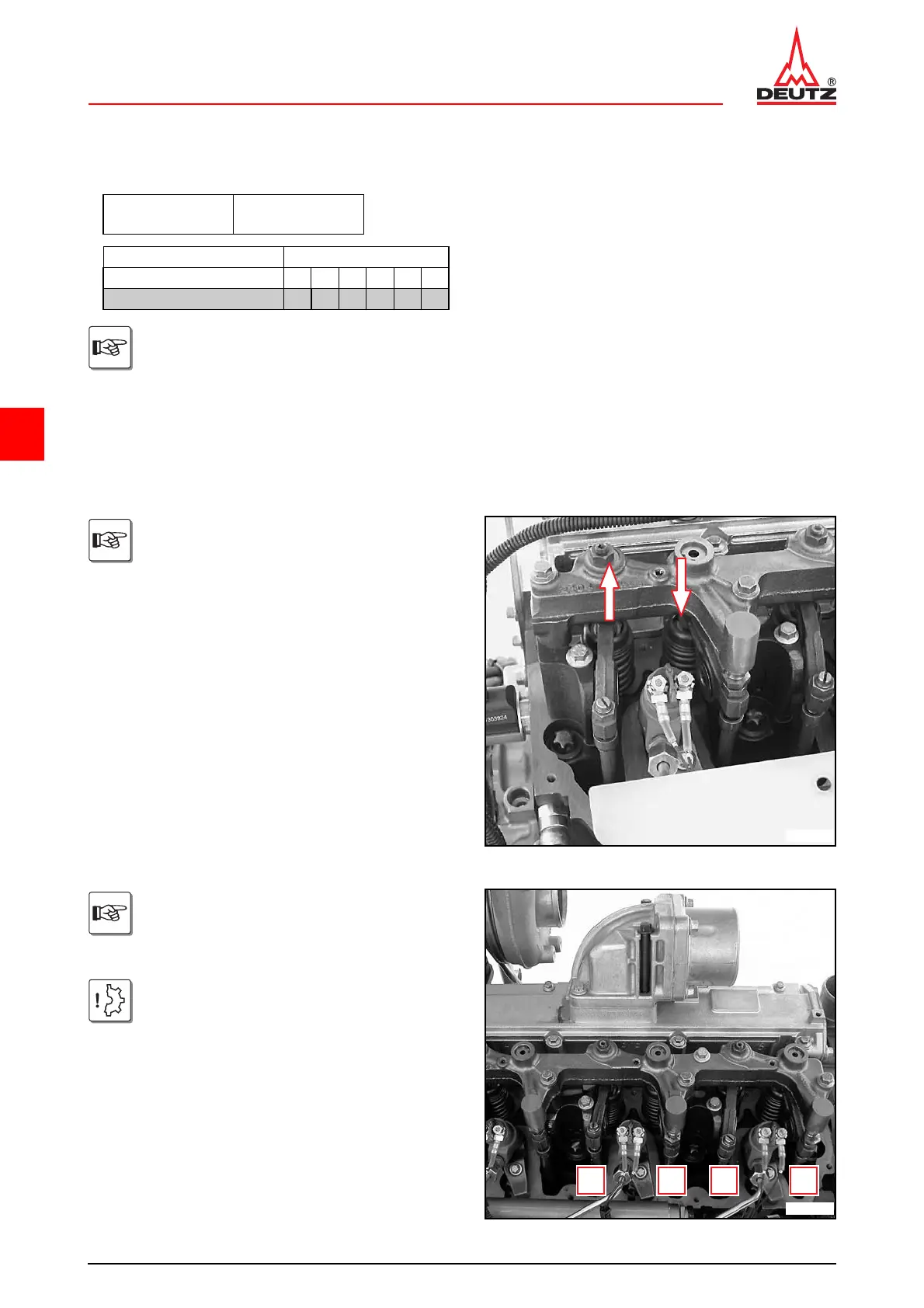

Control parts
TCD 2013 2VW 11-01-01
Setting valve and control piston clearance
– 6-cylinder
Ignition
sequence:
1-5-3-6-2-4
Valves Cylinders
overlap 153624
set to 6 2 4 1 5 3
Valve overlap: Outlet valve is not yet
closed, inlet valve begins to open.
When the inlet valve is fully open, the out
-
let valve opens briefly approx. 2 mm. This
is not the valve overlap!
Valve overlap means:
The inlet valve starts opening,exhaust
valve closes.
Arrangement of the inlet and exhaust val
-
ves.
IN = inlet valve
EX = exhaust valve
Attention!
Different version of the setting screws:
slotted screws or hexagon socket head
screws.
