© 02/2010 OBJ_DOKU-21789-001.fm
3/10
6

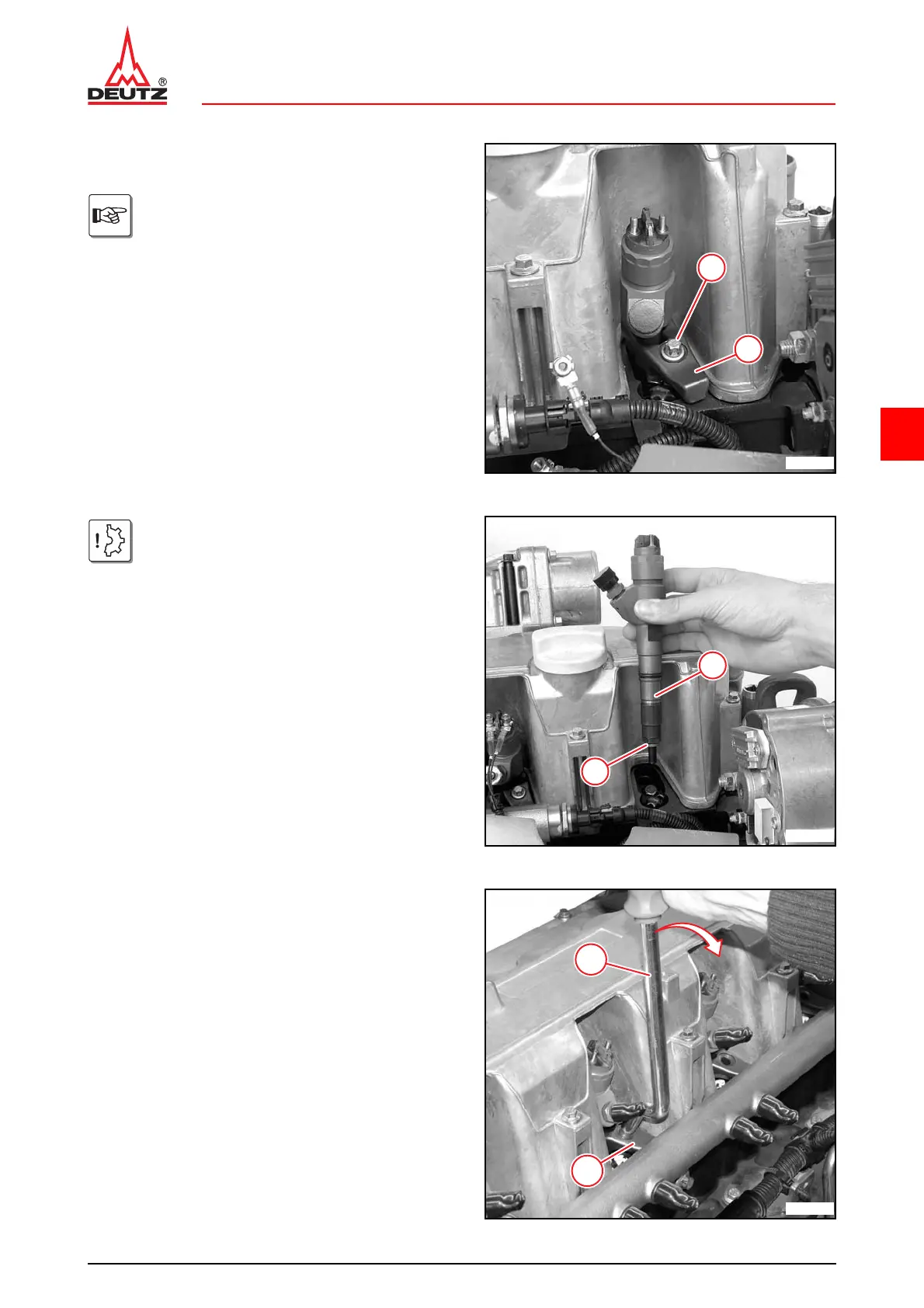

Injector
TCD 2013 2V W 19-01-01
● Unscrew screw (1).
● Remove clamping shoe (2).
When removing the injectors on
cylinders 1 to 5, the clamping shoe can
only be removed together with the injector.
● Pull out injector (1) and sealing ring (2).
Attention!
Remove residue paint and particles of dirt
from the injector before removing it.
Carefully clean the area around the injec
-
tor.
Removing a tightly fixed injector
● Insert lever tool (1) in the clamping claw (2).
● Loosen the injector by pulling the lever in the direc
-
tion of the arrow.
● Remove injector and sealing ring.
