Fan drive
TCD 2013 2V W 39-01-01
Removing and installing the belt tensioner
(V-rib belt)
Standard tools:
– Retaining pin, diameter 6 mm
Removing the belt tensioner

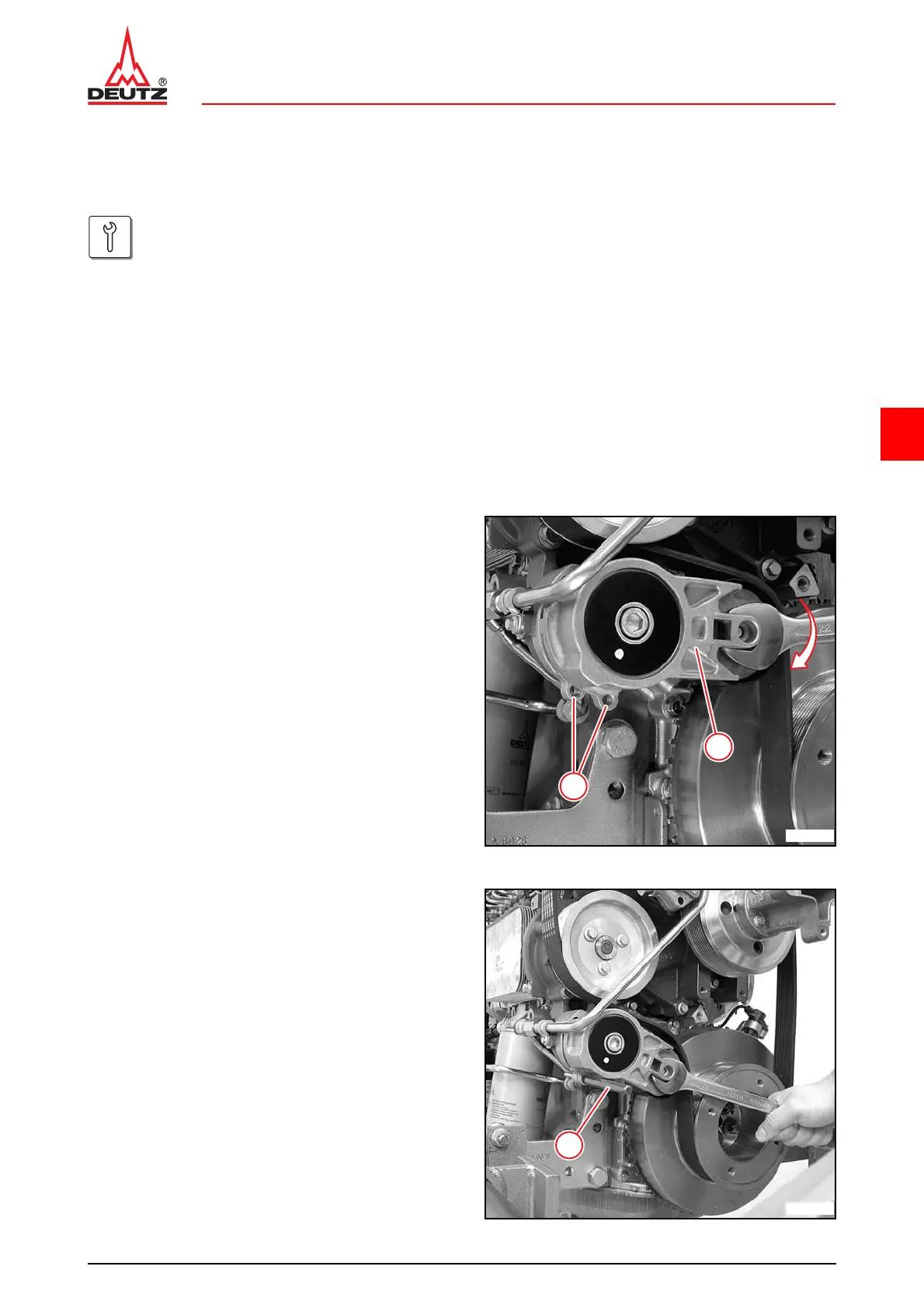

● Tighten the belt tensioner (1) in the direction of the
arrow until the bores (2) are in line.
1
2
© 42852-0
● Insert holding pin (1).
1
© 42837-0
