6
Generator
TCD 2013 2V W 44-02-01
Removing and installing the generator
(V-belt drive)
Standard tools:
– V-belt tension measuring
device 8115
– Operation manual
Attention!
Only test / tighten / renew V-belts when the
engine is not running.
The V-belt tension of new V-belts must be
checked after they have been running for
15 minutes.

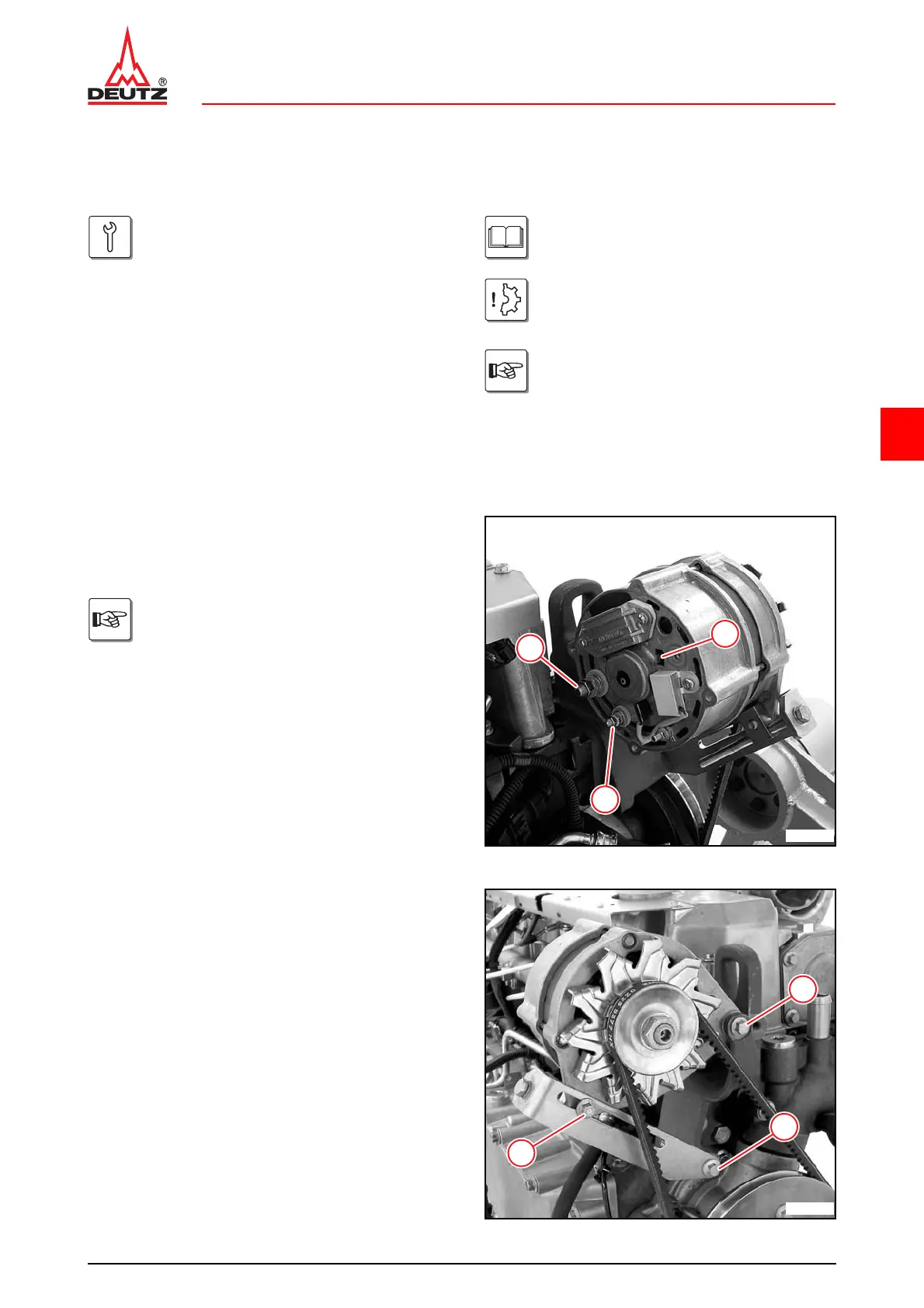

Removing the generator
● Disconnect the battery's negative terminal.
● Remove cable from generator.
Note assignment!
- (1) = terminal W
- (2) = terminal D+
- (3) = terminal B+
● Loosen screws (1).
