DeVi-Stairlifts UP - Installation

9
Measuring the rail.
Download the manual ‘UP webshop manual’ from www.upwebshop.com.
Go to the part webshop, login, click on Downloads and there you can find the
manual. Or click HERE if you are reading this manual digital.
Then follow the steps for measuring the stairs as described. When filling in

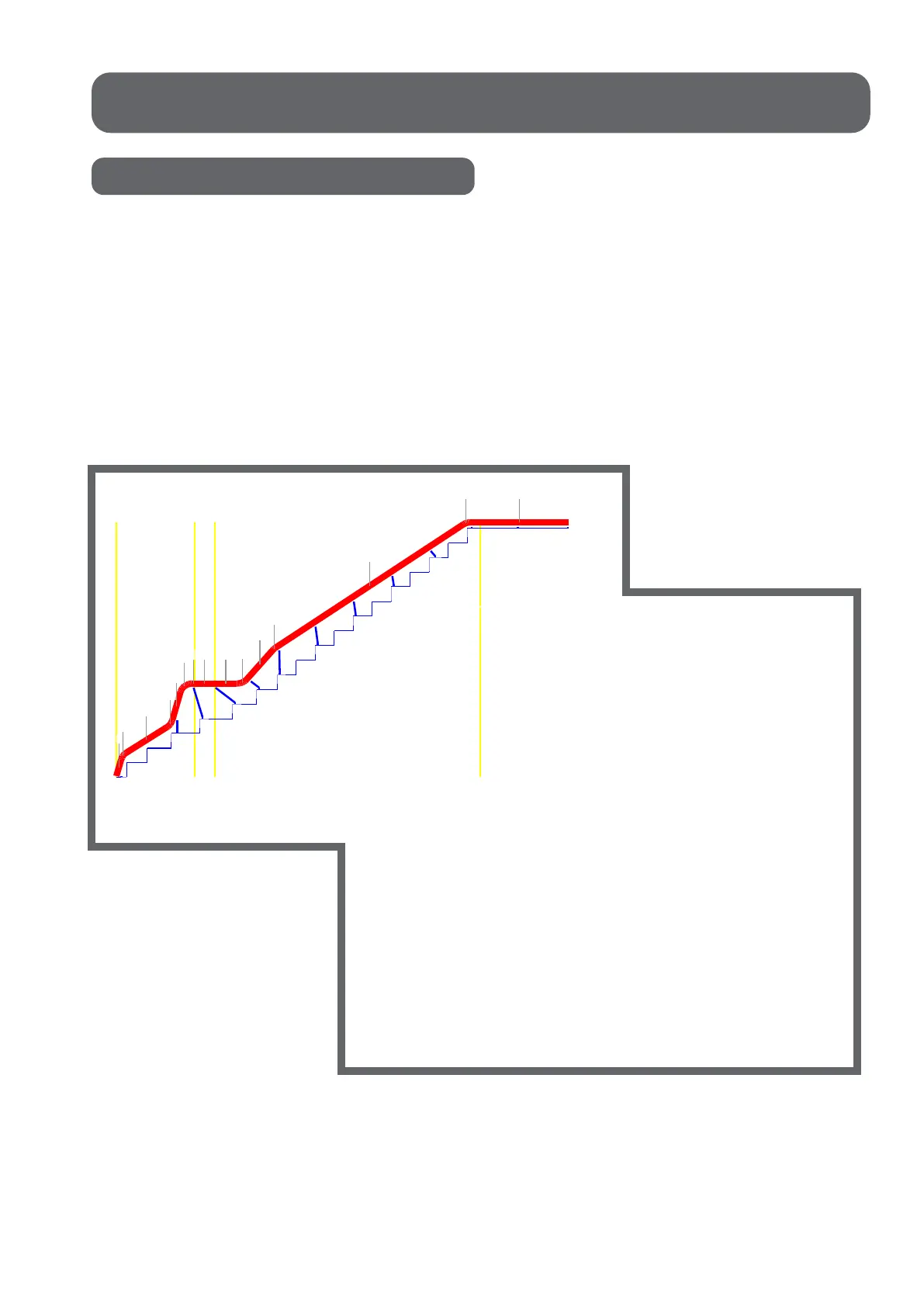

these measurements the tool will provide you with a drawing. An example of such
a drawing can be seen in figure 1. Use this drawing as a basis for the installation
of the rail. For example to get the lengths of the straight parts and the amount of
turn segments required for the turns.
(fig. 1)
The installation of the stairlift can be done in different phases. These
phases are installing the rail, installing the charging station and finally
installing the carriage.
install-drawing-1-f12bd63ad3
SIDEVIEW
R1
B1
R2
B2
R3
B3
R4
B4
R5
B5
R6
B6
R7
B7
R8
S1
S2
S3
S4
S5
S6
S7
S8
S9
S10
S11
S12
S13
Page 2 of 4
install-drawing-1-f12bd63ad3
Item Name Size Description
R1 Rail 216mm AB010000(l=216)
B1 Bend 40° AB070000(8x) + AB030000
R2 Rail 584mm AB010000(l=584)
B2 Bend 40° AB070000(8x) + AB030000
R3 Rail 366mm AB010000(l=366)
B3 Bend 75° AB070000(15x) + AB030000
R4 Rail 25mm AB010000(l=25)
B4 Bend 90° AB070000(18x) + AB030000
R5 Rail 264mm AB010000(l=264)
B5 Bend 50° AB070000(10x) + AB030000
R6 Rail 490mm AB010000(l=490)
B6 Bend 15° AB070000(3x) + AB030000
R7 Rail 2708mm AB010000(l=1850 + l=858) + AB020000
B7 Bend 35° AB070000(7x) + AB030000
R8 Rail 1163mm AB010000(l=1163)
S1 Support 0mm AB040000
S2 Support 383mm AB040000 + AB050000 + AB060000(3x)
S3 Support 144mm AB040000 + AB060000
S4 Support 293mm AB040000 + AB050000 + AB060000(2x)
S5 Support 127mm AB040000 + AB060000
S6 Support 286mm AB040000 + AB050000 + AB060000(2x)
S7 Support 0mm AB040000
S8 Support 218mm AB040000 + AB060000(2x)
S9 Support 166mm AB040000 + AB050000 + AB060000
S10 Support 114mm AB040000 + AB060000
S11 Support 80mm AB040000 + AB060000
S12 Support 0mm AB040000
S13 Support 0mm AB040000
X Rack 7400mm AB000600(l=1850mm 4x)
X Charging cable 12000mm AB080000(l=6000mm 2x)
Page 3 of 4
