Follow the steps below to mount the thermostat:

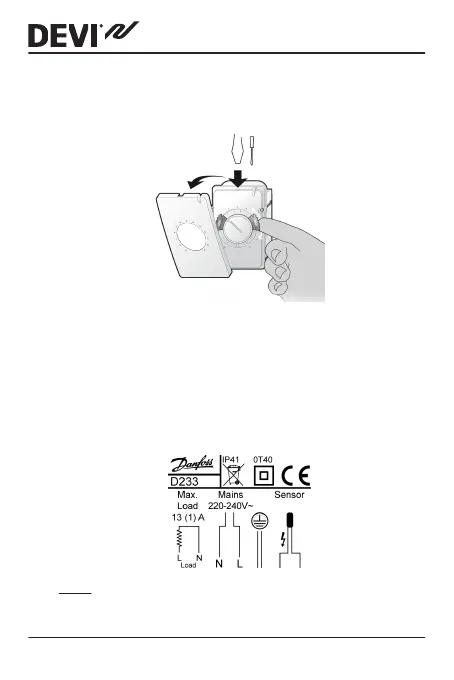

1. Open the thermostat:
▪
Detach the front cover by inserting a small screw-
driver in the hole on top of the thermostat and lifting
the cover outwards.
▪
Loosen the two screws and carefully detach the unit.
2. Connect the thermostat according to the connection
diagram.
Note: Always install the floor sensor in a conduit in the
floor.
DEVIreg™ 233
8 Installation Guide
