OPERATION
NOTE: Become familiar with the controls and features described on these pages before
operating your unit.
Detachable
Handle for
Storage
Starter
Grip
Throttle
Control
Lever
Choke
Control
Air
Cleaner
Fuel
Filler
Cap
6 HP B&S
Engine

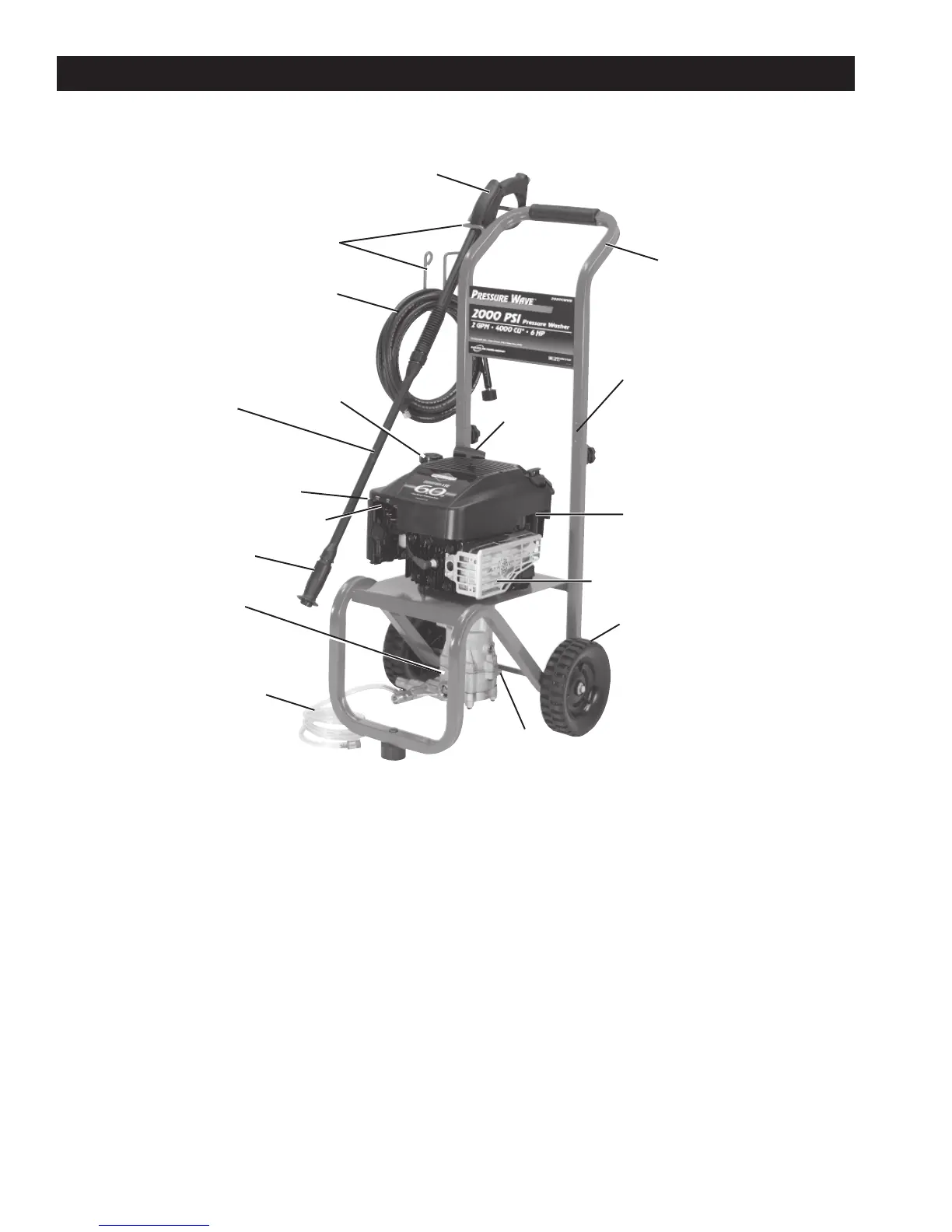

BASIC ELEMENTS OF A PRESSURE
WASHER
DAPC High Pressure Pump: Increases the pressure
of the water supply to 2000 psi @ 2 gpm.
6 HP Briggs & Stratton Engine: Drives the high
pressure pump.
High Pressure Hose: Carries the pressurized water
from the pump to the gun and wand.
Spray Gun: Connects with multi-reg wand to control
water flow rate, direction, and pressure.
Multi-Reg Wand with nozzle: Has a high and low
pressure setting along with a 25° fan and narrow jet
stream.
Chemical Hose: Allows cleaners or cleaning solvents
to be mixed with the pressurized water stream. See
How To Siphon Chemicals/Cleaning Solvents in
Operation section of this manual.
Thermal Relief Valve: A safety device that protects
the pump from overheating. When water inside the
pump reaches a specified temperature, the thermal
relief valve opens and discharges the heated water
from the pump.
Heavy Duty
Steel Frame
DAPC High
Pressure
Pump
Nozzle
Thermal
Relief
Valve
Spray Gun
1/4" X 25 ft. High
Pressure Hose
Gun/
Hose
Holder
Chemical
Hose With
Filter
Semi-
Pneumatic
Tires
Multi-Reg Wand
To Next Page
