DeVilbiss AG361 - Page 8

EN
1
2
3
4
5
6
P1
P3

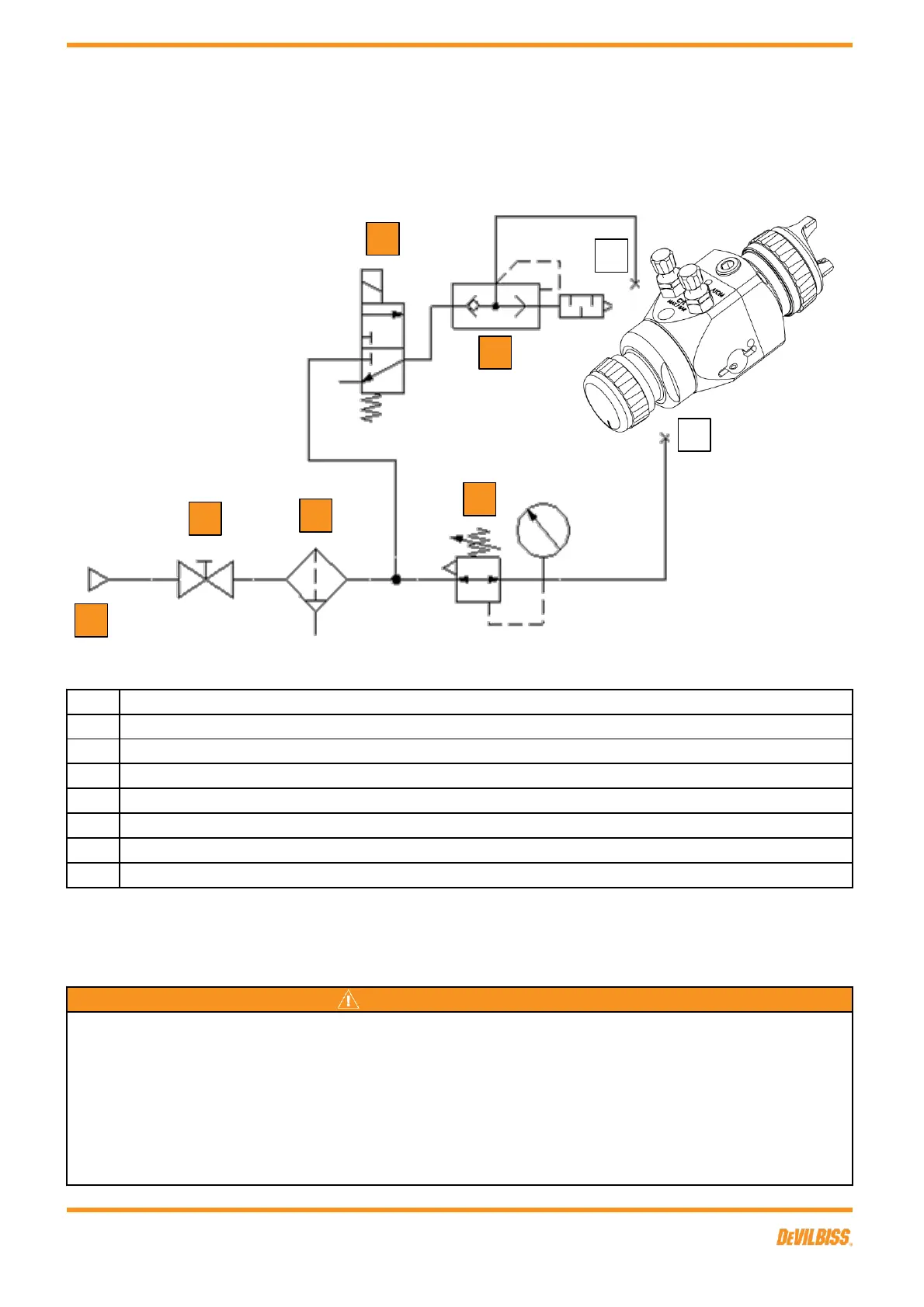

TYPICAL AIR CONNECTION SCHEMATIC
3/2 solenoid valve, normally closed
Compressed air take-off
Shut-off valve
Air filter
Air regulator & gauge
The spray gun must be earthed to dissipate any electrostatic charges which may be created by fluid
or air flows. This can be achieved through the spray gun mounting, or conductive air/fluid hoses.
Electrical bond from the spray gun to earth should be checked and a resistance of less than 10⁶ Ohms
is required.
Quick exhaust valve & silencer
WARNING
CAP - 1/4" G
CYL - 1/8" G
1
2
3
4
5
6
P3
P1
SB-E-2-642 R3.1
8/24
