DeVilbiss GFG-517 - Parts List

EN
SB-2-179-G (8/2015)4 / 8

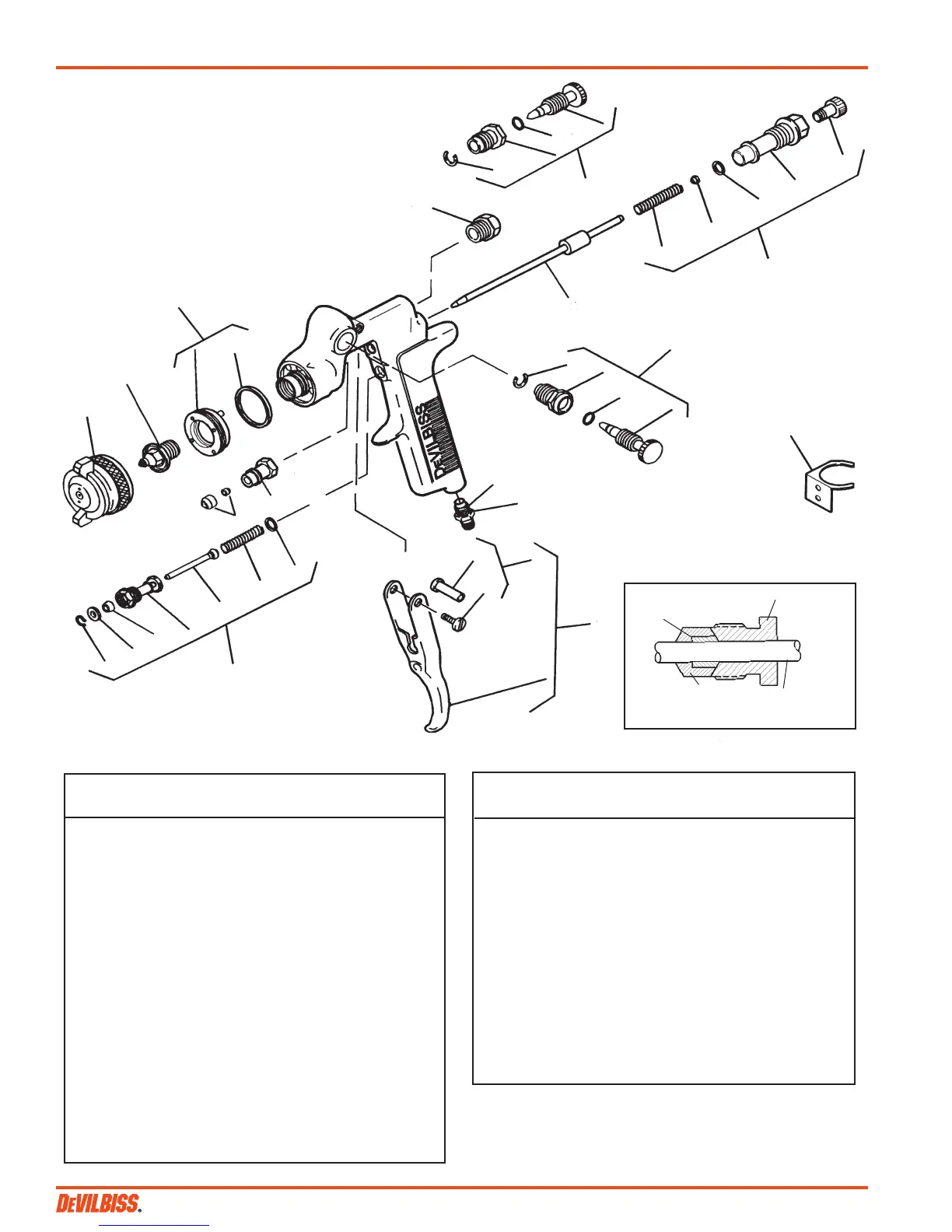

PARTS LIST
Ref. Individual
No. Part No. Description Parts Req.
1 See Chart 1 Air Cap & Retaining Ring 1
2 See Chart 2 Lapped Fluid Tip and Needle 1
• 3 GTI-33-K5 Seal Kit (Kit of 5) 1
4 GTI-425 Baffle Assembly 1
•+ 5 JGV-463-K3 Fluid Needle Packing (Kit of 3) 1
6 34411-122-K10 Fluid Needle Packing Gland 1
(Kit of 10)
• 7 —— Snap Ring 1
• 8 —— Washer 1
•+ 9 —— U Cup 1
• 10 —— Air Valve 1
• 11 —— Spring 1
•+ 12 JGS-72-K10 Gasket (Kit of 10) (PTFE) 2
13 JGS-449-1 Air Valve Assembly 1
• 14 —— Screw 1
15 —— Trigger Bearing Stud 1
16 JGS-478 Stud and Screw Kit 1
(Kit includes 3 studs & 5 screws)
Detail Ref. No. 5 - Two piece packing
covered by U.S. Patent No. 5,209,501.
+ Tapered edge faces out towards packing
nut.
+Inner PTFE Piece
Fluid Packing Nut
Fluid Needle
Outer
U.H.M.W.
Poly. Piece
Ref. Individual
No. Part No. Description Parts Req.
17 JGS-477-1 Trigger, Stud and Screw Kit 1
(Kit includes 1 each)
18 P-MB-51 Air Inlet Connector 1/4" NPS(M) 1
19 GFG-413-2 Spreader Adjustment Valve 1
• 20 —— Retaining Ring 1
•+ 21 —— O-ring (PTFE) 1
• 22 MBD-19-K10 Fluid Needle Spring (Kit of 10) 1
• 23 —— Spring Pad (Included with #22) 1
24 —— Gun Body Bushing 1
25 GTI-414 Fluid Needle Adjusting Screw 1
26 JGA-4041 Bushing, Spring & Knob Kit 1
27 6000-12 Plug 1
28 GFG-6 Gun Hook 1
• KK-5025 Gun Repair Kit includes a quantity of necessary parts
and should be kept on hand for service convenience.
+ KK-5036 Soft Gun Repair Kit includes a quantity of necessary
parts.
Suffixes - K5, K10 designate kits of multiple parts.
(Example) GTI-33-K5 is a kit of 5 seals.
1
2
Torque to
12-15 ft. lbs.
4
3
6
12
11
10
9
8
7
13
15
14
16
17
18 (1/4 NPS(M)
*Apply Loctite #242
(Blue) to threads and
torque to 15 ft. lbs.
20
21
19 (Spreader
Adjustment)
28
2
22
26
23
12
24
25
19
(Accessory)
21
20
27
5
See GTI-33 Baffle Seal
Replacement instructions
on page 3.
